Rear Suspension - A05mh42ab/Ag/Ah replacement parts for 2005 Polaris Sportsman 400 (A05MH42AB)

OEM Parts Polaris 2005 Polaris Sportsman 400 (A05MH42AB) Rear Suspension - A05mh42ab/Ag/Ah

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, FLANGE Part #: 7518341 Required per assembly: 6 Currently Not Available
2	NUT Part #: 7542324 Required per assembly: 6 Currently Not Available
3	WASHER Part #: 7555939 Required per assembly: 2 Currently Not Available
4	BUSHING-STABILIZER TUBE BLK Part #: 5438901 Required per assembly: 2 Currently Not Available
5	BAR-STABILIZER, TUBE, E-COAT Part #: 5334114-329 Required per assembly: 1 Currently Not Available
6	ARM, STABILIZER, BAR, BLACK Part #: 1543119-067 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7517231 Required per assembly: 4 Note: Screw Currently Not Available
8	WASHER Part #: 7555761 Required per assembly: 8 Note: Washer Currently Not Available
9	BUSHING, STAB.LINK Part #: 5432598 Required per assembly: 8 Note: Bushing Currently Not Available
10	ROD-LINKAGE, STABILIZER Part #: 5020827 Required per assembly: 2 Note: Rod, Linkage, Stabilizer Currently Not Available
11	CARRIER, WHEEL, BEARING Part #: 5134206 Required per assembly: 2 Currently Not Available
12	BUSHING, BEARING, CARRIER Part #: 5632291 Required per assembly: 4 Currently Not Available
13	BUSHING, CONTROL, LOWER Part #: 5438902 Required per assembly: 8 Note: Bushing, Control, Lower ~~$9.99~~ $5.75 - + Add to cart
14	WASHER Part #: 7555740 Required per assembly: 4 Currently Not Available
15	WASHER, LOCK Part #: 7552614 Required per assembly: 4 Currently Not Available
16	SCREW Part #: 7517873 Required per assembly: 4 Note: Bolt ~~$3.99~~ $2.30 - + Add to cart
17	BOLT Part #: 7515415 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
18	NUT-LOCK Part #: 7542439 Required per assembly: 10 Currently Not Available
19	SHOCK, REAR Part #: 7043100 Required per assembly: 2 Note: Shock, Rear Currently Not Available
19	SHOCK-RR, IRS Part #: 7041959 Required per assembly: 2 Currently Not Available
20	CAM, SPRING, ADJUST, 1-3/8 Part #: 5631014 Required per assembly: 2 Note: CAM,SPRING ADJUST,1-3/8 (If built after 10/23/00) Currently Not Available
21	SLEEVE, SHOCK, PROTECTOR Part #: 5433551 Required per assembly: 2 Currently Not Available

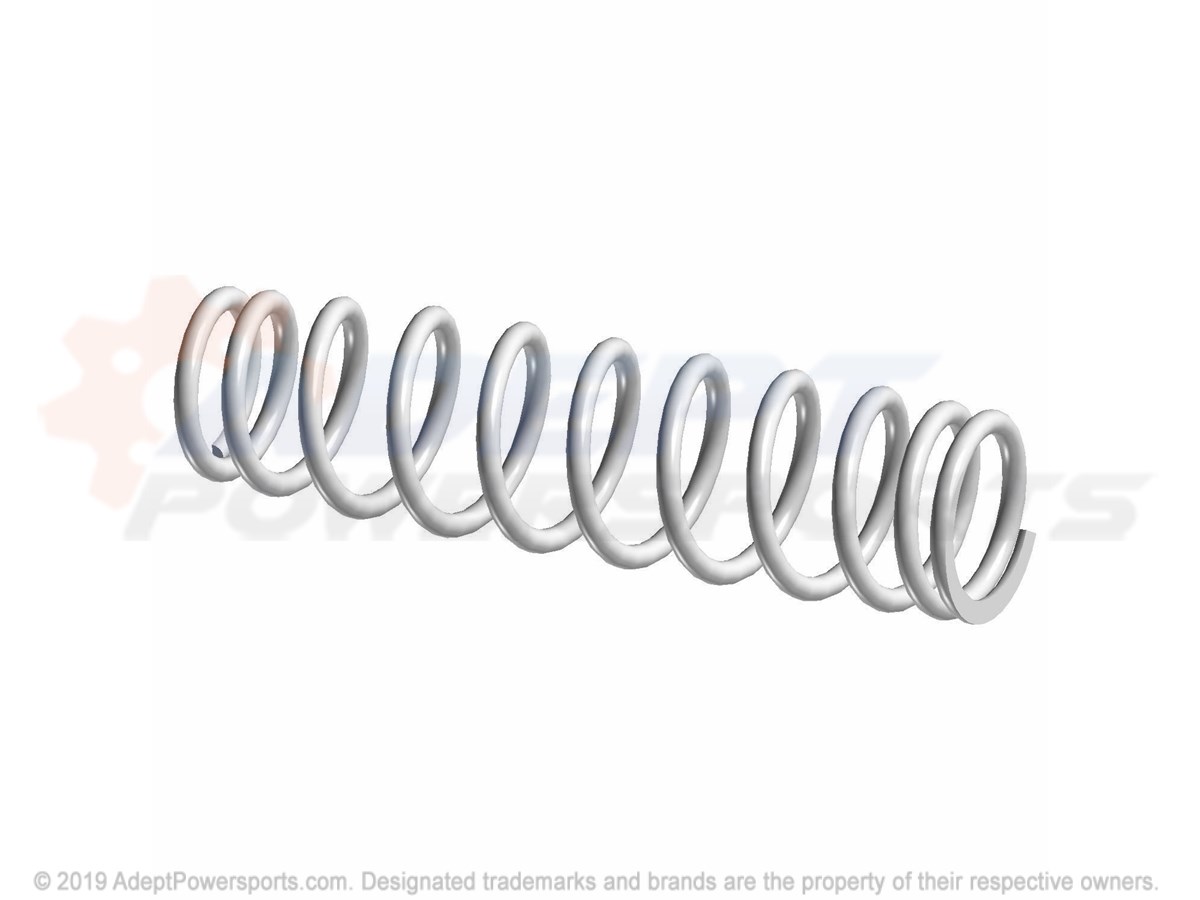

22	SPRING, COMPRESSION, REAR Part #: 7042311-067 Required per assembly: 2 Currently Not Available
22	SPRING, COMPRESSION, REAR Part #: 7043091-067 Required per assembly: 2 Note: Spring, Compression, Rear, Black Currently Not Available
23	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
24	SCREW Part #: 7515433 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
25	BRACKET, A-ARM, PIVOT Part #: 5247345 Required per assembly: 2 Currently Not Available
26	BOLT, FLANGE Part #: 7518364 Required per assembly: 4 Note: Screw, Flange Currently Not Available
27	SHAFT, A-ARM, SHORT Part #: 5020826 Required per assembly: 6 Note: Shaft, A-Arm, Short Currently Not Available
28	ARM, CONTROL, UPPER, RED, LH Part #: 1014320-293 Required per assembly: 1 Note: Arm, Control, Upper, Indy Red, LH Currently Not Available
28	ARM, CONTROL, UPPER, RED, RH Part #: 1014321-293 Required per assembly: 1 Note: Arm, Control, Upper, Indy Red, RH Currently Not Available
29	BUSHING, A-ARM, LONG, GREY Part #: 5436973 Required per assembly: 4 Note: Bushing, A-Arm, Long ~~$10.99~~ $6.33 - + Add to cart
30	WASHER Part #: 7552603 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
31	SCREW Part #: 7512492 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart

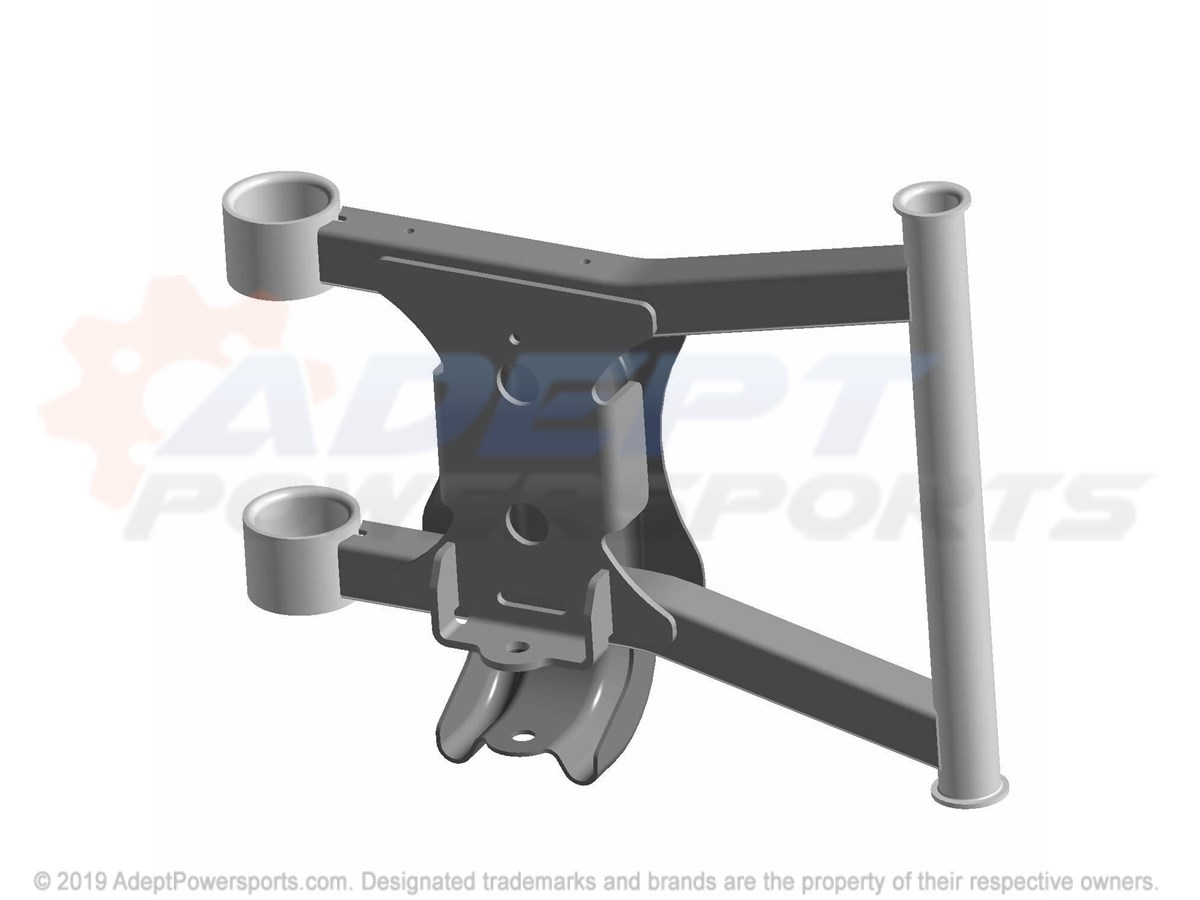

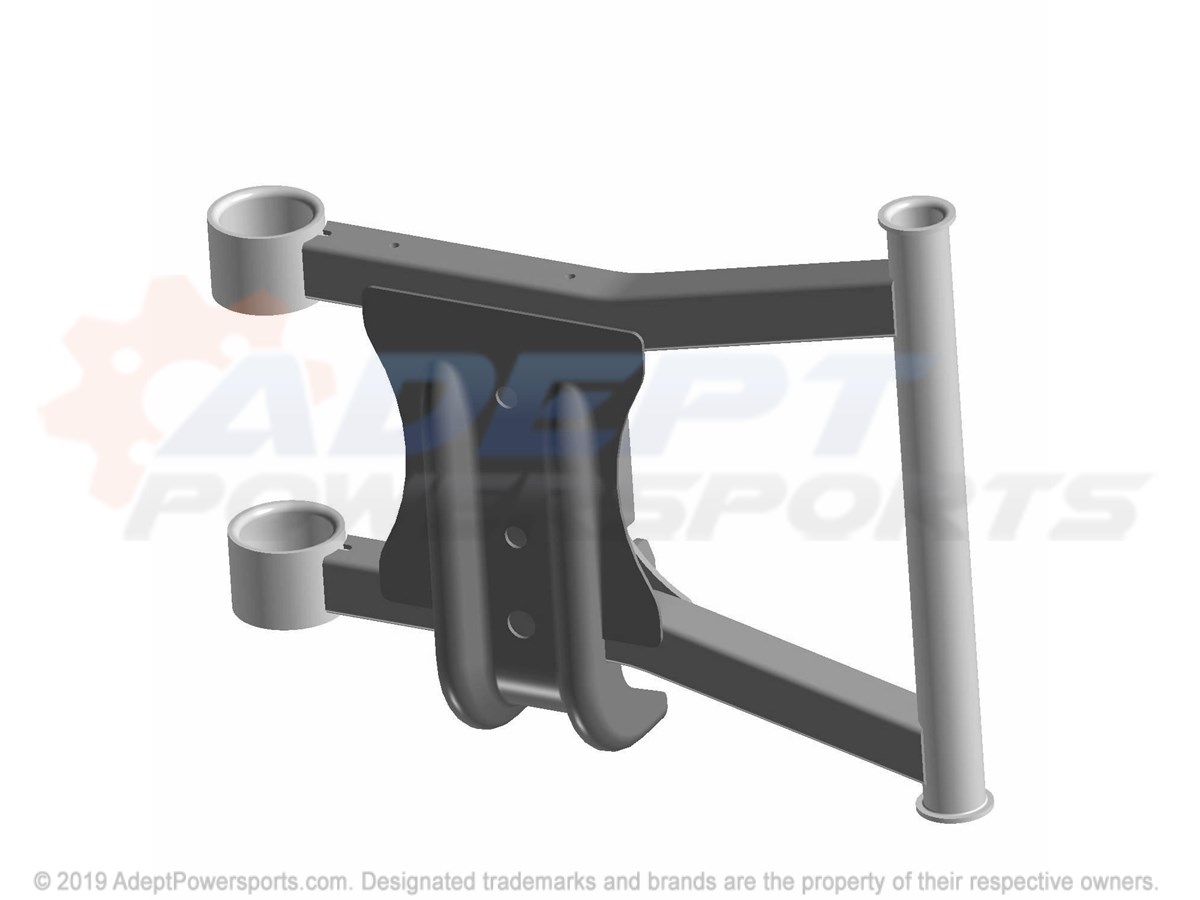

32	ARM, CONTROL, LOWER, RH Part #: 1015889-293 Required per assembly: 1 Note: Control, Lower, Indy Red, RH Currently Not Available
32	ARM, CONTROL, LOWER, LH Part #: 1015888-293 Required per assembly: 1 Currently Not Available
33	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
34	SHIELD, REAR, LH Part #: 5435008-070 Required per assembly: 1 Note: Shield, CV Rear, Black, LH Currently Not Available
34	SHIELD, REAR, RH Part #: 5435009-070 Required per assembly: 1 Note: Shield, CV Rear, Black, RH Currently Not Available
35	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
36	SHAFT, A-ARM Part #: 5133806 Required per assembly: 2 Currently Not Available
37	BOLT Part #: 7515472 Required per assembly: 6 Currently Not Available
38	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 12 Currently Not Available
39	SUPPORT, STABILIZER Part #: 1541802-067 Required per assembly: 1 Note: Support, Stabilizer, Black Currently Not Available
