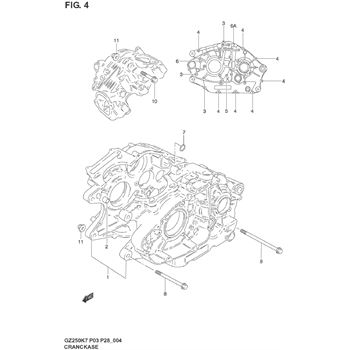

Crankcase replacement parts for 2005 Suzuki GZ250

OEM Parts Suzuki 2005 Suzuki GZ250 Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1-1	CRANKCASE SET Part #: 11300-13F03 Required per assembly: 1 Note: MODEL K4/K5/K6/K7 Not Available
1-2	CRANKCASE SET Part #: 11300-13F03 Required per assembly: 1 Note: MODEL K4/K5/K6/K7 Not Available
2	PIN Part #: 04211-13189 Required per assembly: 2 $2.64 $2.38 - + Add to cart
3	BOLT Part #: 01547-06357 Required per assembly: 3 $84.62 $72.35 - + Add to cart
4	BOLT Part #: 01547-06457 Required per assembly: 7 $2.89 $2.60 - + Add to cart
5	BOLT Part #: 01547-0655B Required per assembly: 1 $3.30 $2.97 - + Add to cart
6	BOLT Part #: 01547-0660B Required per assembly: 1 $3.87 $3.48 - + Add to cart
6A	BOLT (CHROME) Part #: 01547-06707 Required per assembly: 1 Note: BOLT; $3.47 $3.12 - + Add to cart
7-1	O, RING, BRAKE, CAM Part #: 09280-10016 Required per assembly: 1 Note: O RING (ID:9.8,D:1.90); $4.22 $3.80 - + Add to cart
7-2	O, RING, BRAKE, CAM Part #: 09280-10016 Required per assembly: 1 Note: O RING (ID:9.8,D:1.90); $4.22 $3.80 - + Add to cart
8	BOLT Part #: 09103-08037 Required per assembly: 2 Note: BOLT (8X67); $6.87 $6.18 - + Add to cart
9	BOLT (8X100) Part #: 09103-08114 Required per assembly: 1 $9.03 $8.13 - + Add to cart
10	BOLT, LOWER Part #: 09103-08081 Required per assembly: 1 Note: BOLT (8X50); $3.91 $3.52 - + Add to cart
11	NUT Part #: 08319-3108A Required per assembly: 4 $2.79 $2.51 - + Add to cart
