Clutch replacement parts for 2005 Yamaha Bruin 2WD (YFM35BAT)

OEM Parts Yamaha 2005 Yamaha Bruin 2WD (YFM35BAT) Clutch

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLUTCH HOUSING COMP. Part #: 5UH-16611-00-00 Required per assembly: 1 $320.99 $301.28 - + Add to cart
002	CLUTCH CARRIER ASSEMBLY Part #: 5UH-16620-00-00 Required per assembly: 1 $374.99 $337.40 - + Add to cart
003	SPRING, CLUTCH, WEIGHT, 1 Part #: 5UH-16626-00-00 Required per assembly: 4 $4.34 $3.58 - + Add to cart
004	HOUSING, BEARING, 1 Part #: 5UH-15163-00-00 Required per assembly: 1 $51.99 $45.39 - + Add to cart
005	BEARING Part #: 93316-01003-00 Required per assembly: 1 $113.98 $94.65 - + Add to cart
006	OIL SEAL Part #: 93102-32483-00 Required per assembly: 1 $21.98 $16.51 - + Add to cart
007	CIRCLIP (70R) Part #: 93420-80066-00 Required per assembly: 1 $16.48 $11.60 - + Add to cart
008	CIRCLIP Part #: 93410-46079-00 Required per assembly: 1 $9.49 $5.32 - + Add to cart
009	BEARING, CYL.#15 Part #: 93315-21813-00 Required per assembly: 1 $39.99 $31.80 - + Add to cart
010	CIRCLIP Part #: 93450-24062-00 Required per assembly: 1 $4.09 $3.43 - + Add to cart
011	BEARING, ONE, WAY Part #: 5GH-16664-00-00 Required per assembly: 1 $161.99 $138.32 - + Add to cart
012	NUT Part #: 90179-22005-00 Required per assembly: 1 $31.98 $22.68 - + Add to cart

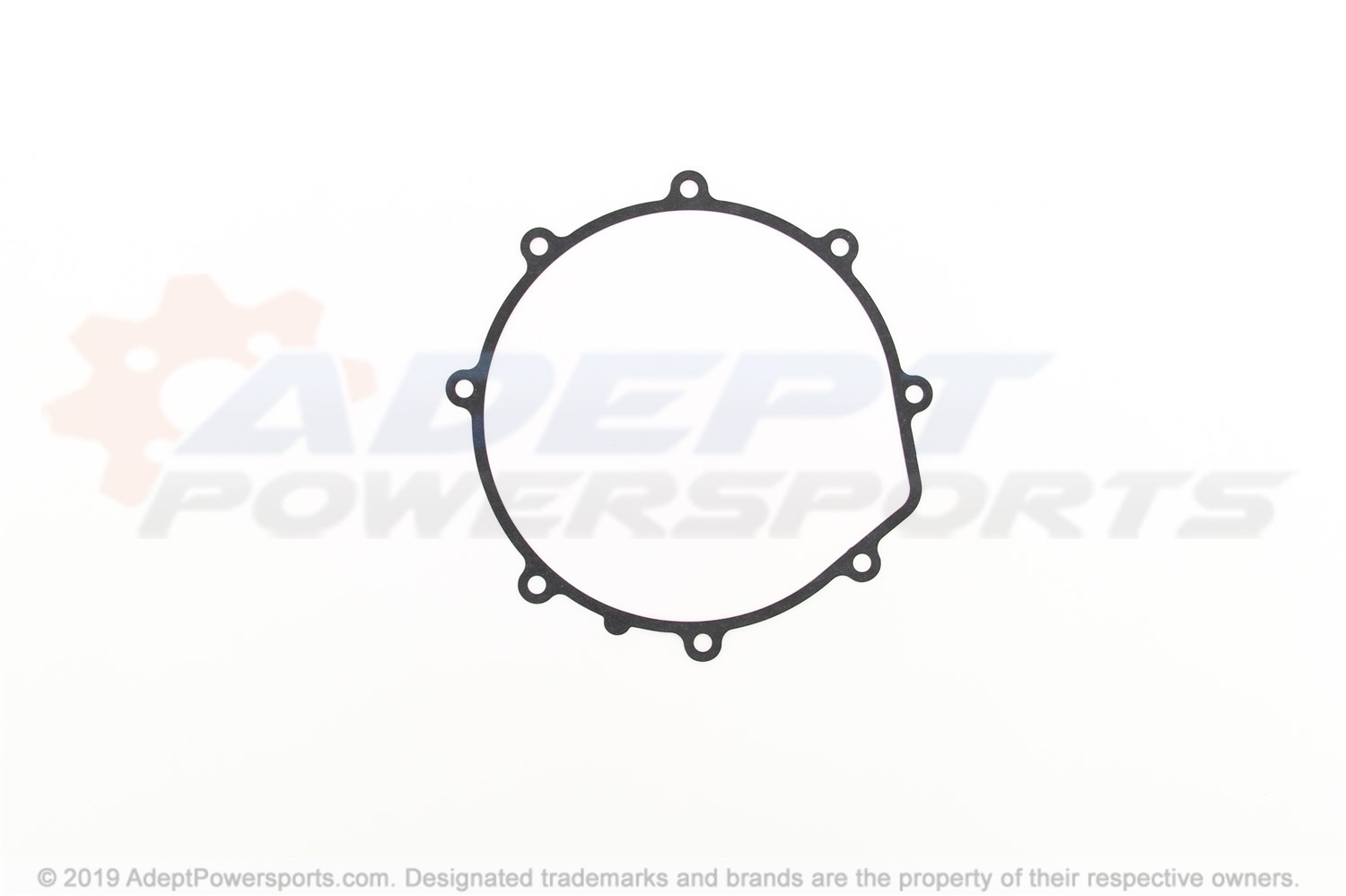

013	GASKET, COVER, PINION, 2 Part #: 5UH-15463-00-00 Required per assembly: 1 $17.98 $11.79 - + Add to cart
014	BOLT, FLANGE Part #: 95027-06030-00 Required per assembly: 5 $4.29 $3.58 - + Add to cart
015	PRIMARY SLIDING SHEAVE COMP. Part #: 5UH-17620-00-00 Required per assembly: 1 $233.99 $206.01 - + Add to cart
016	OIL SEAL Part #: 93101-31167-00 Required per assembly: 2 $19.48 $15.50 - + Add to cart
017	WEIGHT Part #: 4WV-17632-00-00 Required per assembly: 8 $18.98 $15.92 - + Add to cart
018	CAM Part #: 5UH-17623-00-00 Required per assembly: 1 $37.99 $29.65 - + Add to cart
019	SLIDER Part #: 4WV-17653-00-00 Required per assembly: 4 $8.49 $6.80 - + Add to cart
020	SPACER 1 Part #: 4WV-17654-01-00 Required per assembly: 4 $7.49 $5.88 - + Add to cart
021	O-RING Part #: 93211-52001-00 Required per assembly: 1 $34.99 $24.51 - + Add to cart
022	STOPPER Part #: 5UH-17639-00-00 Required per assembly: 1 $31.98 $22.70 - + Add to cart
023	SCREW, PAN, HEAD Part #: 98517-04012-00 Required per assembly: 8 $4.20 $3.21 - + Add to cart
024	WASHER, PLATE Part #: 90201-047R9-00 Required per assembly: 8 $2.79 $2.34 - + Add to cart
025	COLLAR Part #: 5UH-17645-00-00 Required per assembly: 1 $78.98 $73.60 - + Add to cart
026	V-BELT Part #: 5UH-17641-01-00 Required per assembly: 1 $114.98 $94.76 - + Add to cart
027	SHEAVE, PRIMARY, FIXED Part #: 5UH-17611-00-00 Required per assembly: 1 $171.99 $148.12 - + Add to cart
028	WASHER, PLATE Part #: 90201-190T7-00 Required per assembly: 1 $9.49 $7.98 - + Add to cart
029	NUT Part #: 90179-16005-00 Required per assembly: 1 $12.49 $10.87 - + Add to cart
030	SECONDARY FIXED SHEAVE COMP. Part #: 5UH-17660-00-00 Required per assembly: 1 $340.99 $295.04 - + Add to cart
031	SECONDARY SLIDING SHEAVE Part #: 5UH-17670-00-00 Required per assembly: 1 $156.99 $136.43 - + Add to cart
032	OIL SEAL Part #: 93104-41119-00 Required per assembly: 2 $18.48 $13.94 - + Add to cart
033	O-RING Part #: 93210-44545-00 Required per assembly: 1 $14.49 $11.40 - + Add to cart
034	PIN, GUIDE Part #: 4CW-17664-00-00 Required per assembly: 4 $8.49 $7.18 - + Add to cart
035	SPRING, COMPRESSION Part #: 90501-580A0-00 Required per assembly: 1 $39.99 $32.04 - + Add to cart
036	SEAT, SECONDARY, SPRING Part #: 5UH-17684-00-00 Required per assembly: 1 $18.98 $15.03 - + Add to cart
037	SEAT, SPRING Part #: 5UH-17644-00-00 Required per assembly: 1 $5.99 $4.66 - + Add to cart
038	NUT, HEXAGON Part #: 90170-36279-00 Required per assembly: 1 $18.48 $13.26 - + Add to cart
039	NUT Part #: 90179-16005-00 Required per assembly: 1 $12.49 $10.87 - + Add to cart
