Turn Signal replacement parts for 2006 Honda VTX (VTX1800S2)

OEM Parts Honda 2006 Honda VTX (VTX1800S2) Turn Signal

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	BULB, FR., (12V, 21W) Part #: 33301-S04-004 Required per assembly: 2 $10.22 $9.62 - + Add to cart

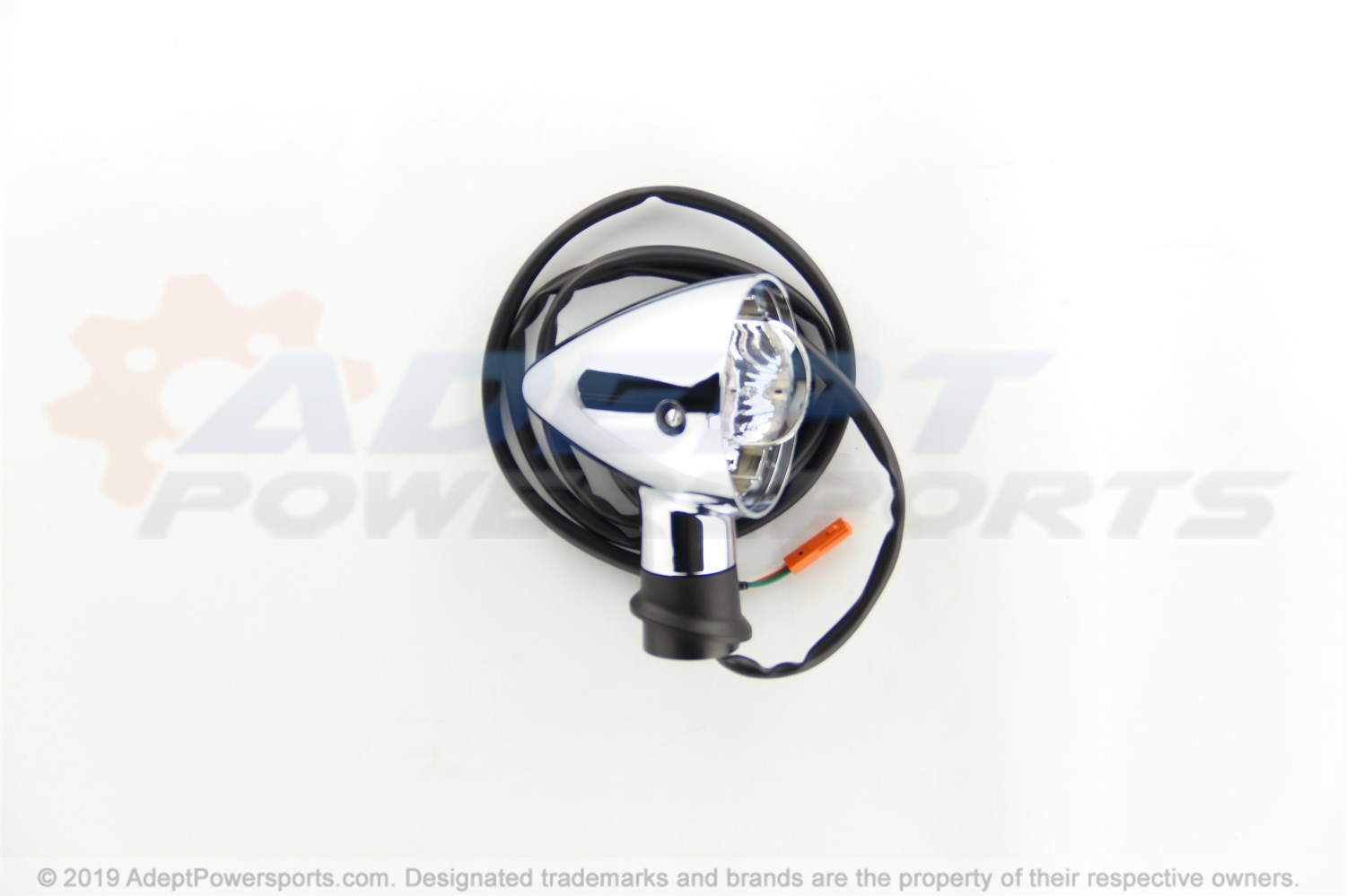

002	TURN SIGNAL ASSEMBLY Part #: 33400-MCV-N11 Required per assembly: 1 $159.19 $132.72 - + Add to cart
004	LENS, TURN, SIGNAL Part #: 33401-MEC-003 Required per assembly: 4 $15.34 $12.79 - + Add to cart
005	RIM, TURN, SIGNAL Part #: 33402-MEC-003 Required per assembly: 4 $22.22 $18.52 - + Add to cart
006	GASKET, LENS Part #: 33407-MEC-003 Required per assembly: 4 Not Available
007	NUT, CLIP Part #: 33408-MBA-611 Required per assembly: 2 $3.09 $2.87 - + Add to cart
008	BASE, R., TURN, SIGNAL Part #: 33410-MCV-N11 Required per assembly: 1 Not Available
009	BOLT, SPECIAL, (4X8) Part #: 33412-MEC-003 Required per assembly: 4 Not Available
010	GUIDE, R., FR. Part #: 33421-MCV-N10 Required per assembly: 1 $7.51 $6.58 - + Add to cart
011	TURN SIGNAL ASSEMBLY Part #: 33450-MCV-N11 Required per assembly: 1 $159.19 $128.85 - + Add to cart
013	BASE, L., TURN, SIGNAL Part #: 33460-MCV-N11 Required per assembly: 1 Not Available
014	GUIDE, L., FR. Part #: 33471-MCV-N10 Required per assembly: 1 $7.51 $6.58 - + Add to cart
016	BASE, R., TURN, SIGNAL Part #: 33610-MCV-S10 Required per assembly: 1 Not Available
018	BASE, L., TURN, SIGNAL Part #: 33660-MCV-S10 Required per assembly: 1 $126.38 $105.36 - + Add to cart
019	HOLDER, A, R., FR. Part #: 53103-MCV-N10 Required per assembly: 1 Not Available
022	HOLDER, B, R., FR. Part #: 53104-MCV-N10 Required per assembly: 1 Not Available
023	HOLDER, A, L., FR. Part #: 53113-MCV-N10 Required per assembly: 1 Not Available
025	HOLDER, B, L., FR. Part #: 53114-MCV-N10 Required per assembly: 1 $42.15 $35.13 - + Add to cart
026	BOLT, SOCKET, (6X15) Part #: 90071-ME9-000 Required per assembly: 2 $4.68 $4.25 - + Add to cart
027	BOLT, FLANGE, (6X12) Part #: 90130-ML0-730 Required per assembly: 2 $4.05 $3.68 - + Add to cart
028	BOLT, SOCKET, (6X28) Part #: 96600-06028-00 Required per assembly: 4 $2.79 $2.60 - + Add to cart
