Electrical - A06gj50aa/Ab/Ac replacement parts for 2006 Polaris Predator 500 (A06GJ50AA)

OEM Parts Polaris 2006 Polaris Predator 500 (A06GJ50AA) Electrical - A06gj50aa/Ab/Ac

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KEY BLANK (6700&6800 SERIES) SPARE KEY MUST BE CUT FROM EXISTING KEY. Part #: 4010278 Required per assembly: 1 Note: Key, Blank NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key. Currently Not Available
1	SWITCH, IGNITION Part #: 4012163 Required per assembly: 1 Note: Switch Ignition [Incl. 5, Key and Cover] Currently Not Available
2	KIT, FUSIBLE, LINK Part #: 2202147 Required per assembly: 1 Note: Kit, Fusible Link, .5mm Currently Not Available
2	CIRCUIT, BREAKER, 20, AMP Part #: 2410323 Required per assembly: 1 Note: Breaker, Circuit, 20 AMP Currently Not Available
2	BREAKER, CIRCUIT, 10, AMP Part #: 2410394 Required per assembly: 1 Currently Not Available
2	HARNESS, MAIN Part #: 2410527 Required per assembly: 1 Currently Not Available
3	NUT, IGN, SWITCH, HOBBS Part #: 5433733 Required per assembly: 1 Note: Nut, Ignition Switch Currently Not Available
4	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
5	NUT Part #: 7541925 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
6	WASHER Part #: 7556034 Required per assembly: 4 Currently Not Available

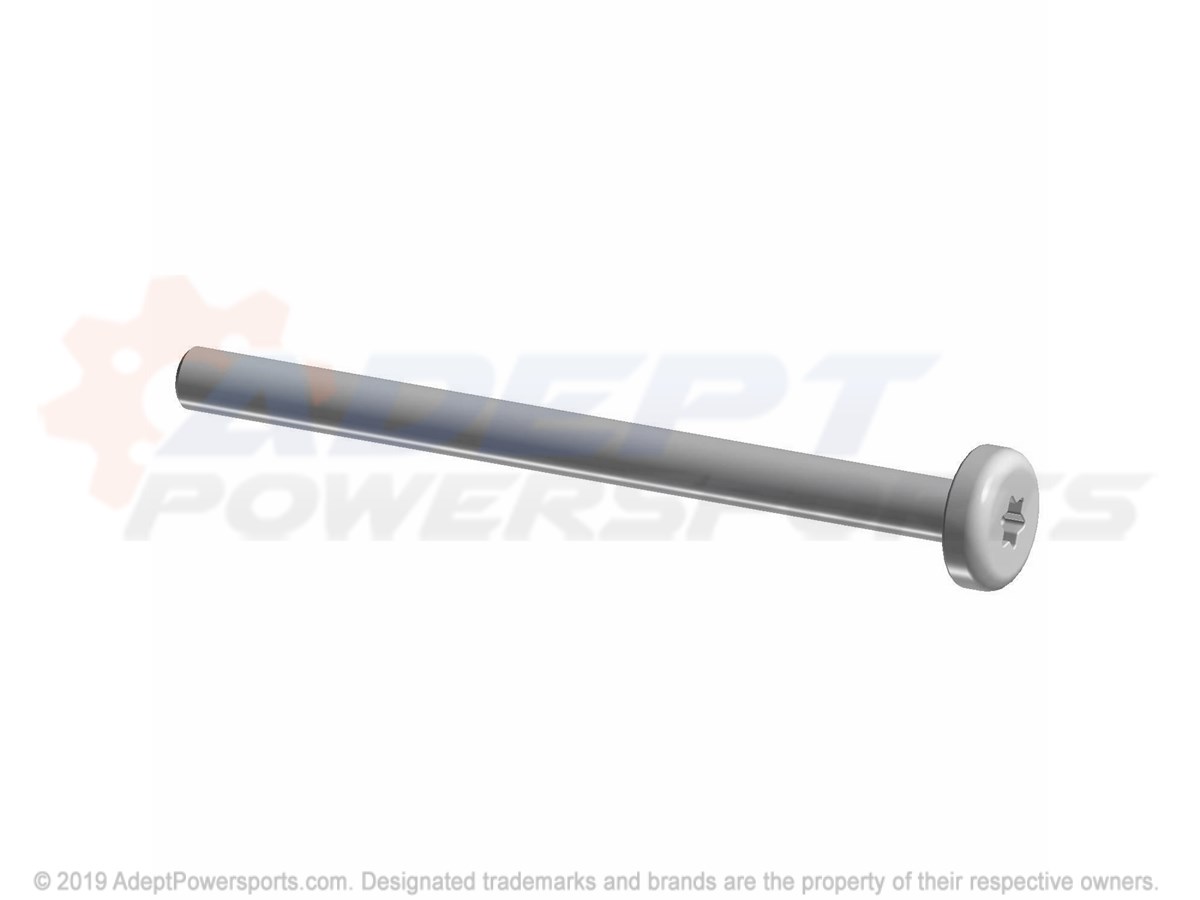

7	SCREW Part #: 7512027 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
8	ASSEMBLY, TAILLIGHT Part #: 2410572 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7518432 Required per assembly: 2 Currently Not Available
10	WIRE, TAILLIGHT, LED Part #: 2410596 Required per assembly: 1 Currently Not Available

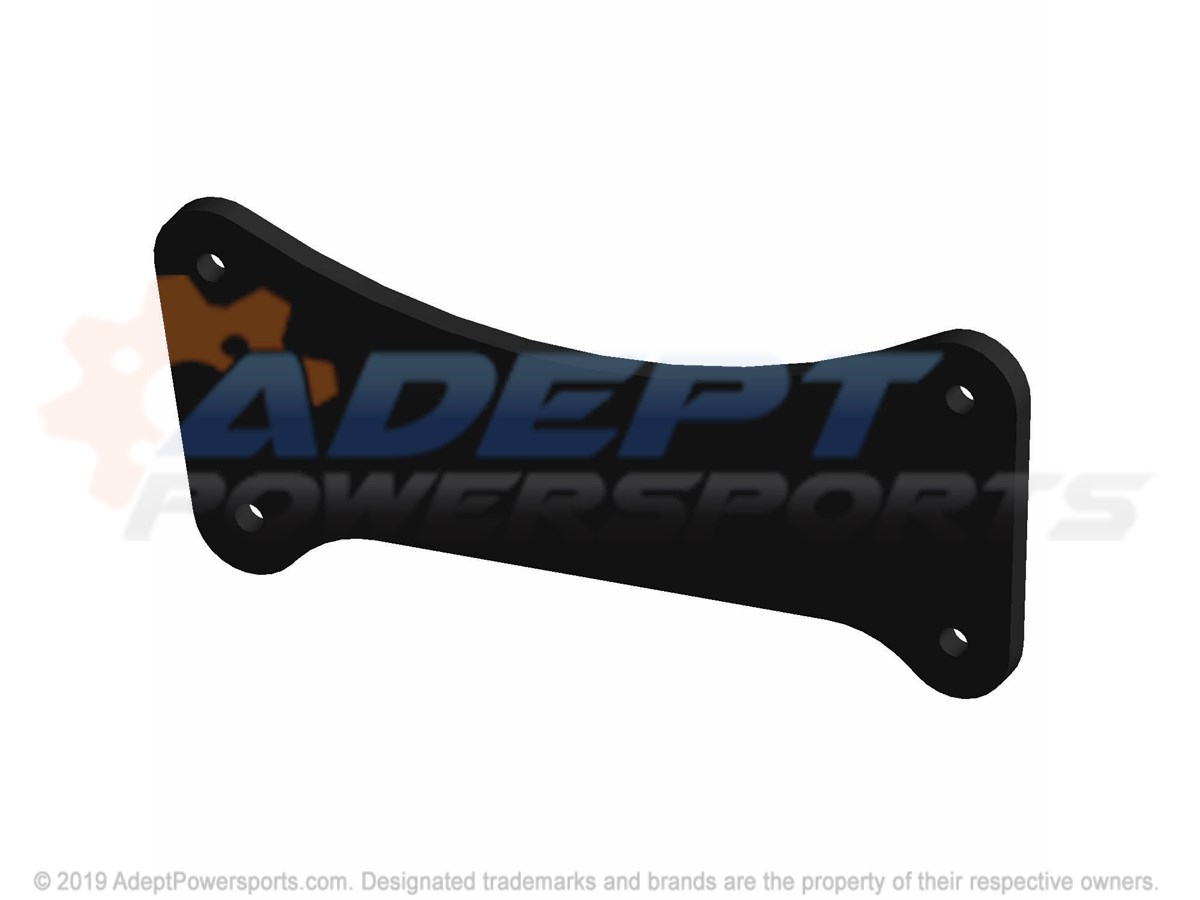

11	MOUNT, TAILLIGHT Part #: 5812681 Required per assembly: 1 Currently Not Available
12	WASHER Part #: 7555727 Required per assembly: 2 Currently Not Available
13	NUT Part #: 7547004 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
14	CLIP-ROUTING Part #: 7670109 Required per assembly: 1 Note: Clip, Routing Currently Not Available
15	CLIP, PLASTIC Part #: 4020139 Required per assembly: 2 Note: Clip, Rosebud Currently Not Available
16	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 2 Note: Clip, Rosebud Currently Not Available
17	STRAP PANDUIT Part #: 7080138 Required per assembly: 17 ~~$1.99~~ $1.15 - + Add to cart
18	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
19	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 1 Currently Not Available
20	BATTERY Part #: 4010678 Required per assembly: 1 Note: YTX9-BS SEALED BATTERY Currently Not Available
21	KIT, BATTERY, BOLT Part #: 2202213 Required per assembly: 2 Currently Not Available
22	SCREW Part #: 7515199 Required per assembly: 2 Note: Screw Sold in multiples of 10 only Currently Not Available
23	CABLE, GROUND, 6, INCH Part #: 4011169 Required per assembly: 1 Currently Not Available
24	HOOK, BATTERY, STRAP Part #: 7081123 Required per assembly: 2 Currently Not Available
25	STRAP, RUBBER Part #: 5410608 Required per assembly: 1 Currently Not Available
26	CABLE, BATTERY/SOLENOID, RED Part #: 4010884 Required per assembly: 1 Note: Cable, Battery/Solenoid, Red, 7 Inch Currently Not Available
27	PAD, BULK, FUEL Part #: 8360026 Required per assembly: 3 Currently Not Available
28	RECTIFIER, REGULATOR Part #: 4012536 Required per assembly: 1 Currently Not Available
29	SCREW Part #: 7518196 Required per assembly: 8 ~~$1.99~~ $1.15 - + Add to cart
30	SWITCH, MAGNETIC Part #: 4011087 Required per assembly: 1 Currently Not Available
31	CABLE, SOL/STARTER Part #: 4010093 Required per assembly: 1 Currently Not Available
32	COIL, IGNITION Part #: 3088053 Required per assembly: 1 Note: Asm., Coil, Ignition Currently Not Available
33	ASSEMBLY, CDI, SYSTEM Part #: 3089613 Required per assembly: 1 Currently Not Available
34	CABLE, GROUND, 13.75, INCH Part #: 4011170 Required per assembly: 1 Currently Not Available
35	CABLE, GROUND, 10, INCH Part #: 4010926 Required per assembly: 1 Note: Cable, Ground Currently Not Available
