A-Arms, Mid Drive - R06rf68aa replacement parts for 2006 Polaris RANGER 6x6 EFI 700 (R06RF68AA)

OEM Parts Polaris 2006 Polaris RANGER 6x6 EFI 700 (R06RF68AA) A-Arms, Mid Drive - R06rf68aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT Part #: 7515472 Required per assembly: 8 Currently Not Available
1	SCREW Part #: 7518403 Required per assembly: 8 Note: Screw [If built before 1/1/06] Currently Not Available
2	NUT, NYLOC Part #: 7542451 Required per assembly: 12 ~~$1.99~~ $1.15 - + Add to cart
3	SHAFT, A-ARM, SHORT Part #: 5020826 Required per assembly: 8 Note: Shaft, A-Arm, Short Currently Not Available
4	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 24 Currently Not Available
5	SCREW Part #: 7518404 Required per assembly: 2 Note: Screw [If built before 1/1/06] Currently Not Available
5	SCREW Part #: 7515514 Required per assembly: 2 Currently Not Available
6	SHAFT, A-ARM, UPPER Part #: 5134549 Required per assembly: 1 Currently Not Available

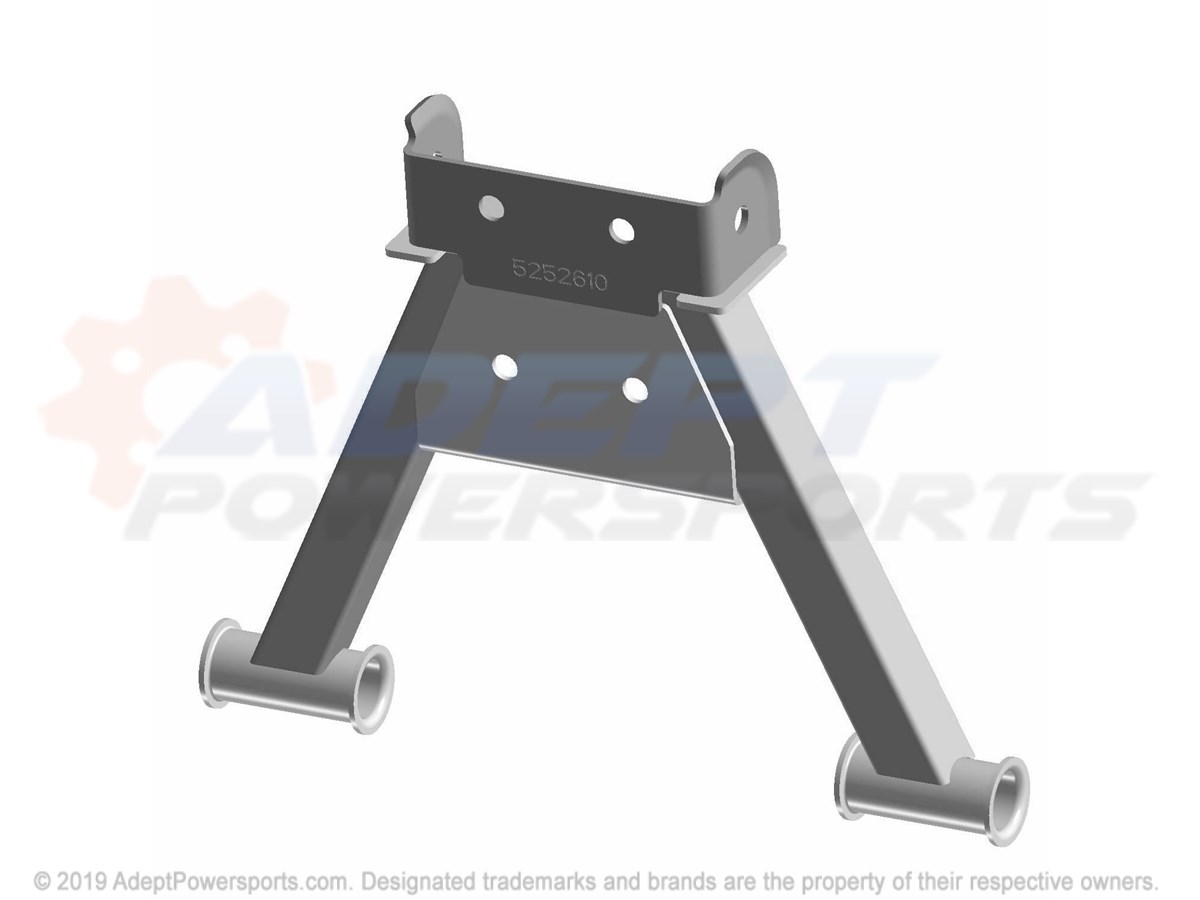

7	A-ARM, MID, AXLE, UPPER, BLACK Part #: 1015142-067 Required per assembly: 2 Currently Not Available
8	NUT-LOCK Part #: 7542439 Required per assembly: 4 Currently Not Available
8	NUT-LOCK Part #: 7542439 Required per assembly: 16 Currently Not Available
9	SCREW Part #: 7515433 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
10	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
11	SPRING, MIDDLE, AXLE Part #: 7042169-067 Required per assembly: 2 Note: Spring, Middle Axle, Black Currently Not Available
12	WASHER, 2.085X2.88X.135 Part #: 7556142 Required per assembly: 2 Note: Washer Currently Not Available
13	SHOCK, MIDDLE, AXLE Part #: 7042078 Required per assembly: 2 Currently Not Available
14	BOLT Part #: 7515415 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
15	HUB-WHEEL, REAR, MACH Part #: 5143629 Required per assembly: 2 Currently Not Available
16	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
17	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
18	CARRIER, BEARING, WHEEL, LH Part #: 5134741 Required per assembly: 1 Currently Not Available
18	CARRIER, BEARING, WHEEL, [RH] Part #: 5134531 Required per assembly: 1 Note: Carrier, Bearing, Wheel, RH Currently Not Available
19	SHAFT, A-ARM., LOWER Part #: 5134616 Required per assembly: 2 Currently Not Available
20	SCREW Part #: 7518634 Required per assembly: 2 Note: Screw Currently Not Available
20	SCREW Part #: 7518405 Required per assembly: 2 Note: Screw [If built before 1/1/06] Currently Not Available
21	A-ARM, MID, AXLE, LOWER, BLACK Part #: 1015141-067 Required per assembly: 2 Currently Not Available
