Electrical - A06mh50aq/Ax/Ay/Az/Al/At replacement parts for 2006 Polaris Sportsman 500 EFI (A06MH50AQ)

OEM Parts Polaris 2006 Polaris Sportsman 500 EFI (A06MH50AQ) Electrical - A06mh50aq/Ax/Ay/Az/Al/At

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TUBE, BATTERY, VENT Part #: 5432077 Currently Not Available
2	KIT, BATTERY, BOLT Part #: 2202099 Required per assembly: 1 Note: Kit, Battery Bolt (If built after 7/09/01) Currently Not Available
3	BATTERY, 30, AMP, TOP, MOUNT Part #: 4010630 Aftermarket alternatives available Required per assembly: 1 Note: Required on Ranger EV, LSV with Warn 3.0 Integrated Winch. Part Number 2877865. Yuasa YB30L-B (no acid) Sold in multiples of 2 only Currently Not Available
4	PAD, BATTERY Part #: 5810290 Required per assembly: 3 Currently Not Available
5	CABLE, BATTERY/FRAME Part #: 4011481 Required per assembly: 1 Currently Not Available
6	CABLE, SOL/STARTER Part #: 4010093 Required per assembly: 1 Currently Not Available
7	HARNESS, WINCH Part #: 2410765 Required per assembly: 1 Currently Not Available
8	HARNESS, MAIN Part #: 2410625 Required per assembly: 1 Currently Not Available
8	KIT, HARNESS Part #: 2203193 Required per assembly: 1 Currently Not Available
8	KIT-HARNESS TPS Part #: 2878498 Required per assembly: 1 Currently Not Available
8	KIT, HARNESS, ENGINE, MAP, SENSOR Part #: 2876315 Required per assembly: 1 Currently Not Available
8	KIT, HARNESS, ENGINE, INJECTOR Part #: 2875901 Required per assembly: 1 Currently Not Available
8	KIT, HARNESS, ENGINE, AIR, TEMP Part #: 2875900 Required per assembly: 1 Currently Not Available
8	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 1 Currently Not Available
9	KIT, HARNESS, RESISTOR, MODULE Part #: 2204890 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7512024 Required per assembly: 5 Currently Not Available
11	MODULE, CONTROLLER Part #: 4011598 Required per assembly: 1 Currently Not Available
12	BRACKET, MODULE Part #: 5249459 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7512018 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
14	WASHER Part #: 7555904 Required per assembly: 2 Currently Not Available

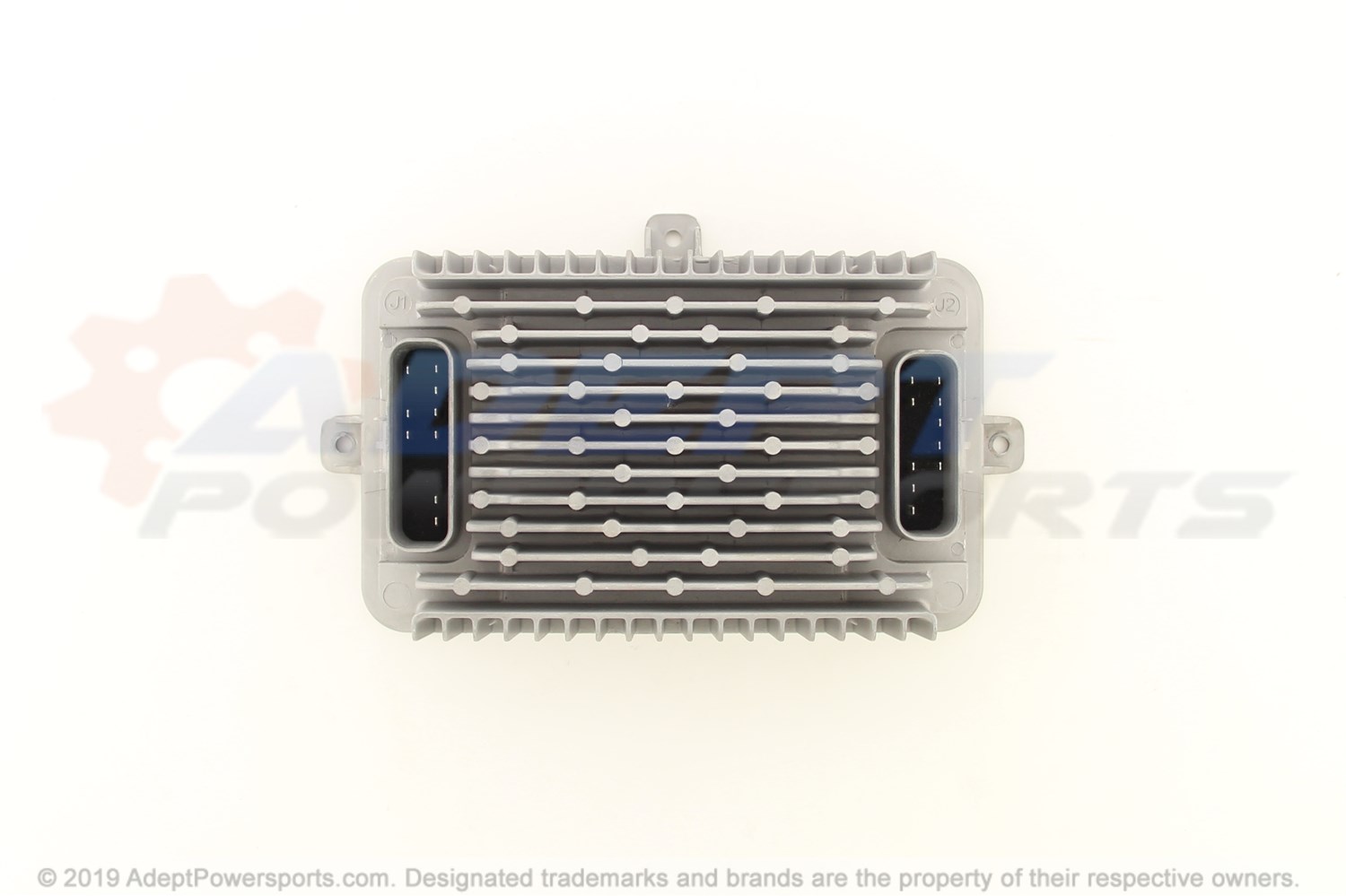

15	ECM, SERVICE Part #: 4012443 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518552 Required per assembly: 1 Currently Not Available
17	WASHER, NYLON Part #: 7555932 Required per assembly: 1 Currently Not Available
18	RIVET, INTERLOCK, Z Part #: 7661637 Required per assembly: 2 Note: Sold in multiples of 50 only Currently Not Available

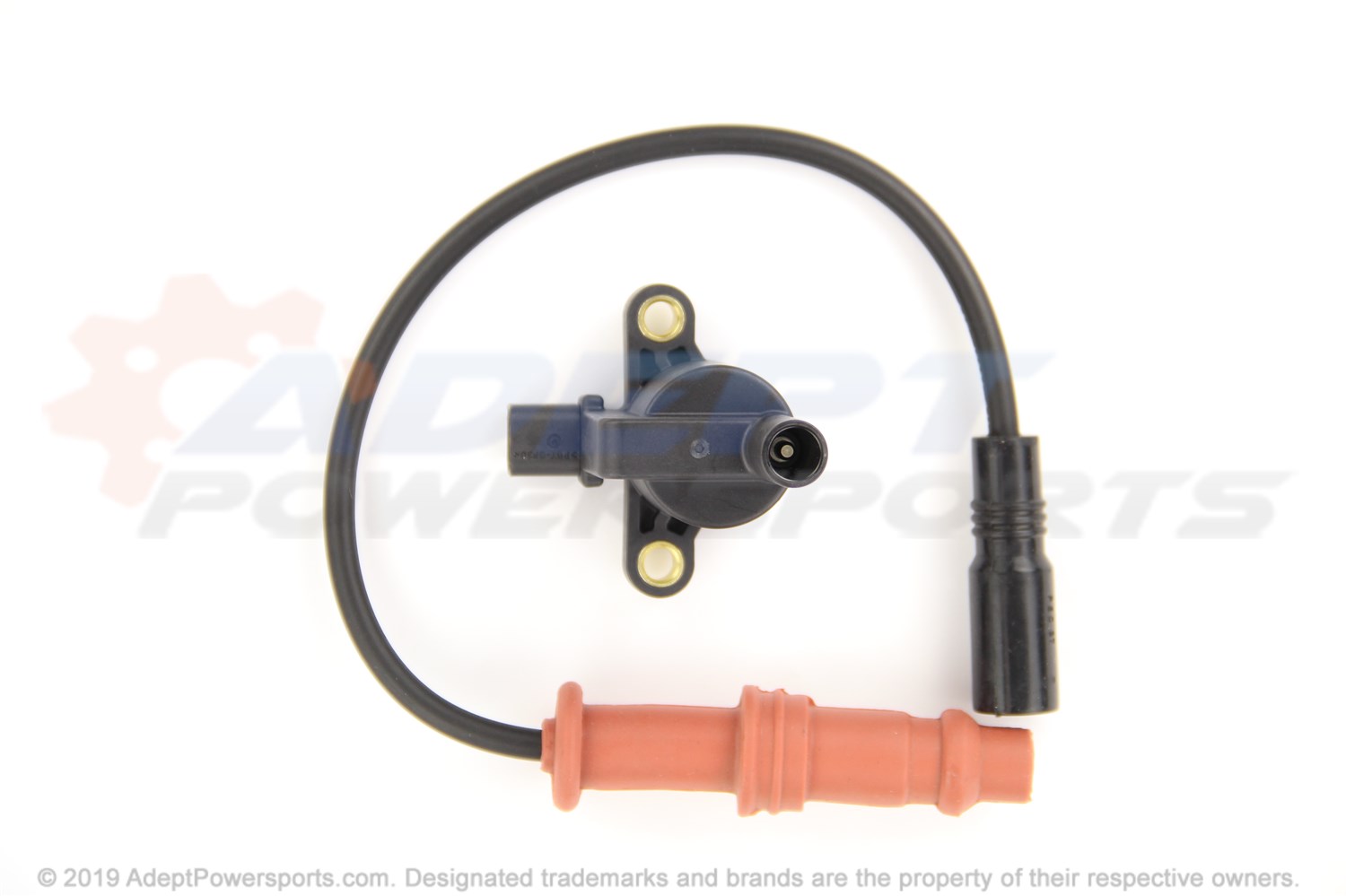

19	COIL, IGNITION Part #: 2203874 Required per assembly: 1 Note: Kit contains 4011691 (QTY 1) - WIRE-SPARK PLUG,SINGLE,365MM 4011834 (QTY 1) - COIL-IGNITION,500EFI 4015072 (QTY 1) - COIL-IGNITION,SINGLE,W/DIODE Currently Not Available
20	SCREW Part #: 7518196 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
21	BRACKET, COIL, MOUNT Part #: 5249815 Required per assembly: 1 Currently Not Available
22	BOLT Part #: 7512232 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
23	SOLENOID, STARTER, C1100, W/WASHER Part #: 4014471 Required per assembly: 1 Currently Not Available
24	NUT, FLANGE Part #: 7547270 Required per assembly: 2 Note: Nut, Hex Currently Not Available
25	CABLE, BATTERY/SOLENOID Part #: 4010471 Required per assembly: 1 Currently Not Available
26	HOOK-BATT.H/D Part #: 7010032 Required per assembly: 2 ~~$1.99~~ $1.34 - + Add to cart
27	STRAP-BATTERY HOLD DOWN Part #: 5418182 Required per assembly: 1 Currently Not Available
28	MOUNT, CABLE, TIE Part #: 7080965 Required per assembly: 3 Currently Not Available
29	CLIP, PLASTIC Part #: 4020139 Required per assembly: 3 Note: Clip, Rosebud Currently Not Available
30	STRAP PANDUIT Part #: 7080138 Required per assembly: 12 ~~$1.99~~ $1.15 - + Add to cart
31	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 4 Currently Not Available
