Strut And Hanger Mounting - V06tb16/All Options replacement parts for 2006 Victory TOURING CRUISER ALL OPTIONS (V06TB16CA)

OEM Parts Victory 2006 Victory TOURING CRUISER ALL OPTIONS (V06TB16CA) Strut And Hanger Mounting - V06tb16/All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PAD, RUBBER, TANDEM, SEAT Part #: 5811941 Required per assembly: 2 Currently Not Available
2	WELD-STRUT, LH, BLK Part #: 1013951-067 Required per assembly: 1 Currently Not Available
2	STRUT, RH, BLK Part #: 1013952-067 Required per assembly: 1 Currently Not Available
3	BUSHING-FENDER, REAR, SIL Part #: 5133702 Required per assembly: 2 Currently Not Available
4	SCR-SCHFLTHD, M8X20, 0600085 Part #: 7518155 Required per assembly: 2 Currently Not Available
5	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 4 Currently Not Available
6	COVER-STRUT, LH Part #: 5245656 Required per assembly: 1 Note: (Incl. Clips) Currently Not Available
6	COVER-STRUT, RH Part #: 5245657 Required per assembly: 1 Note: (Incl. Clips) Currently Not Available

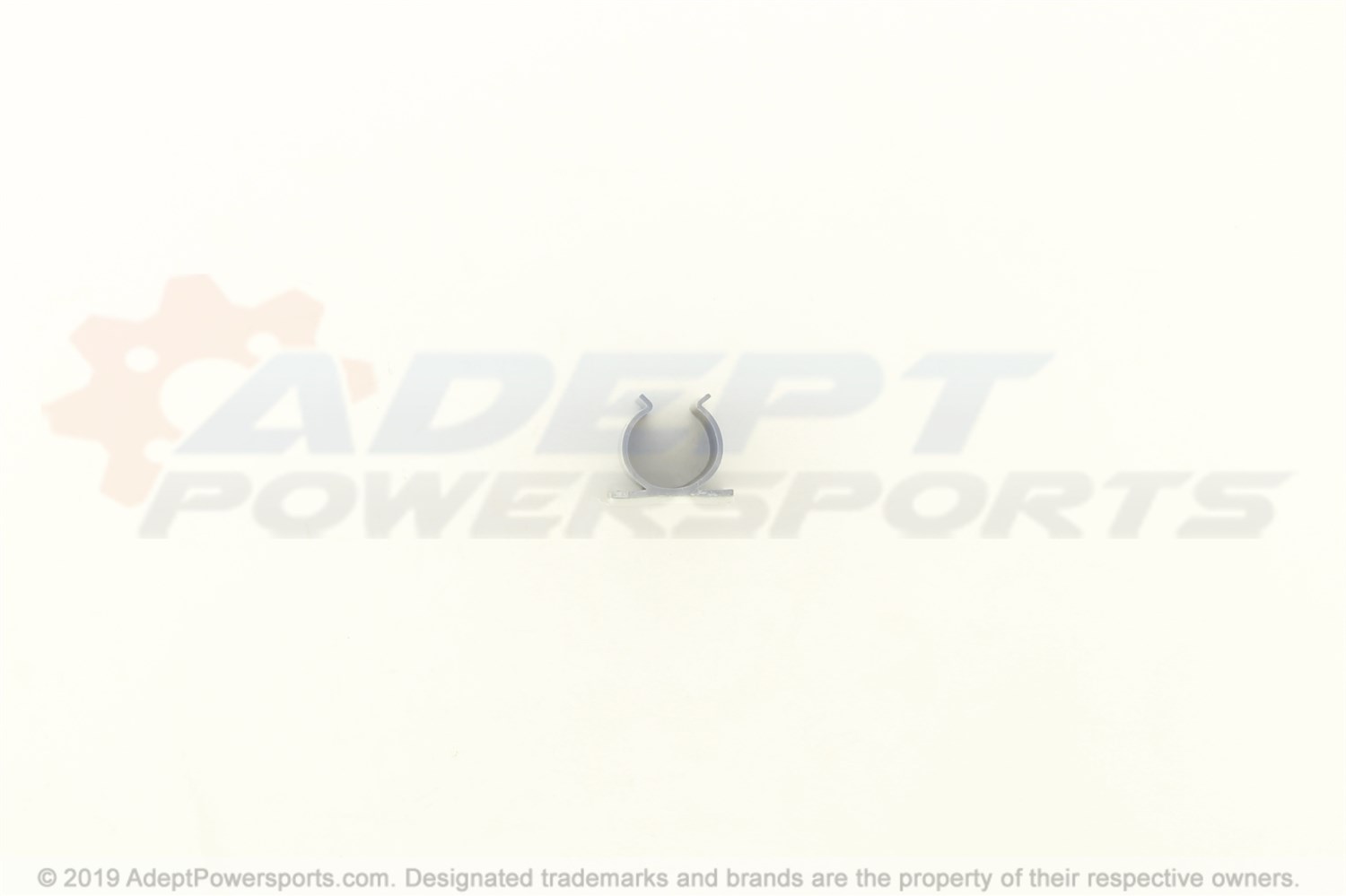

6	CLIP-STRUT Part #: 7670139 Required per assembly: 5 Currently Not Available
7	SCR-HEXHD, M8X12, 0600088(10) Part #: 7517887 Required per assembly: 2 Currently Not Available
8	WSHR-FL, 8.4X1.6X16, 0600090(10) Part #: 7556164 Required per assembly: 4 Currently Not Available
9	BRKT-LUGGAGE, RACK, TC Part #: 5246681 Required per assembly: 2 Currently Not Available
10	SCR-HEXHD, M8X16, 0600088 Part #: 7517888 Required per assembly: 2 Currently Not Available
11	SCR-HEXFLGHD M10X16 0600086 Part #: 7517951 Required per assembly: 2 Currently Not Available
12	WELD-HANGER, REAR, BLK Part #: 1012963-067 Required per assembly: 1 Currently Not Available
13	WELD-FENDER, REAR, P266/BLK Part #: 1013164-266 Required per assembly: 1 Currently Not Available
13	FENDER, REAR, TC, SEDONA Part #: 1013164-508 Required per assembly: 1 Currently Not Available
13	WELD-FENDER, REAR, TC, SPRGRAPH Part #: 1013164-509 Required per assembly: 1 Currently Not Available
14	NUT Part #: 7547076 Required per assembly: 2 Currently Not Available
