Headlights replacement parts for 2007 Can Am DS250 CE

OEM Parts Can Am 2007 Can Am DS250 CE Headlights

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HEAD LIGHT ASSEMBLY Part #: S33100RCA000 Required per assembly: 1 Currently Not Available
1a	HEADLIGHT BULB, 12V/35W Part #: S34901RCA000 Required per assembly: 2 Currently Not Available
2	SPRING Part #: S33101RCA000 Required per assembly: 2 Currently Not Available
3	RH FRONT FLASHER ASSEMBLY Part #: S33400RCA000 Required per assembly: 1 Currently Not Available
3a	FLASHER BULB, 12V/21W Part #: S34905RB1000 Required per assembly: 2 Currently Not Available
4	RH FRONT WINKER SUPPORT A Part #: S33401RCA000 Required per assembly: 1 Currently Not Available
5	RH FRONT WINKER SUPPORT B Part #: S33402RCA000 Required per assembly: 1 Currently Not Available

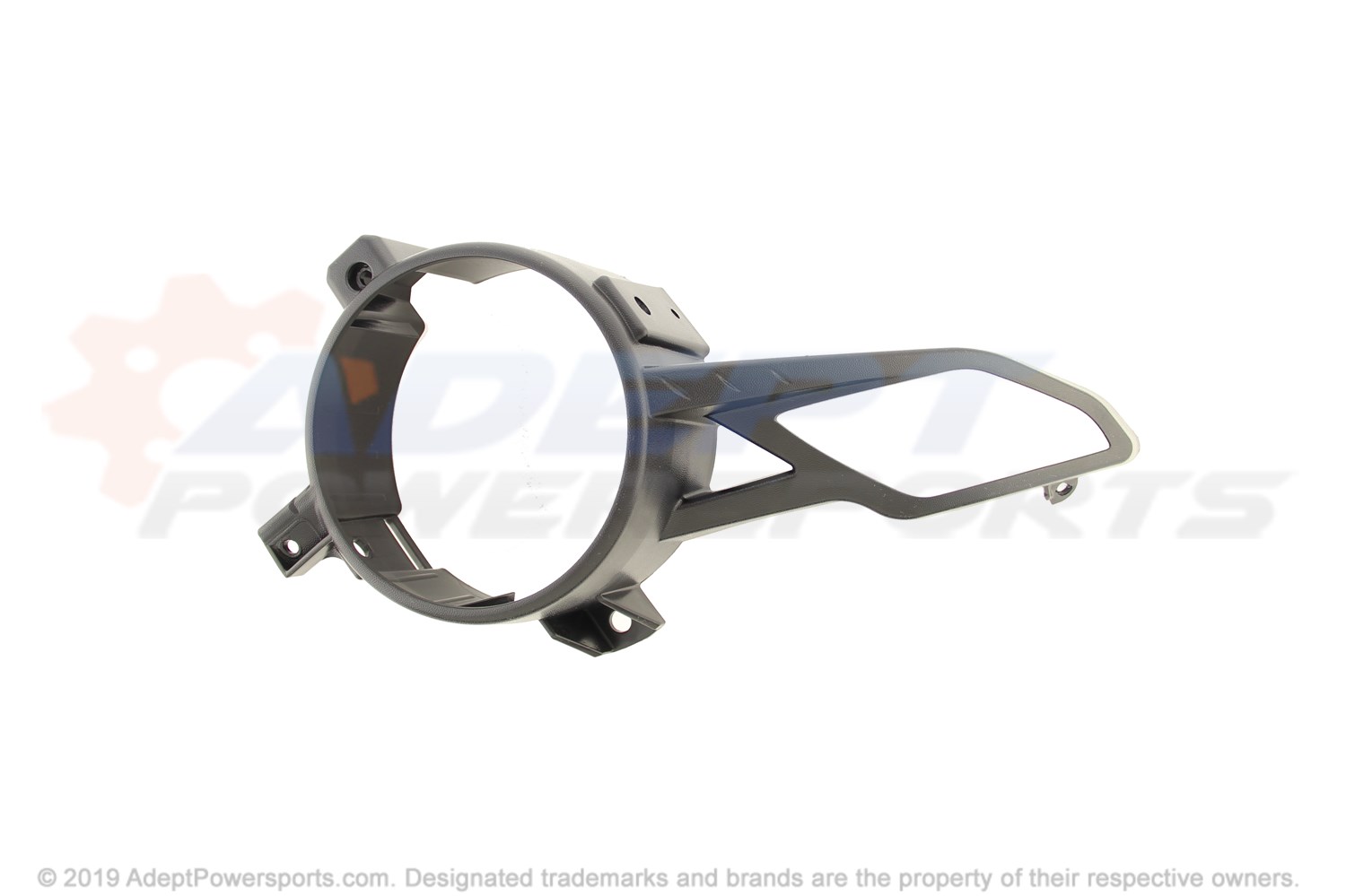

6	RH HEAD LIGHT SHROUD Part #: S63100RCA000 Required per assembly: 1 Currently Not Available
7	SPECIAL BOLT 6 MM Part #: S90110RCA000 Required per assembly: 4 Currently Not Available
8	CLIP NUT Part #: S90301RCA000 Required per assembly: 6 Currently Not Available
9	CLIP NUT Part #: S90303RCA000 Required per assembly: 2 Currently Not Available
10	PAN SCREW M5 X 55 Part #: S93500050550G Required per assembly: 2 Currently Not Available
12	WASHER SCREW M4 X 10 Part #: S938910401007 Required per assembly: 4 Currently Not Available
13	WASHER 5 MM Part #: S9410105700 Required per assembly: 4 Currently Not Available
14	HEAD LIGHT ASSEMBLY Part #: S33100RCA000 Required per assembly: 1 Currently Not Available
15	LH FRONT FLASHER ASSEMBLY Part #: S33450RCA000 Required per assembly: 1 Currently Not Available
16	LH FRONT FLASHER SUPPORT A Part #: S33451RCA000 Required per assembly: 1 Currently Not Available
17	LH FRONT FLASHER SUPPORT B Part #: S33452RCA000 Required per assembly: 1 Currently Not Available
18	LH HEAD LIGHT SHROUD Part #: S63150RCA900JF Required per assembly: 1 Currently Not Available
19	WASHER BOLT M6 X 25 Part #: S934040602807 Required per assembly: 2 Currently Not Available
20	WASHER SCREW Part #: S90117H9A000 Required per assembly: 2 Currently Not Available
