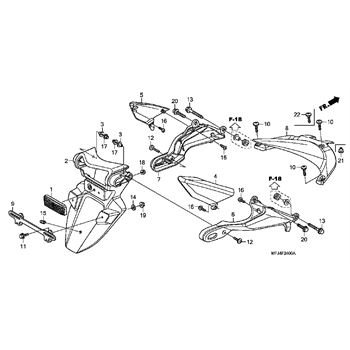

2007 Honda CBR600RR - Taillight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
001

UNIT, TAIL, LIGHT

Part #: 33701-MFJ-A02 Required per assembly: 1
$433.33
$350.76
002

REFLECTOR, REFLEX

Part #: 33741-MS6-921 Required per assembly: 1
$16.15
$14.65
003

STAY, R., RR.

Part #: 80101-MFJ-A00 Required per assembly: 1
$10.98
$9.39
004

RUBBER, RR.

Part #: 80101-310-000 Required per assembly: 1
$3.01
$2.80
005

STAY, L., RR.

Part #: 80102-MFJ-A00 Required per assembly: 1
$10.98
$9.39
006

PLATE

Part #: 80117-MFJ-D00 Required per assembly: 1
Not Available
007

COLLAR

Part #: 90501-MJ6-000 Required per assembly: 2
$5.39
$4.85
008

CLIP (2X60)

Part #: 91410-679-000 Required per assembly: 1
$11.67
$10.61
009

NUT, FLANGE, (5MM)

Part #: 94050-05000 Required per assembly: 2
$2.33
$2.16
010

NUT, FLANGE, (5MM)

Part #: 94050-05070 Required per assembly: 1
$2.32
$2.15

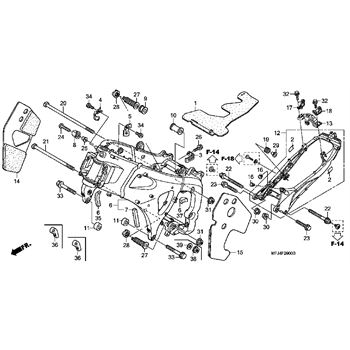

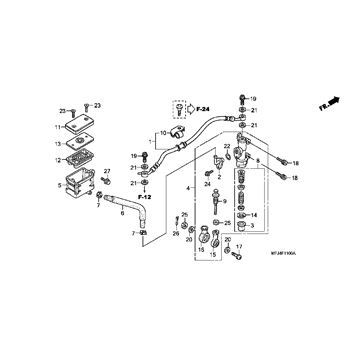

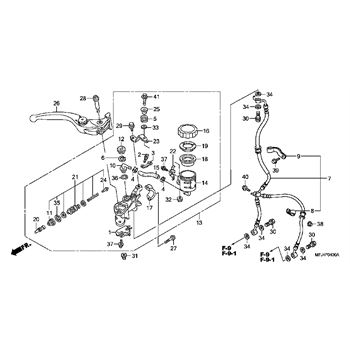

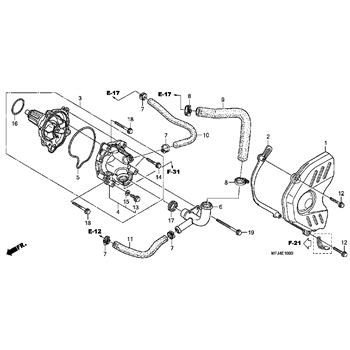

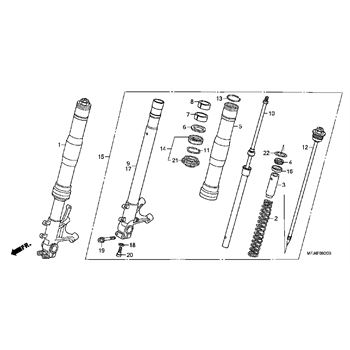

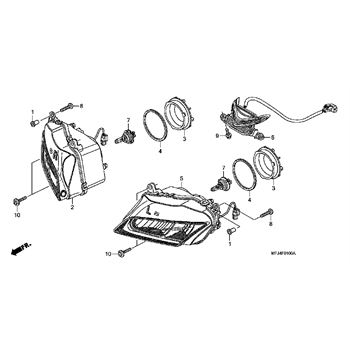

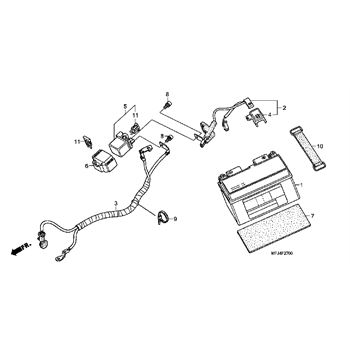

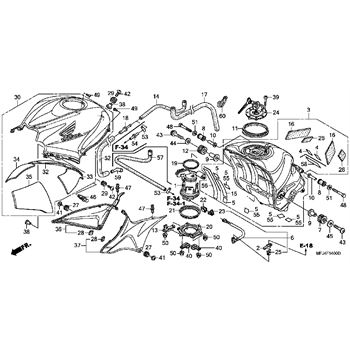

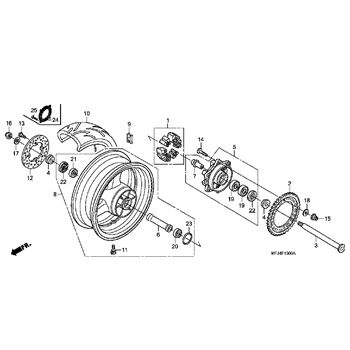

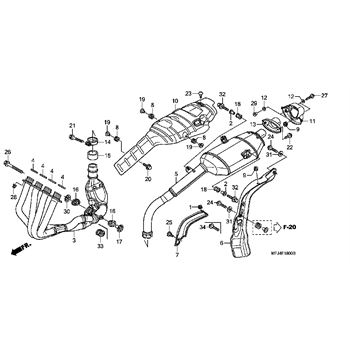

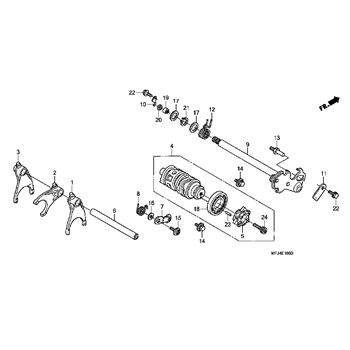

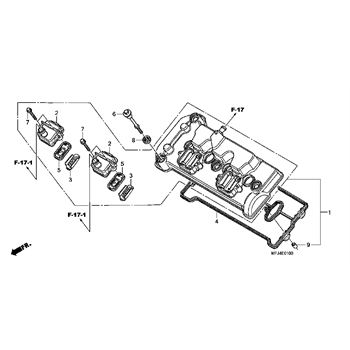

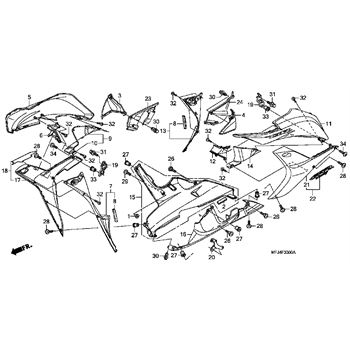

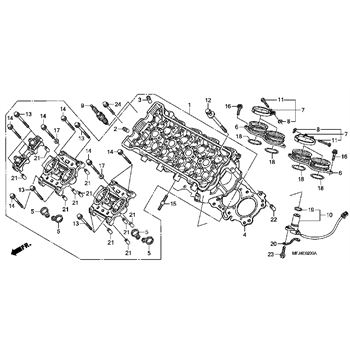

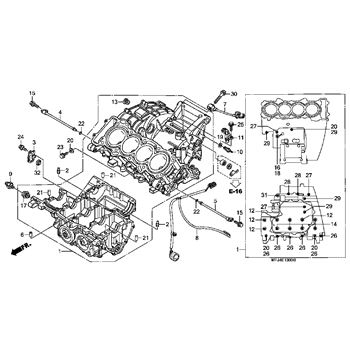

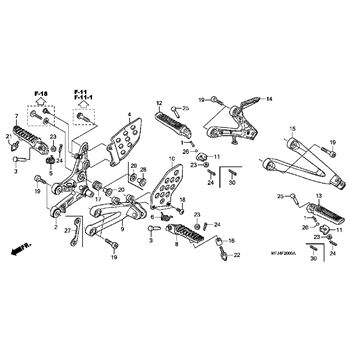

Other assembly diagrams for this model
