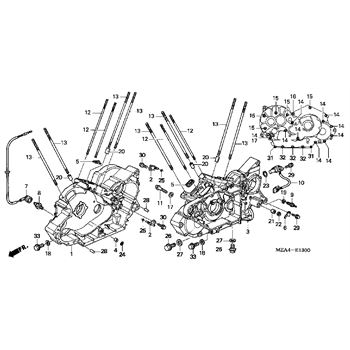

Crankcase replacement parts for 2007 Honda VTX1300S

OEM Parts Honda 2007 Honda VTX1300S Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CRANKCASE, R. Part #: 11100-MEA-670 Required per assembly: 1 $474.15 $412.51 - + Add to cart
002	JET, OIL Part #: 11140-MEA-670 Required per assembly: 2 $11.05 $9.45 - + Add to cart
003	CRANKCASE, L. Part #: 11200-MEA-670 Required per assembly: 1 $476.10 $414.21 - + Add to cart
004	COLLAR, O-RING Part #: 15155-300-000 Required per assembly: 1 $4.80 $4.36 - + Add to cart
005	VALVE, REED Part #: 18601-MN4-851 Required per assembly: 2 $54.83 $44.38 - + Add to cart
006	PLATE, SPINDLE Part #: 24612-MAL-600 Required per assembly: 1 $10.65 $9.13 - + Add to cart
007	SUB-HARNESS A Part #: 32101-MEA-670 Required per assembly: 1 Not Available
008	SWITCH, OIL, PRESSURE Part #: 35500-MJ4-024 Required per assembly: 1 $49.18 $41.01 - + Add to cart
009	SWITCH, NEUTRAL Part #: 35600-KE8-003 Required per assembly: 1 $21.91 $18.27 - + Add to cart
010	SENSOR, ASSEMBLY, SPEED Part #: 37700-MCV-003 Required per assembly: 1 $180.06 $150.15 - + Add to cart
011	BOLT (1.6MM) Part #: 90003-MCH-000 Required per assembly: 1 $9.47 $8.87 - + Add to cart
012	BOLT, STUD, (8X259) Part #: 90011-MAH-000 Required per assembly: 4 $12.72 $10.59 - + Add to cart
013	BOLT, STUD, (10X269) Part #: 90012-MBC-003 Required per assembly: 8 $19.49 $15.23 - + Add to cart
014	BOLT, FLANGE, (8X95) Part #: 90016-MEA-670 Required per assembly: 10 $3.57 - + Add to cart
015	BOLT, FLANGE, (8X105) Part #: 90017-MEA-670 Required per assembly: 5 $4.18 $3.80 - + Add to cart
016	BOLT, FLANGE, (8X115) Part #: 90018-MEA-670 Required per assembly: 1 $4.10 - + Add to cart
017	WASHER (8MM) Part #: 90441-MG8-000 Required per assembly: 2 $3.25 $3.02 - + Add to cart
018	WASHER (10MM) Part #: 90443-MB0-000 Required per assembly: 2 $4.10 $3.73 - + Add to cart
019	WASHER, NEUTRAL Part #: 90443-MJ6-000 Required per assembly: 1 $2.90 $2.70 - + Add to cart
020	PIN, DOWEL, (14X28) Part #: 90701-KAE-000 Required per assembly: 4 $2.81 $2.61 - + Add to cart
021	BEARING (14X22X16) Part #: 91106-KM1-013 Required per assembly: 1 $20.91 $16.92 - + Add to cart
022	OIL SEAL (14X22X5) Part #: 91203-KA4-771 Required per assembly: 1 $5.18 $4.71 - + Add to cart
023	O-RING (18.1X3.6) Part #: 91302-MAL-601 Required per assembly: 1 $4.86 $4.42 - + Add to cart
024	O-RING (14.8X2.4) Part #: 91356-MA6-005 Required per assembly: 1 $2.86 $2.65 - + Add to cart
025	O-RING (5X1.7) Part #: 91305-MG7-003 Required per assembly: 2 $4.18 $3.80 - + Add to cart
026	BOLT, DRAIN, (12MM) Part #: 92800-12000 Required per assembly: 2 $4.86 $4.42 - + Add to cart
027	WASHER, DRAIN, (12MM) Part #: 94109-12000 Required per assembly: 2 $2.17 $1.97 - + Add to cart
028	PIN, B, DOWEL, (10X16) Part #: 94302-10160 Required per assembly: 2 $2.76 $2.57 - + Add to cart
029	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 $2.04 $1.88 - + Add to cart
030	BOLT, FLANGE, (6X16) Part #: 95701-06016-08 Required per assembly: 2 $2.50 $2.32 - + Add to cart
031	BOLT, FLANGE, (6X55) Part #: 95701-06055-00 Required per assembly: 3 $3.14 $2.91 - + Add to cart
032	BOLT, FLANGE, (6X70) Part #: 95701-06070-00 Required per assembly: 3 $3.26 $3.03 - + Add to cart
033	BOLT, FLANGE, (10X16) Part #: 95701-10016-00 Required per assembly: 2 $2.30 $2.09 - + Add to cart
