2007 Polaris Predator 500/LE (A07GJ50AA/AB/AC) - Steering, Lower - A07gj50aa/Ab/Ac

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

ASSEMBLY, TIE, ROD

Part #: 1822994 Required per assembly: 2 Note: Asm., Tie Rod [Incl. 7-11]
Currently Not Available
1
Polaris 7661203 Pin Cotter

PIN COTTER

Part #: 7661203 Required per assembly: 4
$1.99
$1.15
2
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
3
Polaris 7555806 Washer

WASHER

Part #: 7555806 Required per assembly: 4
$1.99
$1.15
4
Polaris 7558707 Bushing, Mach.

BUSHING, MACH.

Part #: 7558707 Required per assembly: 1
Currently Not Available
5

NUT, FLANGE

Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok
Currently Not Available
6
Polaris 7518564 Bolt, Carriage

BOLT, CARRIAGE

Part #: 7518564 Required per assembly: 2
Currently Not Available
7

END, ROD, LH

Part #: 7061150 Required per assembly: 2
Currently Not Available
8
Polaris 7547389 Nut, Jam, Lh

NUT, JAM, LH

Part #: 7547389 Required per assembly: 2 Note: Nut, Jam, LH [If built after 1/01/07]
Currently Not Available
9

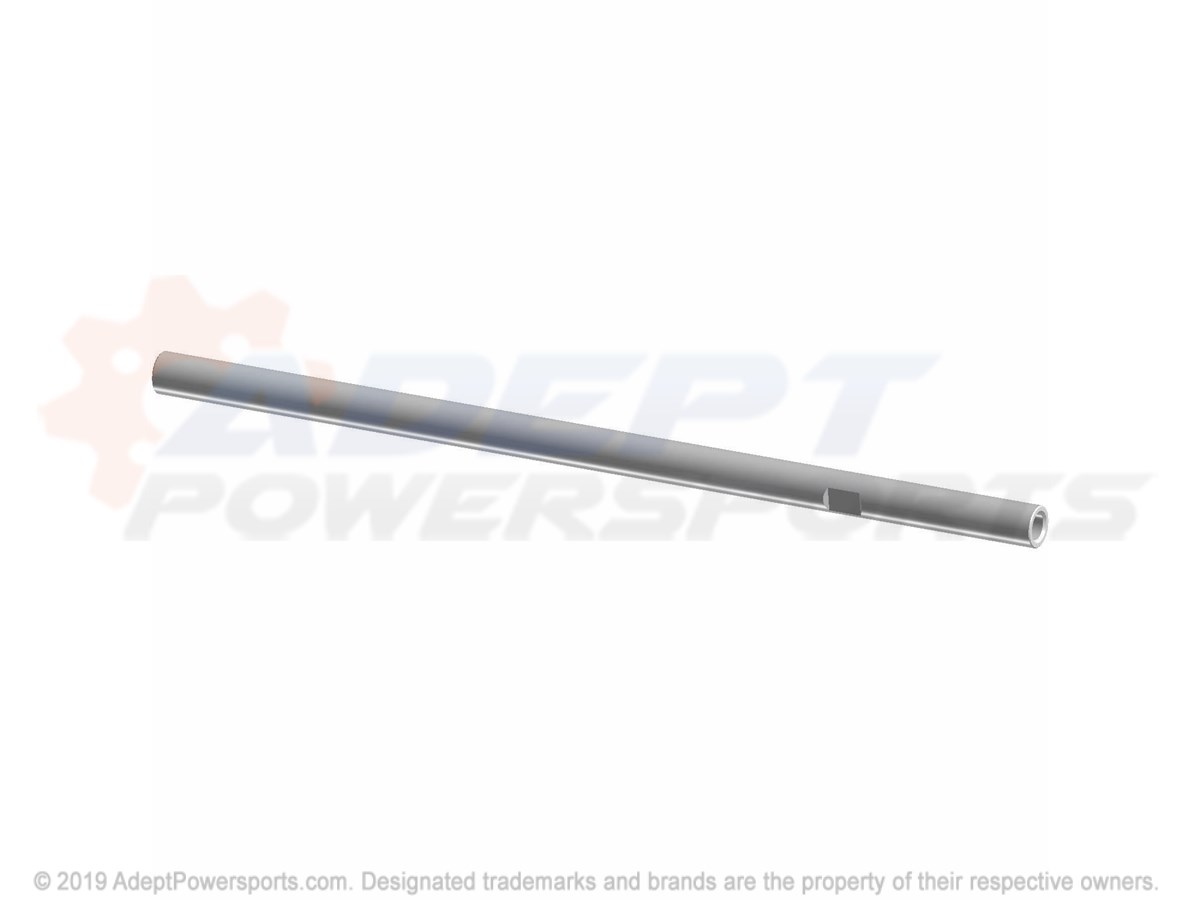

Polaris 5135636 Rod, Tie

ROD, TIE

Part #: 5135636 Required per assembly: 2
Currently Not Available
10

END, ROD, RH

Part #: 7061140 Required per assembly: 2
Currently Not Available
11
Polaris 7547390 Nut, Jam, Rh

NUT, JAM, RH

Part #: 7547390 Required per assembly: 2 Note: Nut, Jam, RH [If built after 1/01/07]
Currently Not Available
12
Polaris 7661402 Key, Cotter

KEY, COTTER

Part #: 7661402 Required per assembly: 1 Note: Pin, Cotter
Currently Not Available
13

FLANGETTE

Part #: 5249485 Required per assembly: 1
Currently Not Available
14
Polaris 3514543 Bearing, Ball, Sealed

BEARING, BALL, SEALED

Part #: 3514543 Required per assembly: 1
Currently Not Available
15
Polaris 7547065 Nut-1/2-20, Nylok, Y

NUT-1/2-20, NYLOK, Y

Part #: 7547065 Required per assembly: 1
Currently Not Available
