Electrical - A07mh68ax/Ay/Az/Mn76af/At replacement parts for 2007 Polaris Sportsman 700 EFI (A07MH68AX/AY/AZ)

OEM Parts Polaris 2007 Polaris Sportsman 700 EFI (A07MH68AX/AY/AZ) Electrical - A07mh68ax/Ay/Az/Mn76af/At

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 1 Currently Not Available
1	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 1 Note: Kit, Fusible Link Currently Not Available
1	KIT, HARNESS, TPS Part #: 2203801 Required per assembly: 1 Currently Not Available
1	KIT, HARNESS, ENGINE, TEMP Part #: 2875543 Required per assembly: 1 Currently Not Available
1	KIT, HARNESS, RESISTOR, MODULE Part #: 2204890 Required per assembly: 1 Currently Not Available

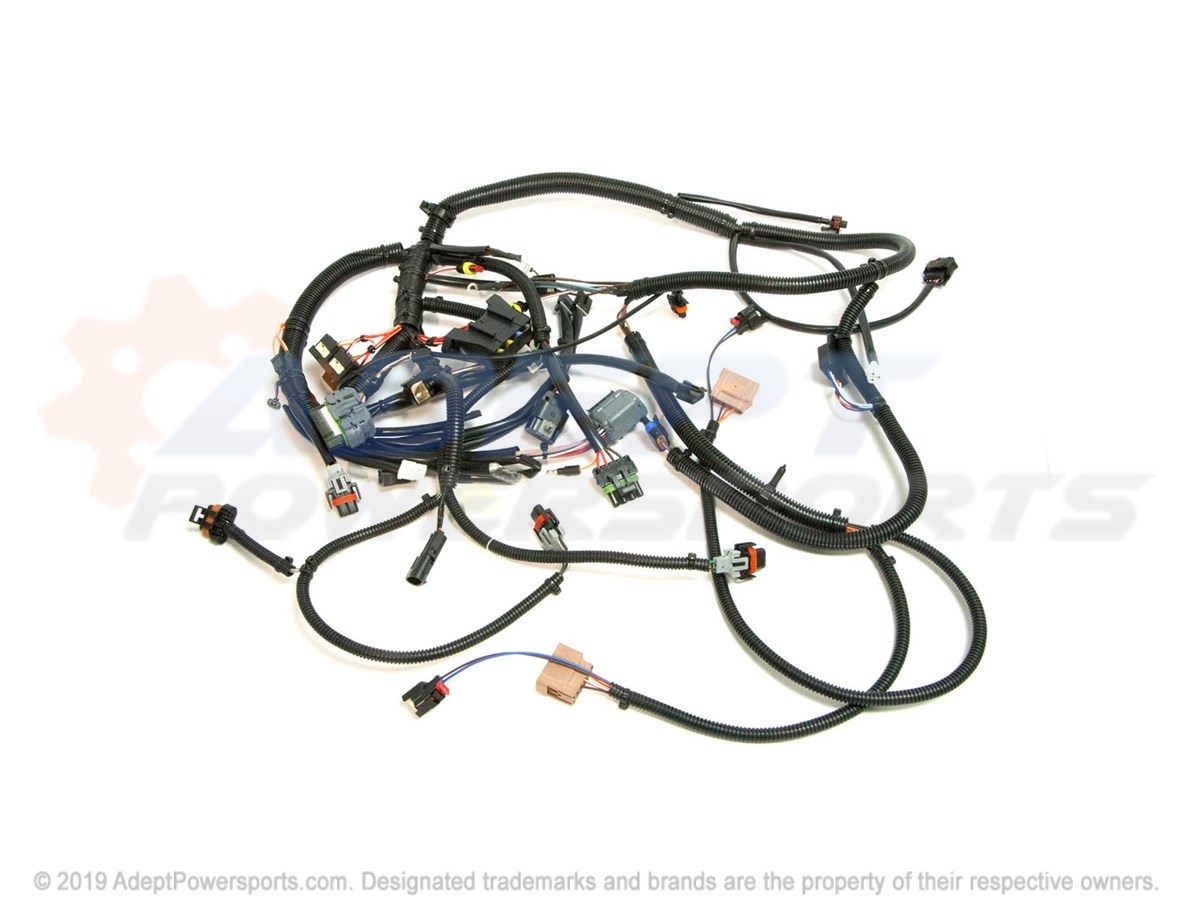

1	HARNESS, MAIN Part #: 2410937 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS, T-BAP, T-MAP Part #: 2878494 Required per assembly: 1 Currently Not Available
1	CIRCUIT, BREAKER, 20, AMP Part #: 2410323 Required per assembly: 1 Note: Breaker, Circuit, 20 AMP Currently Not Available
2	HARNESS, WINCH Part #: 2410837 Required per assembly: 1 Note: Harness, Winch Currently Not Available
3	BOX, BATTERY Part #: 5435696 Required per assembly: 1 Currently Not Available
4	WASHER, FLAT Part #: 7555859 Required per assembly: 2 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
5	BOLT Part #: 7512232 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
6	TUBE, BATTERY, VENT Part #: 5432077 Required per assembly: 1 Currently Not Available
6	BATTERY, 30, AMP, TOP, MOUNT Part #: 4010630 Aftermarket alternatives available Required per assembly: 1 Note: Required on Ranger EV, LSV with Warn 3.0 Integrated Winch. Part Number 2877865. Yuasa YB30L-B (no acid) Sold in multiples of 2 only Currently Not Available
7	KIT, BATTERY, BOLT Part #: 2202099 Required per assembly: 1 Note: Kit, Battery Bolt (If built after 7/09/01) Currently Not Available
8	PAD, RACK, MOUNT Part #: 5810455 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
9	STRAP, BATTERY, HOLDDOWN Part #: 5247376 Required per assembly: 1 Currently Not Available
10	BOOT, BATTERY, CABLE, RECT. Part #: 5412874 Required per assembly: 1 Note: Boot, Battery Cable, Rect Currently Not Available
11	CABLE, BATTERY/FRAME Part #: 4011139 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
13	CABLE, BATTERY/SOLENOID Part #: 4010471 Required per assembly: 1 Currently Not Available
14	SOLENOID, STARTER, C1100, W/WASHER Part #: 4014471 Required per assembly: 1 Currently Not Available
15	CLAMP, CABLE, Part #: 7080367 Required per assembly: 1 Note: Clamp, Cable Currently Not Available
16	RIVET Part #: 7661855 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
17	RELAY Part #: 4011141 Required per assembly: 2 Currently Not Available
18	ECU Part #: 4011599 Required per assembly: 1 Currently Not Available
19	NUT, FLANGE Part #: 7547270 Required per assembly: 2 Note: Nut, Hex Currently Not Available
20	BRACKET, FUSE, BLOCK Part #: 5250236 Required per assembly: 1 Currently Not Available
21	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
22	CABLE, SOLENOID/STARTER Part #: 4010376 Required per assembly: 1 ~~$44.99~~ $23.74 - + Add to cart
23	SCREW Part #: 7515156 Required per assembly: 1 Currently Not Available
24	SPACER, COIL Part #: 5436577 Required per assembly: 1 Note: Spacer, Coil Mount Currently Not Available
25	KIT, IGNITION, COIL Part #: 2876049 Required per assembly: 1 Note: Coil Currently Not Available
26	NUT-LOCK Part #: 7542122 Required per assembly: 1 Currently Not Available
27	WIRE, SPARK, PLUG Part #: 4011365 Required per assembly: 1 Note: Wire, Spark Plug, 59.3cm Currently Not Available
28	WIRE, SPARK, PLUG Part #: 4011364 Required per assembly: 1 Note: Wire, Spark Plug, 49.5cm Currently Not Available
29	SCREW Part #: 7518486 Required per assembly: 2 Currently Not Available
30	CLAMP Part #: 7080585 Required per assembly: 1 Currently Not Available
31	FUSE, 20, AMP Part #: 4011683 Required per assembly: 2 Currently Not Available
32	FUSE, 15, AMP Part #: 4011682 Required per assembly: 1 Currently Not Available
33	FUSE, 5, AMP Part #: 4011681 Required per assembly: 1 Currently Not Available
34	SCREW Part #: 7512024 Required per assembly: 9 Currently Not Available
35	BRACKET, VOLTAGE, REGULATOR Part #: 5253219 Required per assembly: 1 Note: Bracket, Voltage Regulator Currently Not Available
36	MOUNT, CABLE, TIE Part #: 7080965 Required per assembly: 2 Currently Not Available
37	STRAP PANDUIT Part #: 7080138 Required per assembly: 11 ~~$1.99~~ $1.15 - + Add to cart
38	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 10 Currently Not Available
39	REGULATOR Part #: 4012384 Required per assembly: 1 Note: Regulator Currently Not Available
