OEM Parts Polaris 2007 Polaris Sportsman 800 EFI (A07MH76AL/AQ/AX/AY/AZ/A2/) Clutch, Driven - A07mh76ax/Ay/Az

2007 Polaris Sportsman 800 EFI (A07MH76AL/AQ/AX/AY/AZ/A2/) - Clutch, Driven - A07mh76ax/Ay/Az

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

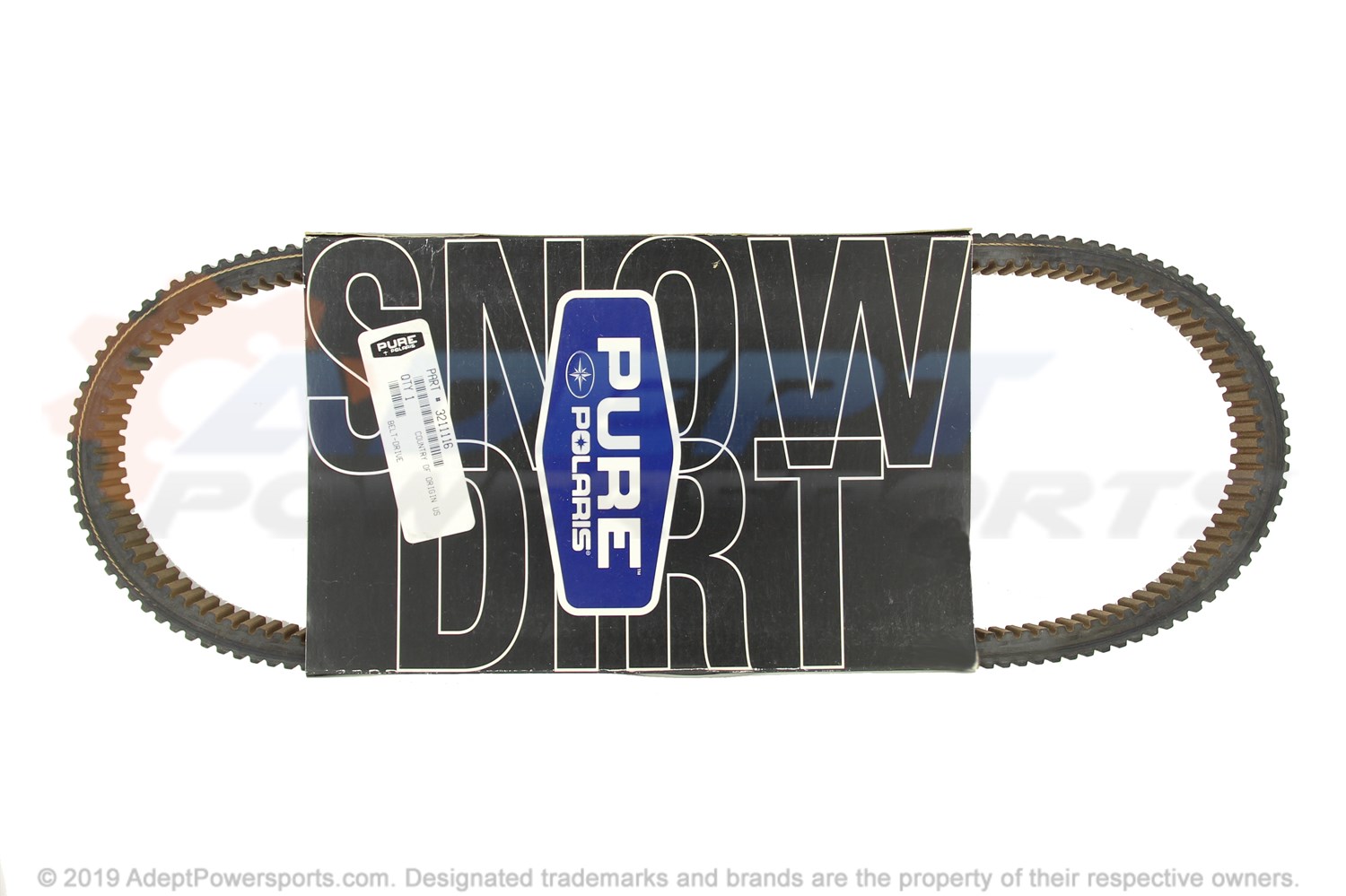

Polaris 3211116 Belt, Drive

BELT, DRIVE

Part #: 3211116 Required per assembly: 1
Currently Not Available
2

WASHER-.906 X 1.38 X .060"

Part #: 7556120 Note: The next small shim is 7556454 WASHER-.906 X 1.38 X .030"
$2.99
$1.73
-
+
Add to cart
3

ASSEMBLY, DRIVEN, CLUTCH

Part #: 1322712 Required per assembly: 1 Note: Asm., Driven Clutch [Incl. 7-11]
Currently Not Available
4
Polaris 5250562 Washer, Domed

WASHER, DOMED

Part #: 5250562 Required per assembly: 1
Currently Not Available
5
Polaris 7552901 Lock Washer

LOCK WASHER

Part #: 7552901 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
6
Polaris 7515382 Bolt

BOLT

Part #: 7515382 Required per assembly: 1 Note: Bolt
Currently Not Available
7

RETAINER, SPRING, OUTER

Part #: 7710563 Required per assembly: 1
Currently Not Available
8

SPRING, COMPRESSION

Part #: 7043167 Required per assembly: 1
Currently Not Available
9

K-CLUTCH, PTD, SPIDER, DAMPER

Part #: 2206554 Required per assembly: 1
Currently Not Available
10

RING, RETAINING, EXT, 1.500

Part #: 7710522 Required per assembly: 1
Currently Not Available
11
Polaris 7556804 Washer

WASHER

Part #: 7556804 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
