OEM Parts Polaris 2007 Polaris Sportsman X2 800 EFI (A07TH76AU/TN76AF/AL/AU) Brake, Rear And Foot Pedal - A07th76au/Tn76af/Al/Au

2007 Polaris Sportsman X2 800 EFI (A07TH76AU/TN76AF/AL/AU) - Brake, Rear And Foot Pedal - A07th76au/Tn76af/Al/Au

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1911545 Assembly, Caliper, Brake, Rh

ASSEMBLY, CALIPER, BRAKE, RH

Part #: 1911545 Required per assembly: 1
Currently Not Available
2
Polaris 7558402 Washer Steel

WASHER STEEL

Part #: 7558402 Required per assembly: 4
$1.34
$0.97
-
+
Add to cart
3
Polaris 7552901 Lock Washer

LOCK WASHER

Part #: 7552901 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
4
Polaris 7512365 Screw, Cap

SCREW, CAP

Part #: 7512365 Required per assembly: 4
$4.79
$1.73
-
+
Add to cart
5
Polaris 5413212 Seal

SEAL

Part #: 5413212 Required per assembly: 6
$9.99
$5.85
-
+
Add to cart
6

BOLT-BANJO, 10MMX1.00

Part #: 1910499 Required per assembly: 2 Note: Bolt, Banjo
Currently Not Available
7
Polaris 1911544 Assembly, Caliper, Lh,

ASSEMBLY, CALIPER, LH,

Part #: 1911544 Required per assembly: 1
Currently Not Available
8

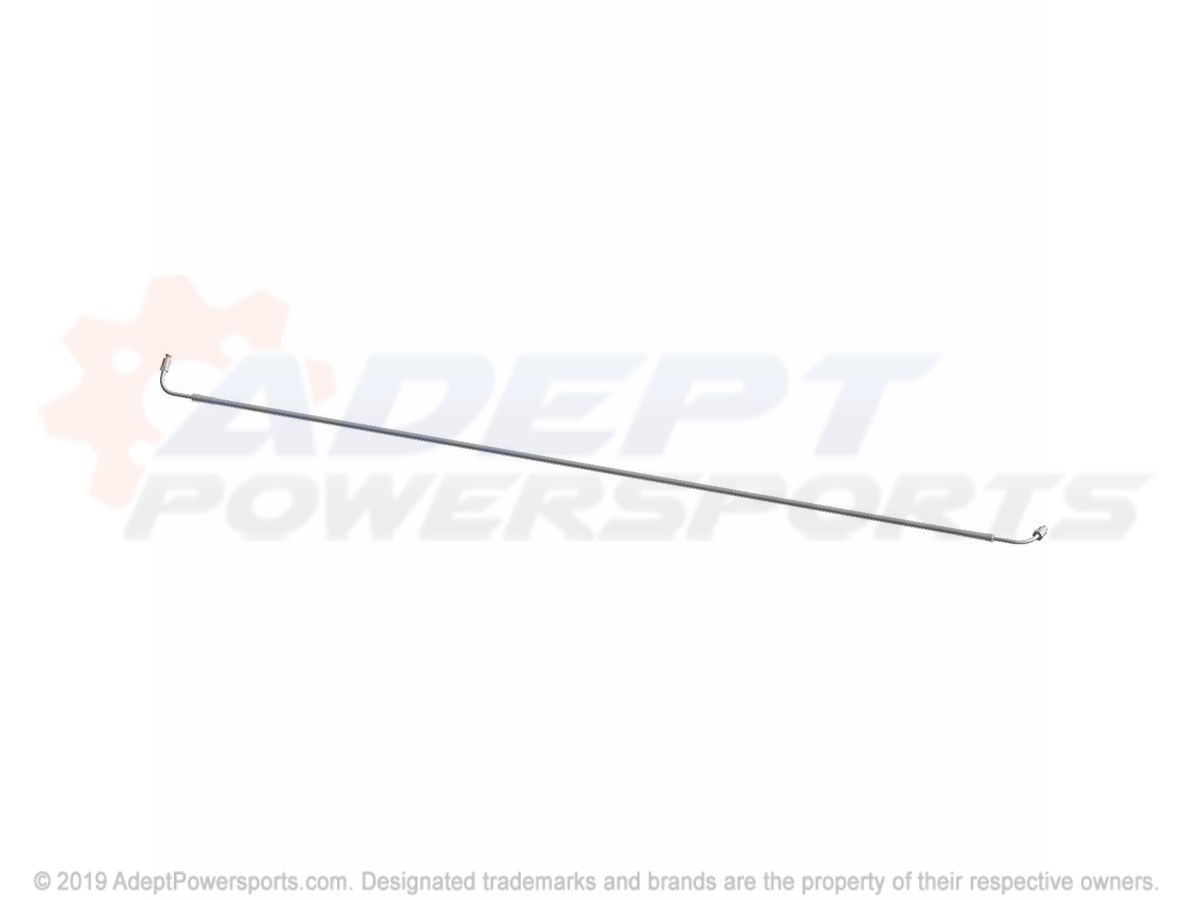

LINE, REAR, BRAKE

Part #: 1910979 Required per assembly: 1 Note: Line, Brake, Rear
Currently Not Available
9
Polaris 7542153 Nut

NUT

Part #: 7542153 Required per assembly: 1 Note: Nut, Flanged, Nylok
$3.47
$2.30
-
+
Add to cart
10
Polaris 7080138 Strap Panduit

STRAP PANDUIT

Part #: 7080138 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
11
Polaris 7080003 Clamp, Hose

CLAMP, HOSE

Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red
Currently Not Available
12

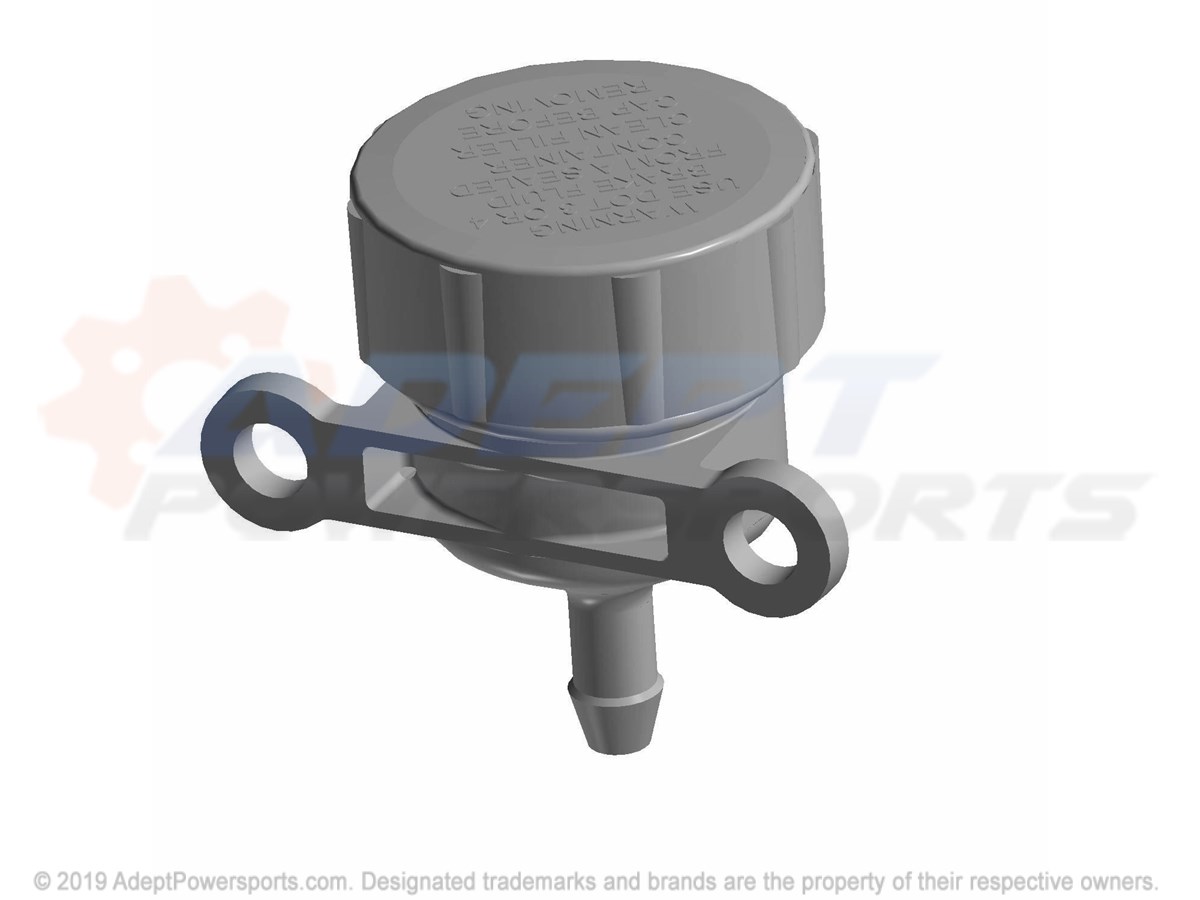

Polaris 1910982 Reservoir, Brake, Rear

RESERVOIR, BRAKE, REAR

Part #: 1910982 Required per assembly: 1
Currently Not Available
13
Polaris 7512240 Bolt

BOLT

Part #: 7512240 Required per assembly: 1
Currently Not Available
14
Polaris 1911267-790 Hose, Reservoir

HOSE, RESERVOIR

Part #: 1911267-790 Required per assembly: 1
Currently Not Available
15

CLIP, SILENCER,

Part #: 7670102 Required per assembly: 2 Note: Clip
Currently Not Available
16
Polaris 1910980 Line, Jb, To, Ft, M/C

LINE, JB, TO, FT, M/C

Part #: 1910980 Required per assembly: 1
Currently Not Available
17
Polaris 1913033 Asm-M/Cyl, Dirmc, 3/4", B/U-Ring

ASM-M/CYL, DIRMC, 3/4", B/U-RING

Part #: 1913033 Required per assembly: 1
Currently Not Available
18

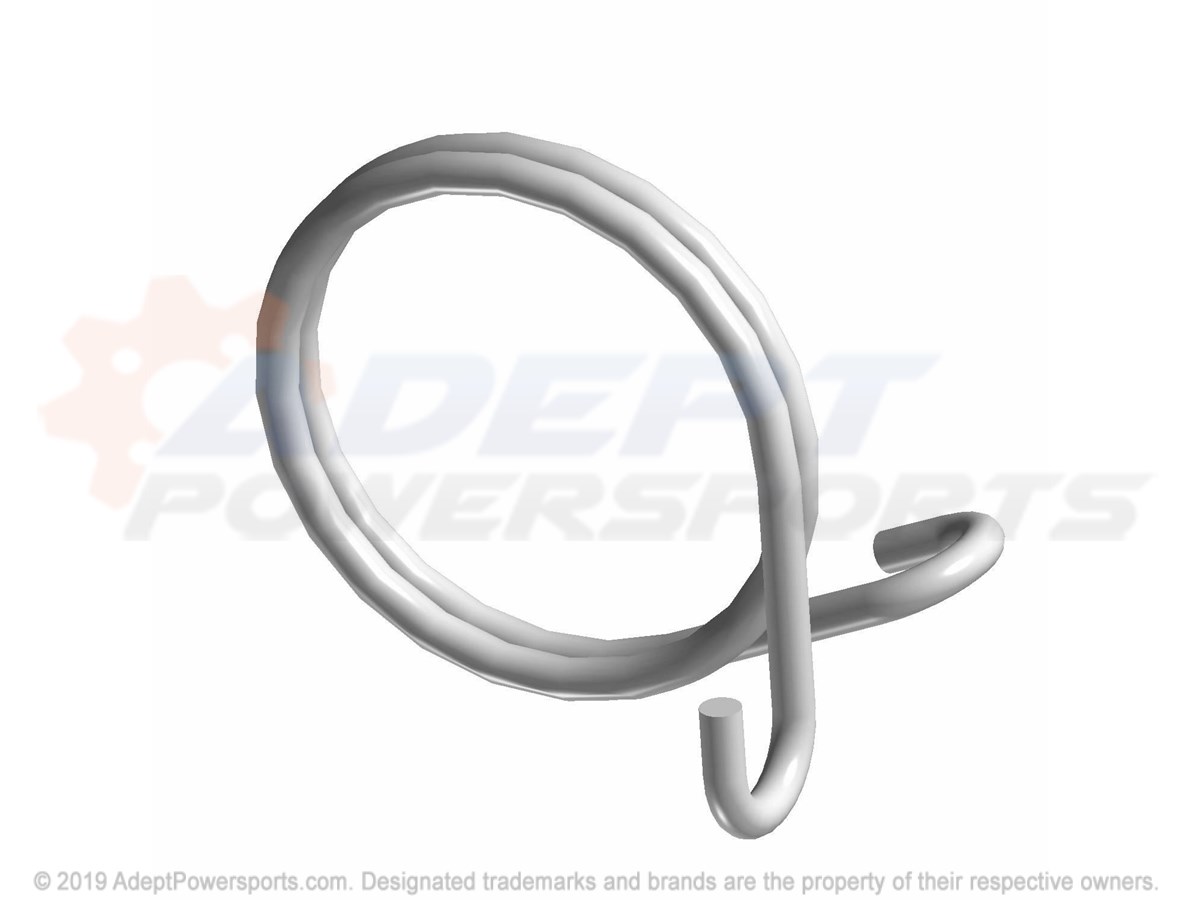

Polaris 7043276 Spring, Torsion

SPRING, TORSION

Part #: 7043276 Required per assembly: 1
Currently Not Available
19
Polaris 7555919 Washer

WASHER

Part #: 7555919 Required per assembly: 2 Note: Washer
Currently Not Available
20
Polaris 5433189 Bushing-Pedal Pivot

BUSHING-PEDAL PIVOT

Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot
Currently Not Available
21

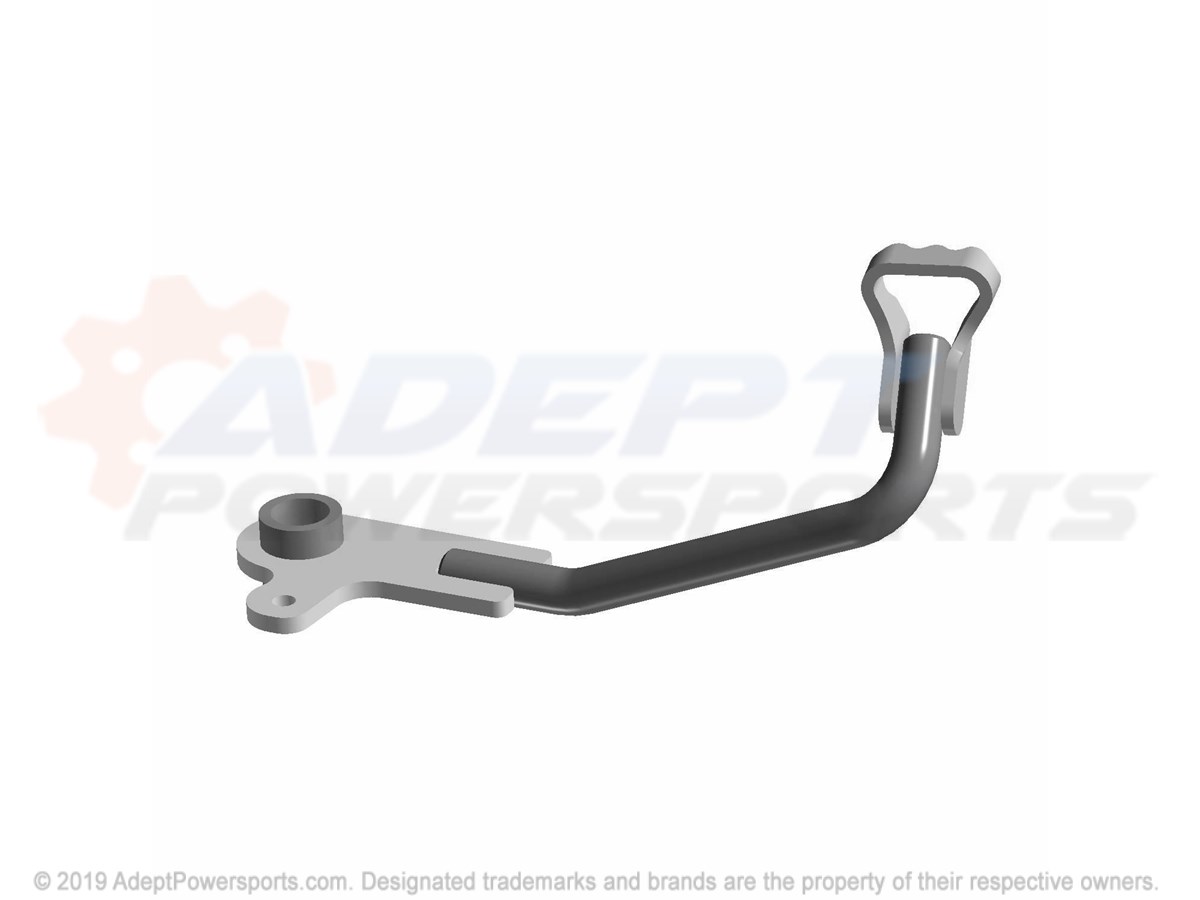

Polaris 1910919-067 Pedal, Brake

PEDAL, BRAKE

Part #: 1910919-067 Required per assembly: 1
Currently Not Available
22
Polaris 7661401 Cotter Pin

COTTER PIN

Part #: 7661401 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
23

BOLT

Part #: 7512130 Required per assembly: 2
Currently Not Available
24

BOLT, BANJO

Part #: 1910958 Required per assembly: 1
Currently Not Available
25

CLAMP, RUBBER-COATED, .562

Part #: 7080573 Required per assembly: 1
Currently Not Available
26
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 7 Note: Screw
$2.99
$1.73
-
+
Add to cart
27

CLAMP, HOSE

Part #: 7080683 Required per assembly: 5
Currently Not Available
28

CLAMP-HOSE, .625, DIA, VNL, COATED

Part #: 7080880 Required per assembly: 2 Note: Clamp, Hose
Currently Not Available
29

SCREW

Part #: 7517380 Required per assembly: 2
Currently Not Available
