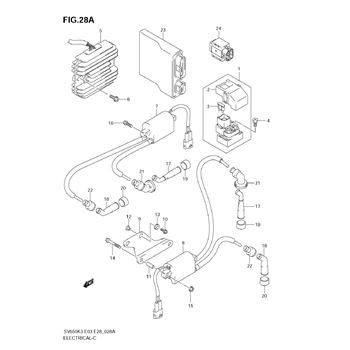

Electrical (Model K7) replacement parts for 2007 Suzuki SV650A

OEM Parts Suzuki 2007 Suzuki SV650A Electrical (Model K7)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RELAY, ASSEMBLY, STARTING, MOTOR Part #: 31800-06G02 Required per assembly: 1 $83.16 $71.09 - + Add to cart
2	COVER Part #: 31861-47E00 Required per assembly: 1 Note: COVER, RELAY ASSY; $17.46 $14.92 - + Add to cart
3	FUSE, 30A Part #: 09481-30101 Required per assembly: 2 $2.75 $2.48 - + Add to cart
4	SCREW Part #: 09128-06013 Required per assembly: 2 Note: BOLT, STG MOT TERM; $1.50 $1.35 - + Add to cart
5	RECTIFIER ASSEMBLY Part #: 32800-16G02 Required per assembly: 1 $261.06 $223.20 - + Add to cart
6	BOLT, RECT, FTG, BRAKET Part #: 02162-0620C Required per assembly: 2 $2.10 $1.89 - + Add to cart
7	COIL, ASSEMBLY, IGNITION, (L:380) Part #: 33410-17GA0 Required per assembly: 1 Note: FOR FRONT Not Available
8	COIL, ASSEMBLY, IGNITION, (L:350) Part #: 33420-17GA2 Required per assembly: 1 $148.39 $133.55 - + Add to cart
9	BRACKET, IGN, COIL, REAR Part #: 33424-17GA0 Required per assembly: 1 Not Available
10	BOLT Part #: 09116-06130 Required per assembly: 2 $2.56 $2.30 - + Add to cart
11	SPACER (6.4X10X18) Part #: 09180-06195 Required per assembly: 2 $4.70 $4.23 - + Add to cart
12	SPACER, FUEL, CUT Part #: 09180-06325 Required per assembly: 2 $4.68 $4.21 - + Add to cart
13	CUSHION Part #: 09320-08516 Required per assembly: 2 Note: CUSHION, FUEL CUT; $2.58 $2.32 - + Add to cart
14	BOLT Part #: 01547-0640A Required per assembly: 2 $2.79 $2.51 - + Add to cart
15	NUT Part #: 08316-1006A Required per assembly: 2 $2.64 $2.38 - + Add to cart
16	BOLT Part #: 01547-0620B Required per assembly: 2 $3.03 $2.73 - + Add to cart
17	CAP, ASSEMBLY, SPARK, PLUG Part #: 33510-17G00 Required per assembly: 2 $41.33 $35.33 - + Add to cart
18	CAP, ASSEMBLY, SPARK, (SIDE) Part #: 33510-20E00 Required per assembly: 2 Note: CAP ASSY, SPARK PLUG; $37.38 $33.64 - + Add to cart
19	SEAL, SPARK, PLUG Part #: 33541-23E01 Required per assembly: 2 Note: SEAL, SPARK PLUG CAP; $8.18 $7.36 - + Add to cart
20	SEAL, SPARK, PLUG Part #: 33541-47D00 Required per assembly: 2 $9.67 $8.70 - + Add to cart
21	SEAL, HIGH, TENSION, CORD Part #: 33542-17G01 Required per assembly: 2 $8.78 $7.90 - + Add to cart
22	SEAL, HIGHTENSION, CORD Part #: 33542-38B00 Required per assembly: 2 Note: SEAL, HIGH TENSION CORD; $30.87 $26.39 - + Add to cart
23-1	CONTROL, UNIT, FI Part #: 32920-17GC1 Required per assembly: 1 Not Available
23-2	CONTROL, UNIT, FI Part #: 32920-17GD0 Required per assembly: 1 Note: E33 - US California model Not Available
24	SENSOR, ASSEMBLY, FUEL, CUT Part #: 33960-06G10 Required per assembly: 1 $116.08 $99.24 - + Add to cart
