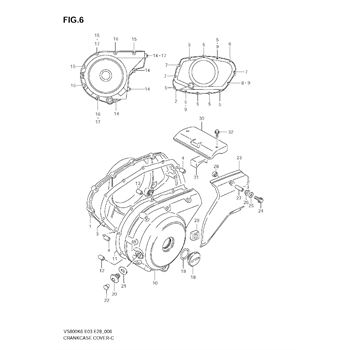

Crankcase Cover replacement parts for 2007 Suzuki VS800

OEM Parts Suzuki 2007 Suzuki VS800 Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COVER, CLUTCH Part #: 11340-38A00 Required per assembly: 1 $397.56 $357.80 - + Add to cart
2	LENS, OIL, CHECK Part #: 11971-33210 Required per assembly: 1 Note: LENS, OIL LEVEL; $22.49 $19.22 - + Add to cart
3	GASKET, CLUTCH, COVER Part #: 11482-41F00 Required per assembly: 1 $21.17 $18.10 - + Add to cart
4	PIN Part #: 04211-09189 Required per assembly: 2 $1.99 $1.79 - + Add to cart
5	BOLT (6X30) Part #: 09103-06213 Required per assembly: 8 Note: BOLT (L:30); $2.87 $2.58 - + Add to cart
6	BOLT (6X35) Part #: 09103-06214 Required per assembly: 1 Note: BOLT; $3.01 $2.71 - + Add to cart
7	BOLT Part #: 09103-06224 Required per assembly: 3 $3.13 $2.82 - + Add to cart
8	BOLT (6X60) Part #: 09103-06261 Required per assembly: 1 $3.91 $3.52 - + Add to cart
9	GASKET Part #: 09168-06023 Required per assembly: 3 Note: Sold in multiples of 10 only $2.45 $2.21 - + Add to cart
10	COVER, GENERATOR Part #: 11351-45C20 Required per assembly: 1 Not Available
11	GASKET, GENERATOR, COVER Part #: 11483-41F00 Required per assembly: 1 $18.34 $15.68 - + Add to cart
12	PIN Part #: 09206-11007 Required per assembly: 1 $2.56 $2.30 - + Add to cart
13	PIN Part #: 04211-09189 Required per assembly: 1 $1.99 $1.79 - + Add to cart
14	BOLT (6X30) Part #: 09103-06213 Required per assembly: 4 Note: BOLT (L:30); $2.87 $2.58 - + Add to cart
15	BOLT (L:40) Part #: 09103-06215 Required per assembly: 4 Note: BOLT; $3.27 $2.94 - + Add to cart
16	BOLT Part #: 09103-06238 Required per assembly: 2 $3.21 $2.89 - + Add to cart
17	GASKET Part #: 09168-06023 Required per assembly: 3 Note: Sold in multiples of 10 only $2.45 $2.21 - + Add to cart
18	PLUG Part #: 09259-36008 Required per assembly: 1 Note: PLUG, CRANKSHAFT HOLE; $9.95 $8.96 - + Add to cart
19	O, RING, (D:3.1, ID:32.7) Part #: 09280-33004 Required per assembly: 1 Note: O RING, CRANKSHAFT HOLE PLUG; NOT SHOWN $2.80 $2.52 - + Add to cart
20	PLUG, T.D.C Part #: 09248-14011 Required per assembly: 1 $3.79 $3.41 - + Add to cart
21	GASKET Part #: 09168-14004 Required per assembly: 1 Note: GASKET, OIL PRESSURE PLUG; $1.92 $1.73 - + Add to cart
22	CAP Part #: 09250-08014 Required per assembly: 1 Note: CAP, T.D.C. PLUG; MODEL K1/K2 $3.47 $3.12 - + Add to cart
23	COVER, SECONDARY, DRIVE Part #: 11361-38A50 Required per assembly: 1 Not Available
24	BOLT Part #: 09103-06224 Required per assembly: 3 $3.13 $2.82 - + Add to cart
25	WASHER Part #: 09160-06125 Required per assembly: 3 $2.30 $2.07 - + Add to cart
26	CUSHION, OUTER Part #: 09161-09006 Required per assembly: 3 Note: CUSHION; $2.75 $2.48 - + Add to cart
27	SPACER Part #: 09180-06278 Required per assembly: 3 Note: SPACER, LICENSE LAMP; 6.5X9X33.3 $4.76 $4.28 - + Add to cart
28	CUSHION, INNER Part #: 09161-09005 Required per assembly: 3 Note: CUSHION; $2.72 $2.45 - + Add to cart
29	DAMPER, SECONDARY, COVER Part #: 11369-38A00 Required per assembly: 1 Not Available
30	COVER, STARTER, MOTOR Part #: 31210-38A01 Required per assembly: 1 Not Available
31	DAMPER, MOTOR, COVER Part #: 31212-38A10 Required per assembly: 1 Not Available
32	BOLT Part #: 01547-05087 Required per assembly: 2 $1.81 $1.63 - + Add to cart
