2008 Aprilia Mojito 125 E3 - Rear Body - Undersaddle

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

RH UNDERSADDLE, AP.BLACK C

Part #: AP8249210 Note: X
Currently Not Available
2

LH UNDERSADDLE, AP.BLACK C

Part #: AP8249211 Note: X
Currently Not Available
3

SCREW 5, 5X20

Part #: AP8152345
$0.28
$0.25
-
+
Add to cart
4

CLIP

Part #: AP8202449
Currently Not Available
5

SCREW CLIP D5, 5*

Part #: AP8201763
$0.32
$0.26
-
+
Add to cart
6

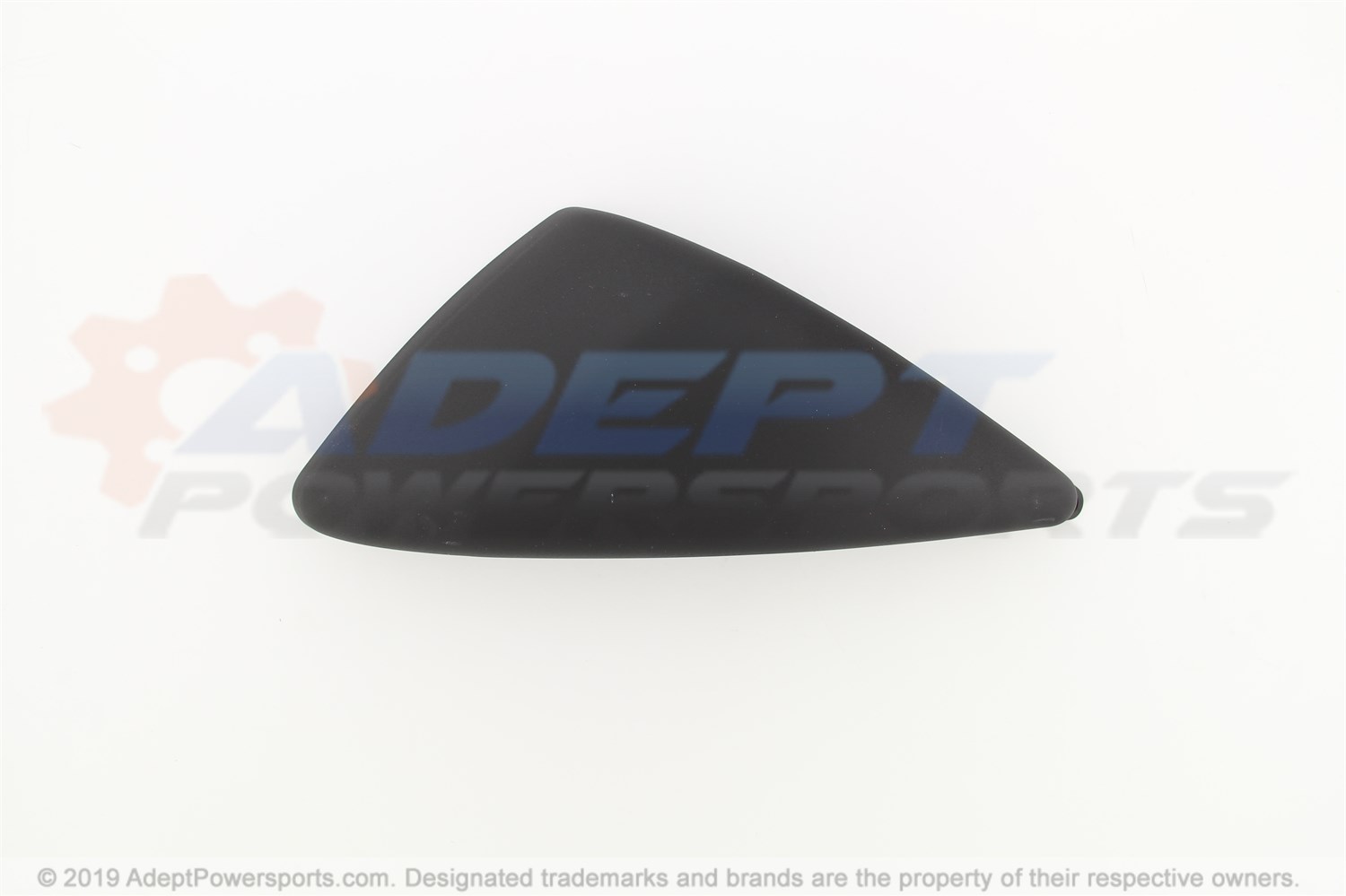

RH REAR FOOTREST COVER, BLACK C

Part #: AP8148637 Note: X
Currently Not Available
7

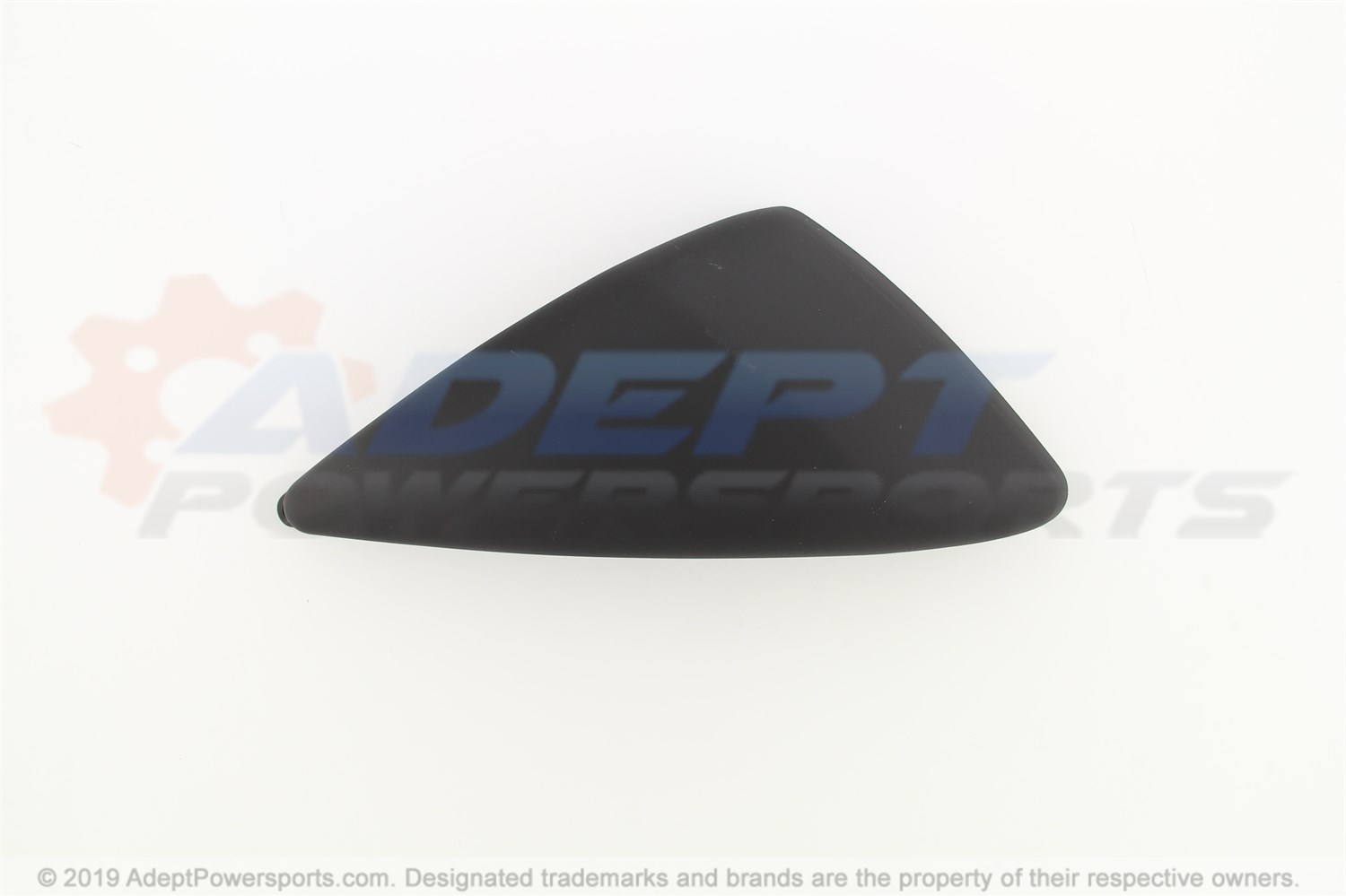

LH REAR FOOTREST COVER, BLACK C

Part #: AP8148639 Note: X
Currently Not Available
8

CLIP M4

Part #: AP8102381
Currently Not Available
9

SCREW 4, 2X20*

Part #: AP8150270
Currently Not Available
