Rear - M08rh76ma replacement parts for 2008 Polaris MVRS 800 4X4 - M08RH76MA

OEM Parts Polaris 2008 Polaris MVRS 800 4X4 M08RH76MA Rear - M08rh76ma

Rear - M08RH76MA Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT Part #: 7518903 Required per assembly: 8 Currently Not Available
2	DISC, BRAKE, REAR Part #: 5248250 Aftermarket alternatives available Required per assembly: 2 Currently Not Available
3	STUD Part #: 7515513 Required per assembly: 8 ~~$2.99~~ $2.23 - + Add to cart

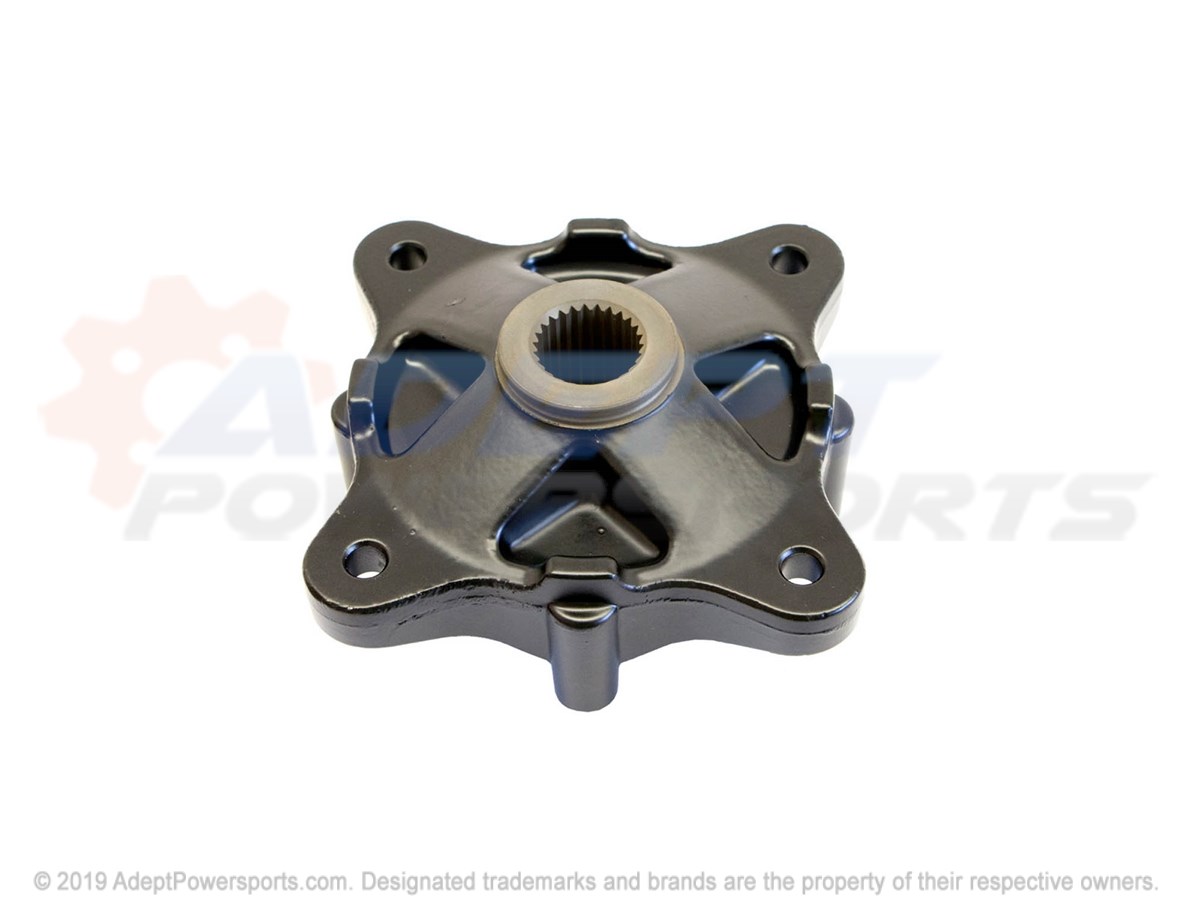

4	HUB, WHEEL, REAR, [AH] Part #: 5135113-458 Required per assembly: 2 Currently Not Available
5	RIM, REAR, MILITARY, TAN Part #: 1520797-686 Required per assembly: 2 Currently Not Available
6	TIRE, REAR, 25X10-12 Part #: 5413895 Required per assembly: 2 Currently Not Available
7	WASHER, FLAT Part #: 7556242 Required per assembly: 8 Currently Not Available
8	NUT, FLANGED Part #: 7542459 Required per assembly: 8 Currently Not Available
9	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
10	NUT, CASTLE Part #: 7543005 Required per assembly: 2 Currently Not Available
11	COVER, DUST, HUB Part #: 5413427 Required per assembly: 2 Currently Not Available
12	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
13	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
