OEM Parts Polaris 2008 Polaris Outlaw 450 S (A08GJ45AA) Brakes, Front Brake And Master Cylinder - A08gj45aa

2008 Polaris Outlaw 450 S (A08GJ45AA) - Brakes, Front Brake And Master Cylinder - A08gj45aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASSEMBLY, MASTER, CYLINDER, W/REV., BRACKET, 14MM

Part #: 1911218 Required per assembly: 1 Note: Asm., Master Cylinder
Currently Not Available
2

SCREW, RESERVOIR, CLAMP

Part #: 2203251 Required per assembly: 1
Currently Not Available
3

BRACKET, REVERSE, LEVER

Part #: 5135514 Required per assembly: 1
Currently Not Available
4

SCREW, RESERVOIR, COVER

Part #: 2203250 Required per assembly: 1
Currently Not Available
5

KIT, RESERVOIR, COVER

Part #: 2203249 Required per assembly: 1
Currently Not Available
6

ASSEMBLY, MASTER, CYLINDER, W/REV., BRACKET, 14MM

Part #: 1911218 Required per assembly: 1 Note: Asm., Master Cylinder
Currently Not Available
7

SWITCH, BRAKE, LIGHT, MECHANICAL

Part #: 2203253 Required per assembly: 1
Currently Not Available
8

NUT, PIVOT, PIN

Part #: 2203252 Required per assembly: 1
Currently Not Available
9

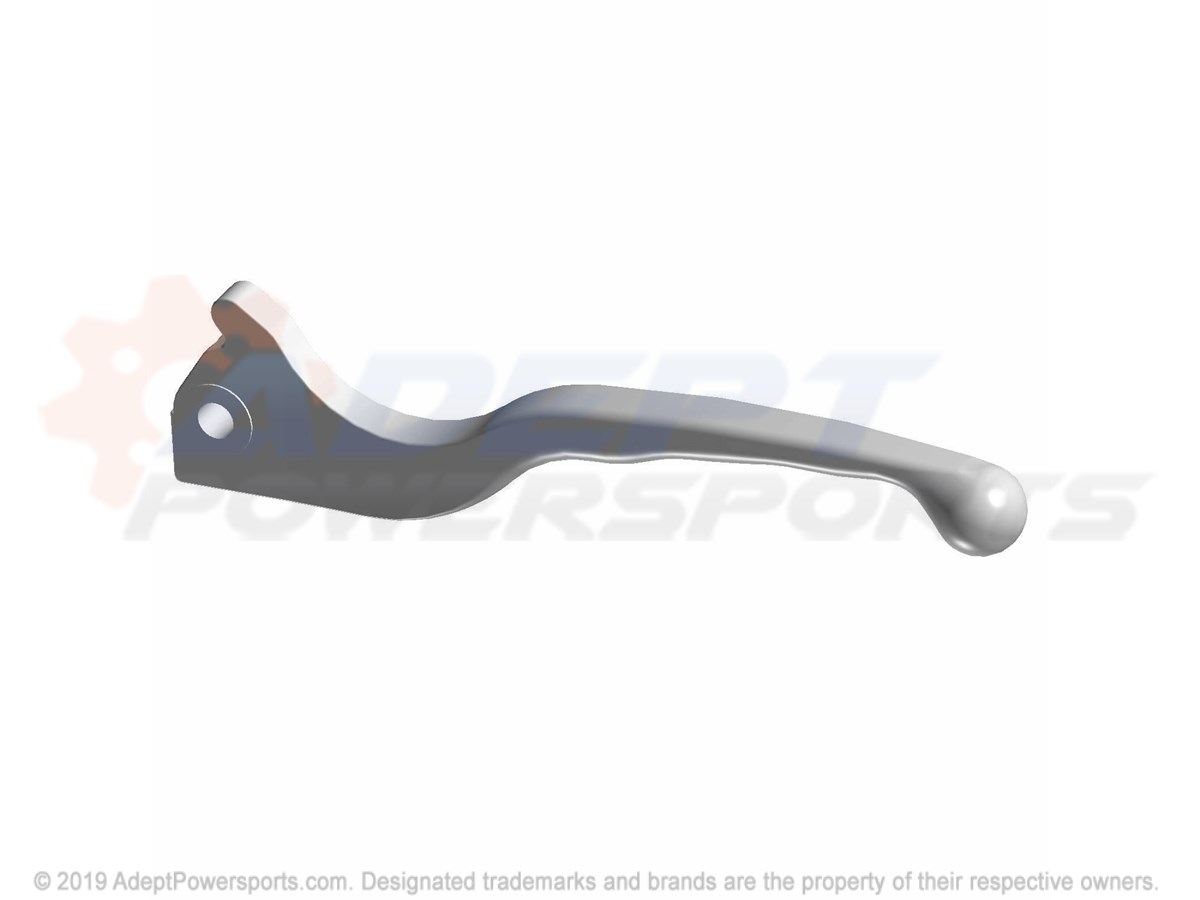

Polaris 5631979 Lever, Brake, Rh

LEVER, BRAKE, RH

Part #: 5631979 Required per assembly: 1
Currently Not Available
9

N/A, USE, COMPONENTS

Part #: 9990000 Required per assembly: 1
Currently Not Available
