Electrical, Wire Harnesses - R08rh50af/Ar/At replacement parts for 2008 Polaris RANGER 4X4 500 EFI (R08RH50AF/AR/AT)

OEM Parts Polaris 2008 Polaris RANGER 4X4 500 EFI (R08RH50AF/AR/AT) Electrical, Wire Harnesses - R08rh50af/Ar/At

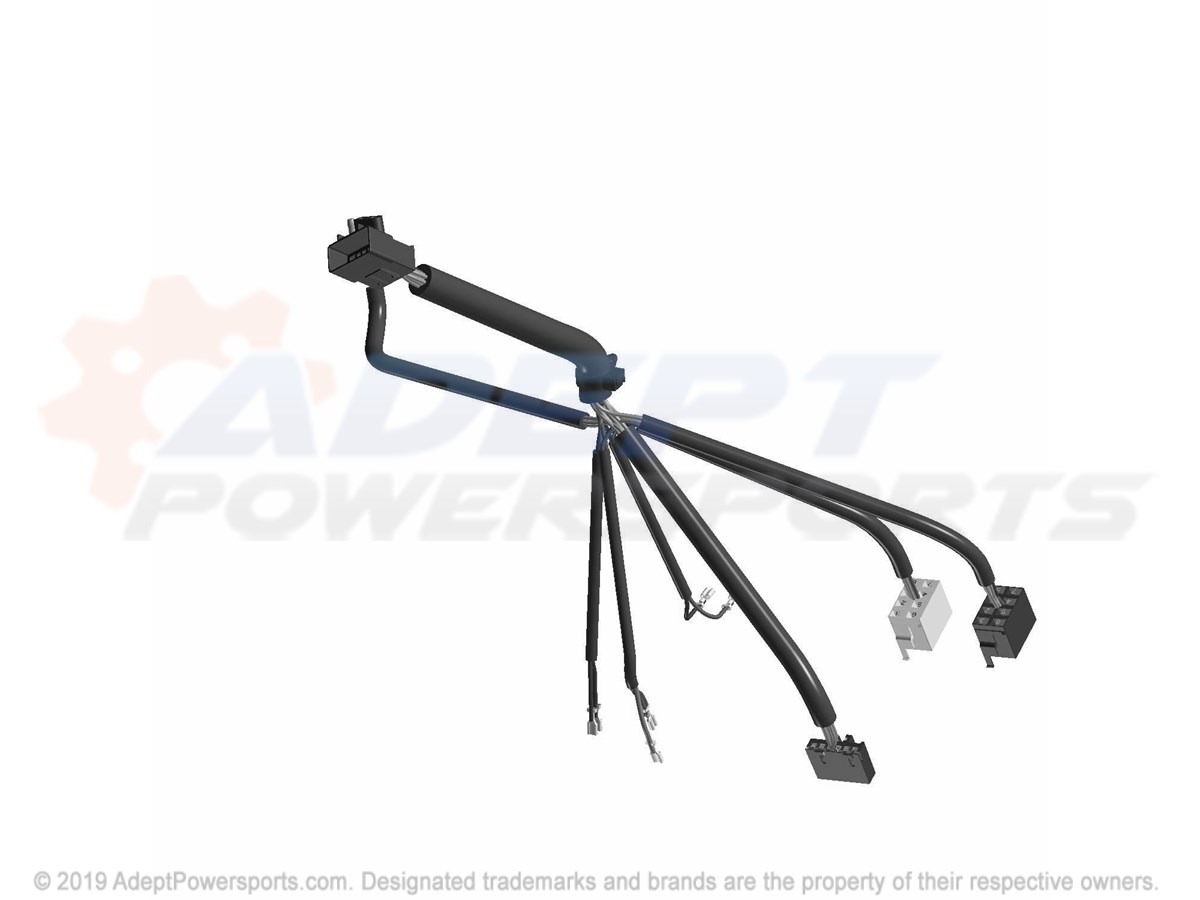

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS, CHASSIS Part #: 2410938 Required per assembly: 1 Currently Not Available
2	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 1 Note: Kit, Fusible Link Currently Not Available
3	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
4	BREAKER, CIRCUIT, SEALED, 10, AMP Part #: 2410692 Required per assembly: 1 Note: Breaker, Circuit, 10 Amp, Sealed Currently Not Available
5	FUSE, RESETTING, 6, AMP Part #: 2410363 Required per assembly: 1 Note: Fuse, 6 AMP Currently Not Available
6	FUSE, RESETTING, 15, AMP Part #: 2410364 Required per assembly: 1 Note: Fuse, 15 AMP Currently Not Available
7	FUSE, SELF, RESETTING, 20, AMP Part #: 2410365 Required per assembly: 1 Note: Fuse, 20 AMP Currently Not Available
8	HARNESS, CARGO, BOX Part #: 2411505 Required per assembly: 1 Currently Not Available
9	HARNESS, DASH Part #: 2410966 Required per assembly: 1 Currently Not Available
10	HARNESS, HEADLIGHT/HOOD Part #: 2410979 Required per assembly: 1 Currently Not Available
11	RELAY Part #: 4011141 Required per assembly: 1 Currently Not Available
12	RELAY Part #: 4010948 Required per assembly: 2 Note: Relay, Sealed, 35A Currently Not Available
13	CLIP, SILENCER, Part #: 7670102 Required per assembly: 1 Note: Clip Currently Not Available
14	COVER, ECM Part #: 5436654 Required per assembly: 1 Currently Not Available
15	STRAP PANDUIT Part #: 7080138 Required per assembly: 5 ~~$1.99~~ $1.15 - + Add to cart
16	BOX, BATTERY Part #: 5434037 Required per assembly: 1 Currently Not Available
