OEM Parts Polaris 2008 Polaris RANGER RZR 800 EFI (R08VH76AD/AG) Side Nets - R08vh76ad/Ag

2008 Polaris RANGER RZR 800 EFI (R08VH76AD/AG) - Side Nets - R08vh76ad/Ag

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

NET, SIDE, UPPER

Part #: 2684103 Required per assembly: 2
Currently Not Available
2

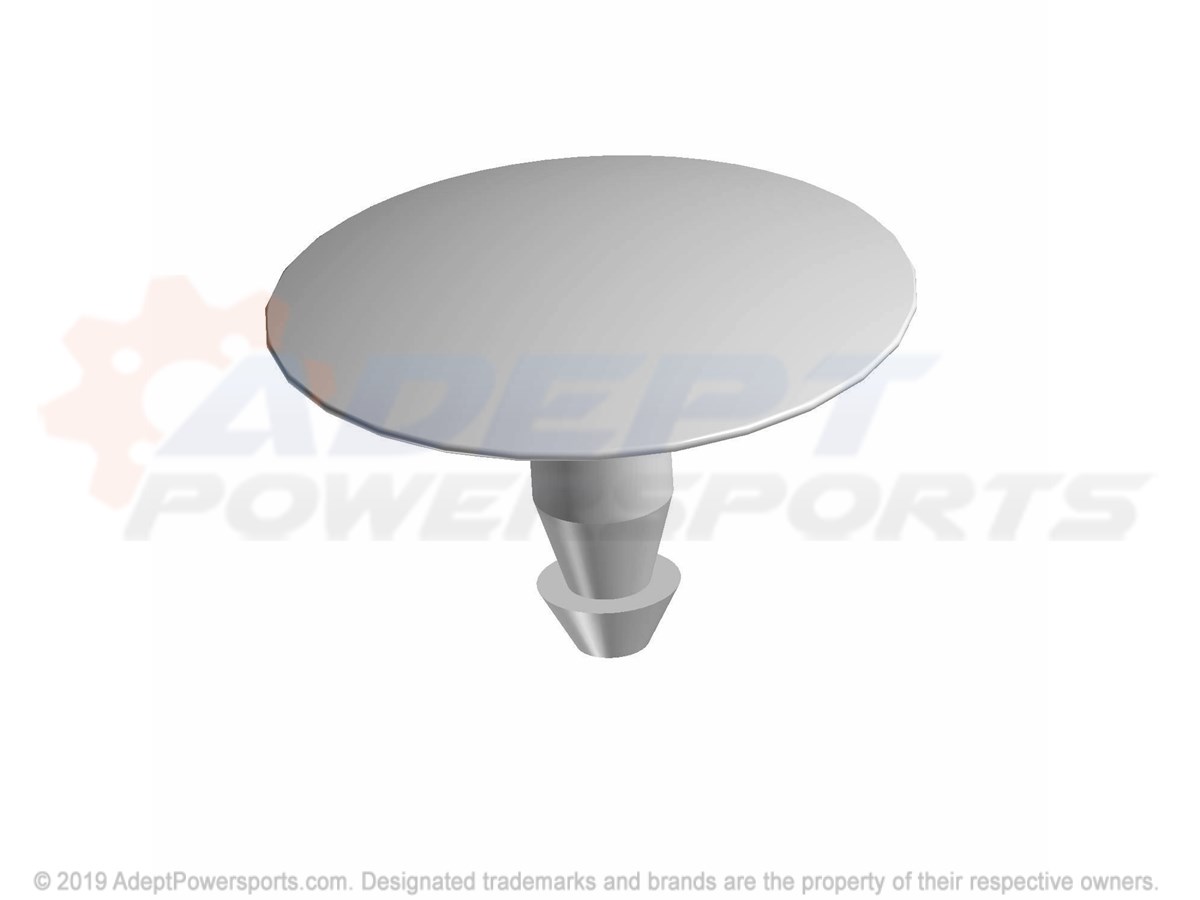

Polaris 7081478 Rivet, Snap, Male

RIVET, SNAP, MALE

Part #: 7081478 Required per assembly: 16
Currently Not Available
3

RIVET, SNAP, FEMALE

Part #: 7661865 Required per assembly: 16
Currently Not Available
4

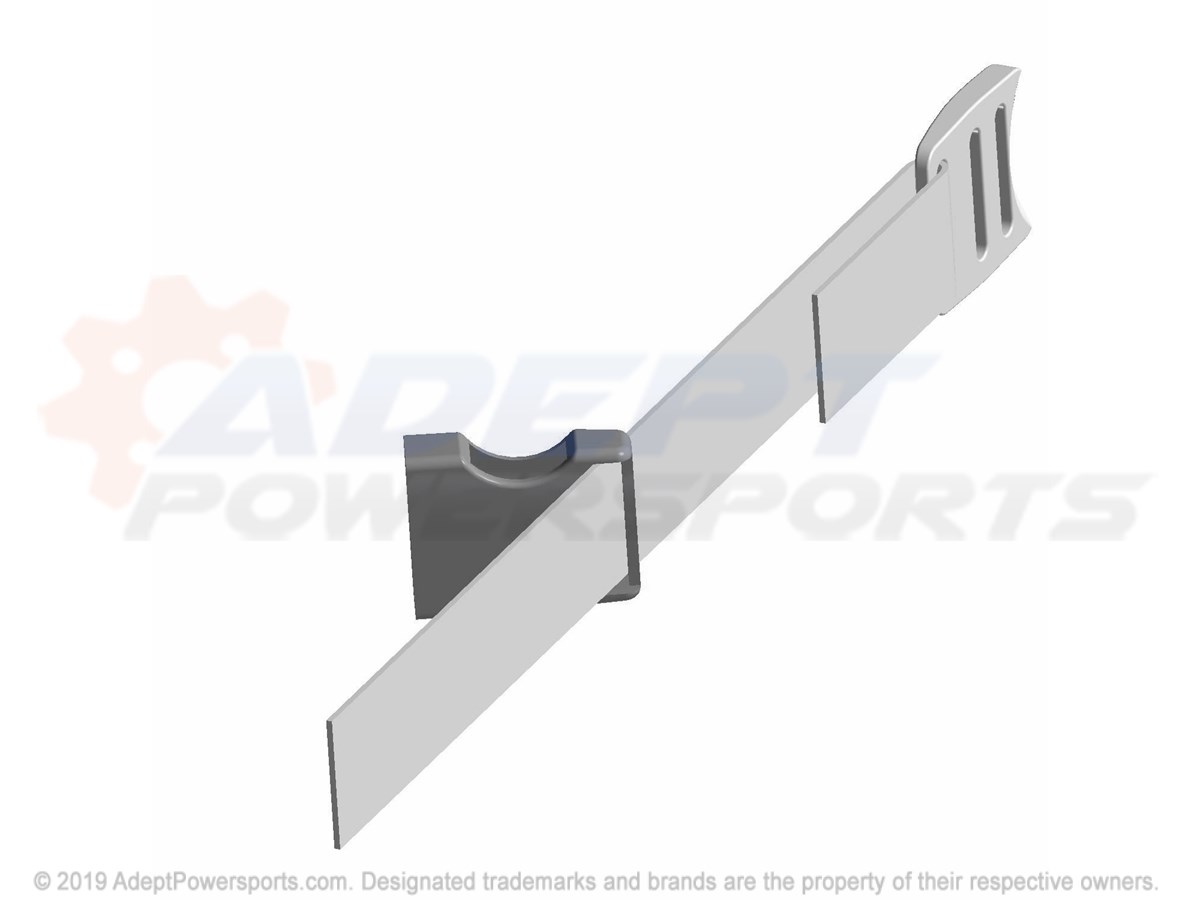

ASSEMBLY, BUCKLE, CAB, REAR

Part #: 2203720 Required per assembly: 2
Currently Not Available
5
Polaris 7517230 Screw

SCREW

Part #: 7517230 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
6
Polaris 7556064 Washer, Flat

WASHER, FLAT

Part #: 7556064 Required per assembly: 8
Currently Not Available
7
Polaris 7542153 Nut

NUT

Part #: 7542153 Required per assembly: 4 Note: Nut, Flanged, Nylok
$3.47
$2.30
-
+
Add to cart
8

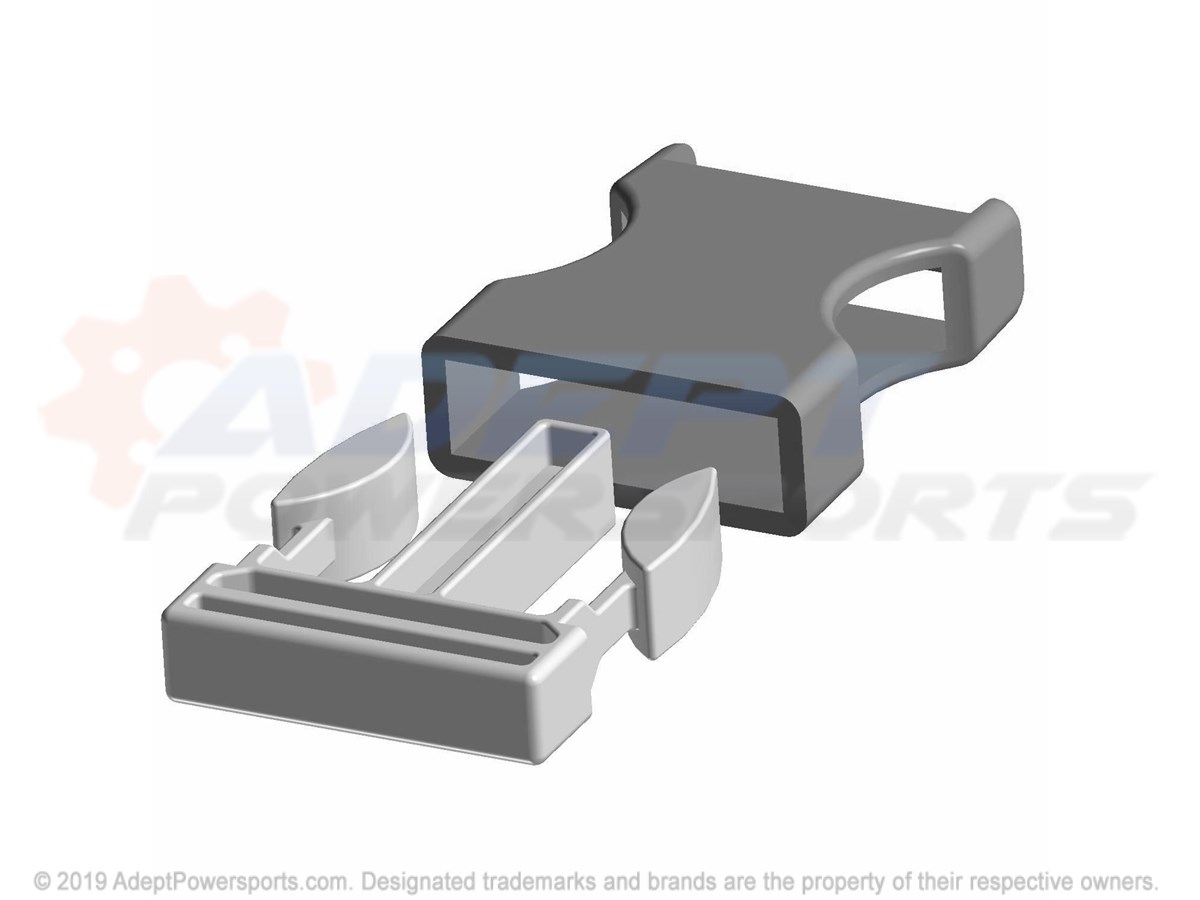

Polaris 2203718 Buckle, Male/Female

BUCKLE, MALE/FEMALE

Part #: 2203718 Required per assembly: 16
Currently Not Available
9
Polaris 2203719 Assembly, Buckle, Cab, Front

ASSEMBLY, BUCKLE, CAB, FRONT

Part #: 2203719 Required per assembly: 2
Currently Not Available
10

D-RING

Part #: 7081165 Required per assembly: 4
Currently Not Available
11

NET, SIDE, LOWER

Part #: 2684104 Required per assembly: 2
Currently Not Available
12

SLIDE, 3-BAR

Part #: 7080270 Required per assembly: 4
Currently Not Available
13

NET, SIDE, ARM

Part #: 2684120 Required per assembly: 2
Currently Not Available
