Engine, Cooling System - A08tn76aa/Aq replacement parts for 2008 Polaris Sportsman X2 800 EFI LE (A08TN76AA/AQ)

OEM Parts Polaris 2008 Polaris Sportsman X2 800 EFI LE (A08TN76AA/AQ) Engine, Cooling System - A08tn76aa/Aq

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7517975 Required per assembly: 4 Note: Bolt Currently Not Available
2	U-CLIP Part #: 7547197 Required per assembly: 4 Note: Clip, U ~~$8.49~~ $4.49 - + Add to cart

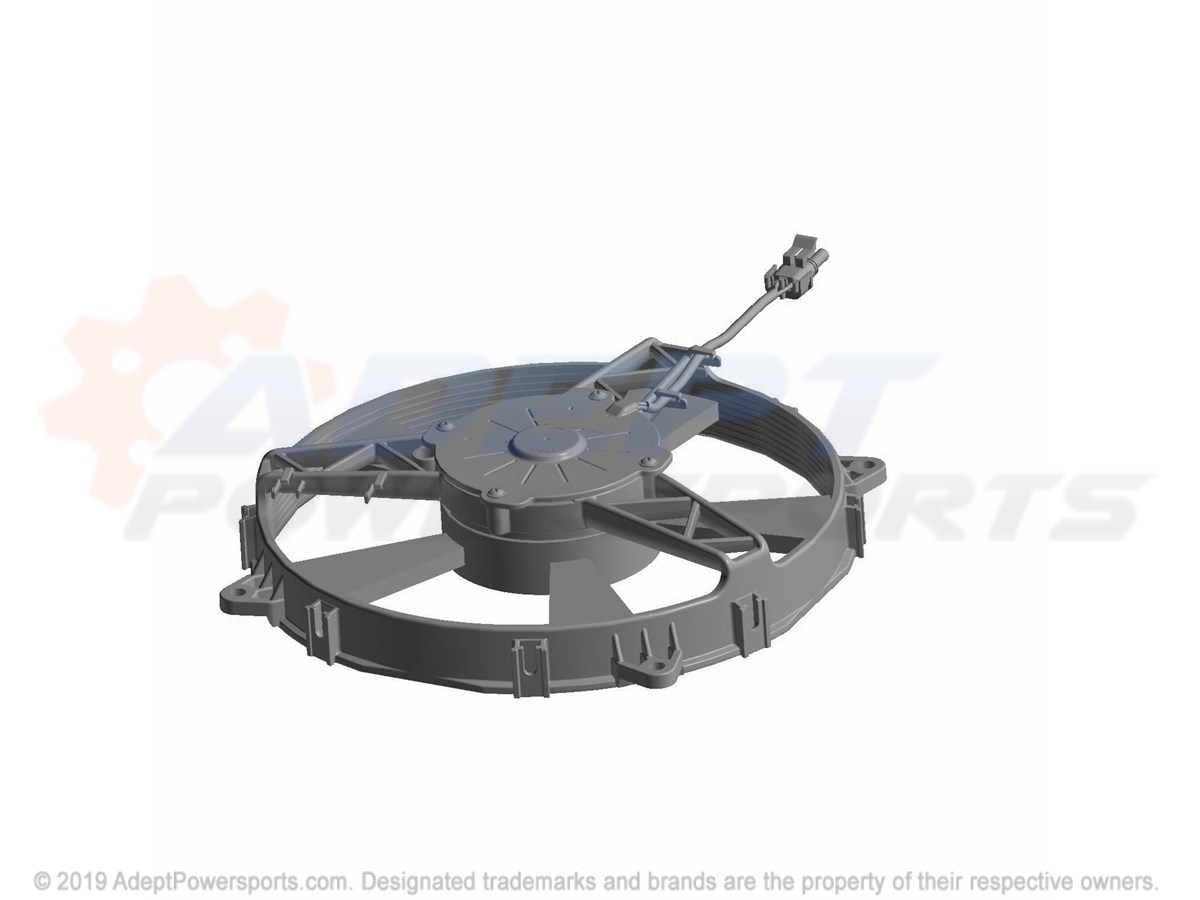

3	FAN, 11, INCH Part #: 2410901 Required per assembly: 1 Note: Fan Currently Not Available
4	SCREW W/WASHER (QTY. 2 AFTER 10/25/02) Part #: 7547220 Required per assembly: 4 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
5	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available

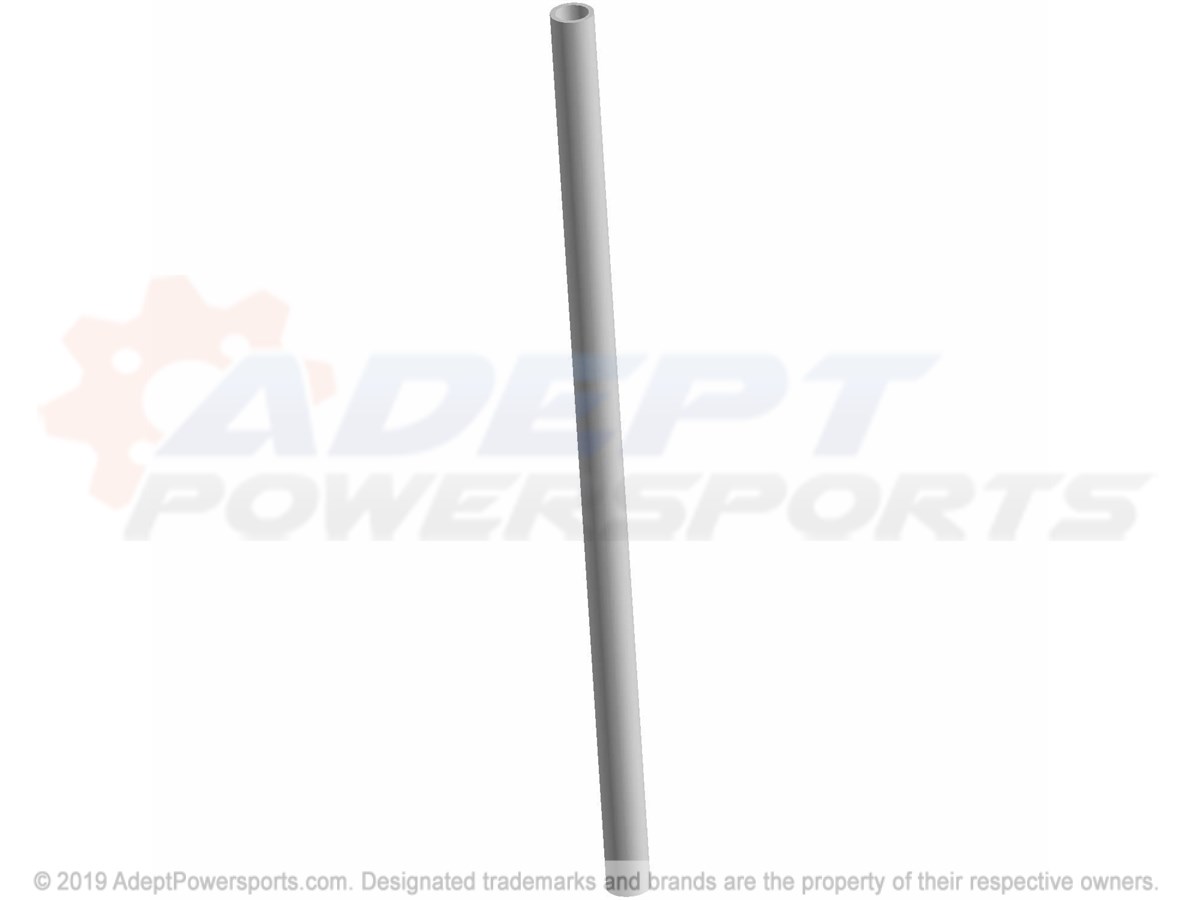

6	HOSE Part #: 8450120-600 Required per assembly: 1 Currently Not Available
7	CLAMP Part #: 7081047 Required per assembly: 6 Currently Not Available
8	FILLER, COOLANT, Part #: 5435196 Required per assembly: 1 Note: Filler, Remote Currently Not Available
9	SCREW Part #: 7512084 Required per assembly: 5 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
10	CAP, PRESSURE Part #: 1240508 Required per assembly: 1 Currently Not Available
11	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
12	GUARD, HOSE, 15, INCH Part #: 5521742 Required per assembly: 1 Note: Guard, Hose Currently Not Available

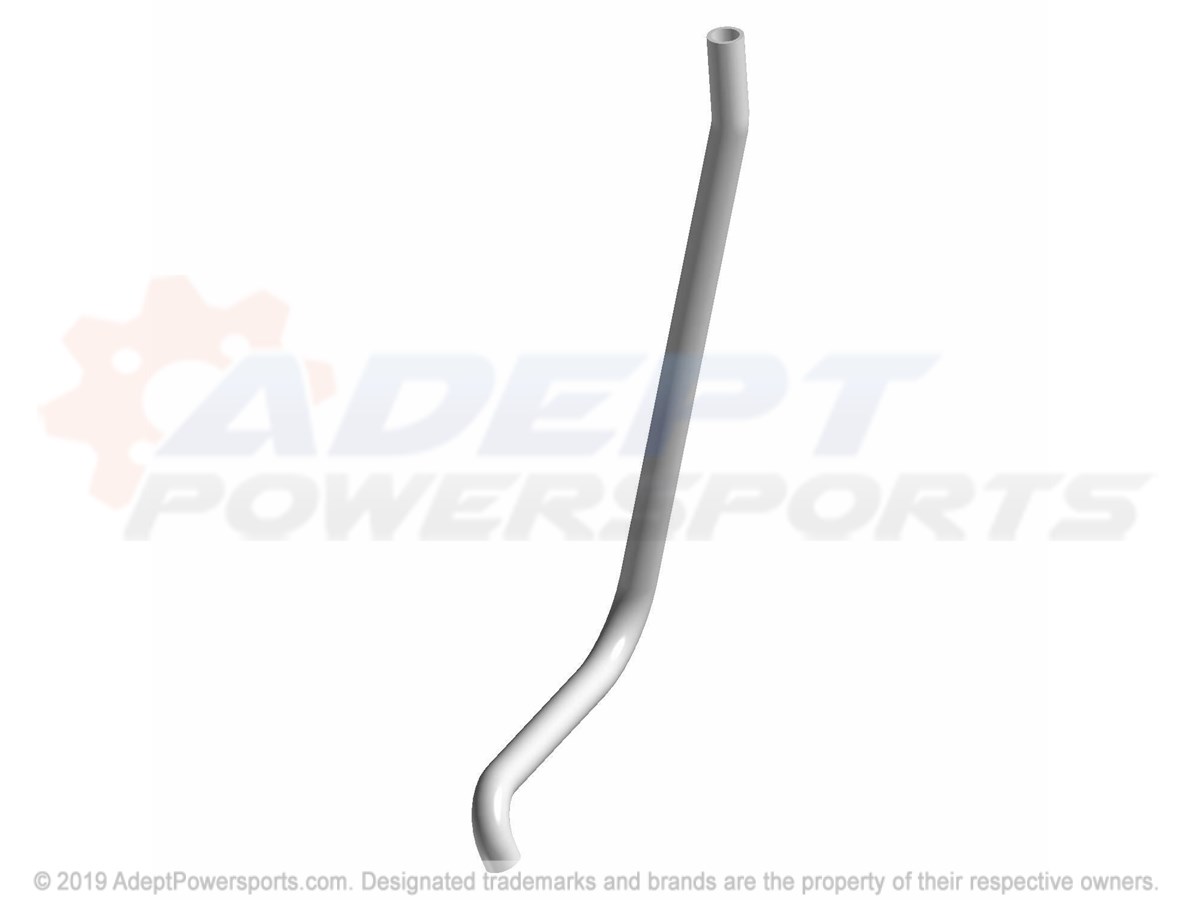

13	HOSE Part #: 5413684 Required per assembly: 1 Note: Hose [Built 2/03/09 to 4/06/09] Currently Not Available
14	SHROUD, FAN Part #: 5437845 Required per assembly: 1 Currently Not Available
15	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
16	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
17	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Required per assembly: 1 Currently Not Available
18	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
19	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE ~~$11.99~~ $6.90 - + Add to cart
20	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Required per assembly: 1 Currently Not Available
21	GUARD, HOSE Part #: 5521749 Required per assembly: 1 Note: Guard, Hose Currently Not Available
22	BRACKET, RADIATOR, UPPER Part #: 5250769 Required per assembly: 1 Currently Not Available
23	HOSE, FILLER, NECK Part #: 5413682 Required per assembly: 1 Note: Hose, Filler Neck [Built 2/03/09 to 4/06/09] Currently Not Available
24	GUARD, HOSE, 9, INCH Part #: 5521753 Required per assembly: 1 Note: Guard, Hose Currently Not Available
25	T-CONNECTOR Part #: 7052397 Required per assembly: 1 Currently Not Available
26	HOSE, LOWER, RADIATOR Part #: 5412838 Required per assembly: 1 Currently Not Available
27	GROMMET Part #: 5411975 Required per assembly: 2 Note: Asm., Grommet and Insert Currently Not Available
28	SCREW Part #: 7515179 Required per assembly: 2 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
29	RADIATOR Part #: 1240521 Required per assembly: 1 Note: Radiator Currently Not Available
30	BRACKET, RADIATOR, LOWER Part #: 5247047-067 Required per assembly: 1 Note: Bracket, Radiator, Lower, Black Currently Not Available
31	SCREW Part #: 7517386 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
32	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
33	VALVE-PLASTIC RAD/COOLER DRAIN Part #: 7052296 Required per assembly: 1 Currently Not Available
34	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
35	HOSE, ENGINE, LOWER Part #: 5413683 Required per assembly: 1 Note: Hose, Engine, Lower [Built 2/03/09 to 4/06/09] Currently Not Available
36	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 2 Currently Not Available
37	RETAINER, HOSE Part #: 7043335 Required per assembly: 1 Note: Retainer, Hose Currently Not Available
