Front Cylinder Timing System replacement parts for 2009 Aprilia Dorsoduro 750

OEM Parts Aprilia 2009 Aprilia Dorsoduro 750 Front Cylinder Timing System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CAMSHAFT WITH I.P. Part #: 82977R Currently Not Available
2	FRONT EXHAUST CAMSHAFT Part #: 873961 Currently Not Available
3	AXIAL LOCK PLATE Part #: 874176 Currently Not Available
4	TIMING SYSTEM GEAR CPL. Part #: 874596 Currently Not Available
5	FRONT TIMING SYSTEM GEAR CPL. Part #: 849909 Currently Not Available
6	SPACER SCREW Part #: 974228 Currently Not Available
7	THRUST WASHER Part #: 874744 Currently Not Available

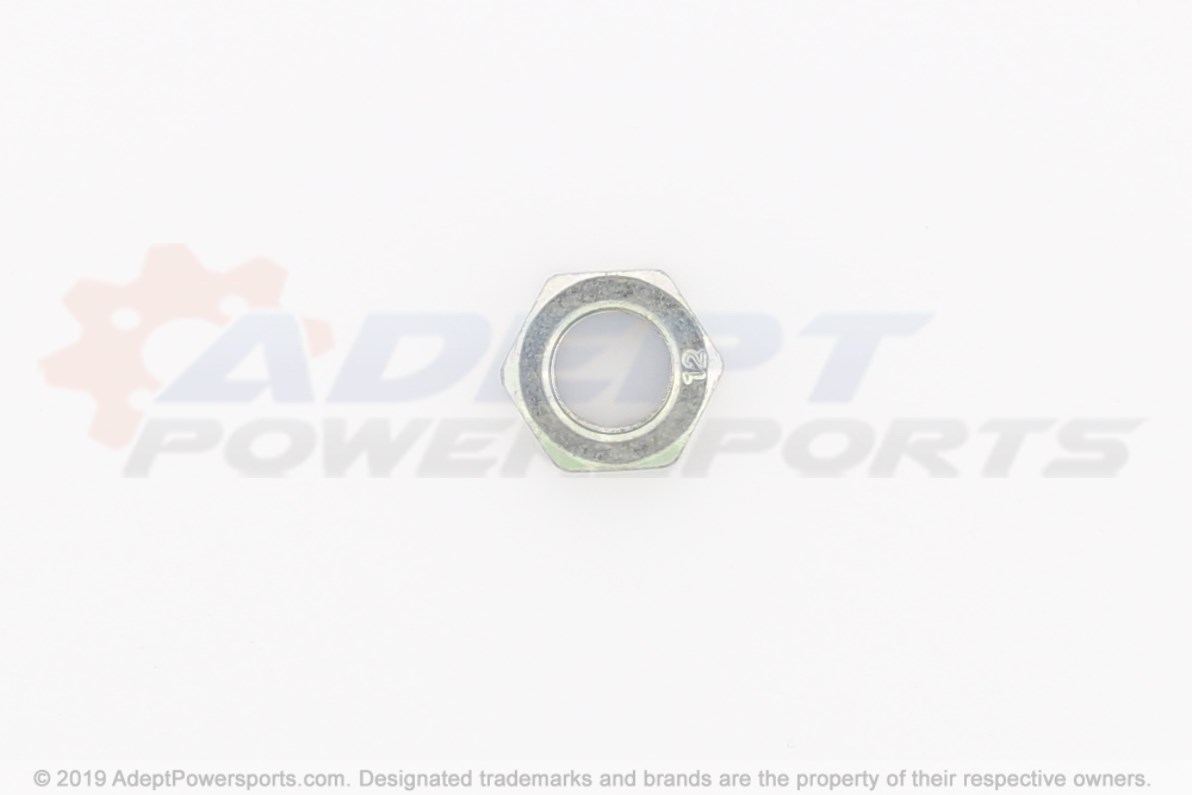

8	NUT M15X1 DX Part #: 874751 $6.31 $5.17 - + Add to cart
9	SPECIAL SCREW Part #: 874591 Currently Not Available
10	SAFETY WASHER Part #: 849817 Currently Not Available
11	GASKET RING Part #: 873233 Currently Not Available
12	CYLINDER HEAD ASSY Part #: 82970R4 Currently Not Available
13	SCREW M6X35 Part #: 874185 Currently Not Available
14	CAMSHAFT CHAIN Part #: 849827 Currently Not Available
15	CHAIN GUIDE PLATE Part #: 871798 Currently Not Available
16	CHAIN TENSIONER ROD Part #: 871748 Currently Not Available
