OEM Parts Polaris 2009 Polaris Outlaw 450 MXR (A09GJ45AA) Body, Seat - A09gj45aa

2009 Polaris Outlaw 450 MXR (A09GJ45AA) - Body, Seat - A09gj45aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2684165 Assembly, Cover

ASSEMBLY, COVER

Part #: 2684165 Required per assembly: 1
$174.99
$90.57
-
+
Add to cart
1

ASSEMBLY, SEAT, BLACK

Part #: 2684984-070 Required per assembly: 1
Currently Not Available
2

NUT, FLANGE

Part #: 7547332 Required per assembly: 1 Note: Nut, Nylok
Currently Not Available
3
Polaris 5136142 Pin, Seat, Latch

PIN, SEAT, LATCH

Part #: 5136142 Required per assembly: 1
Currently Not Available
4
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
5
Polaris 7517745 Bolt, Shoulder

BOLT, SHOULDER

Part #: 7517745 Required per assembly: 1
Currently Not Available
6
Polaris 1016984-329 Housing, Seat, Latch, Black

HOUSING, SEAT, LATCH, BLACK

Part #: 1016984-329 Required per assembly: 1
Currently Not Available
7

WASHER, WAVE

Part #: 7571619 Required per assembly: 1
Currently Not Available
8

LEVER, SEAT, LATCH

Part #: 5252615-329 Required per assembly: 1
Currently Not Available

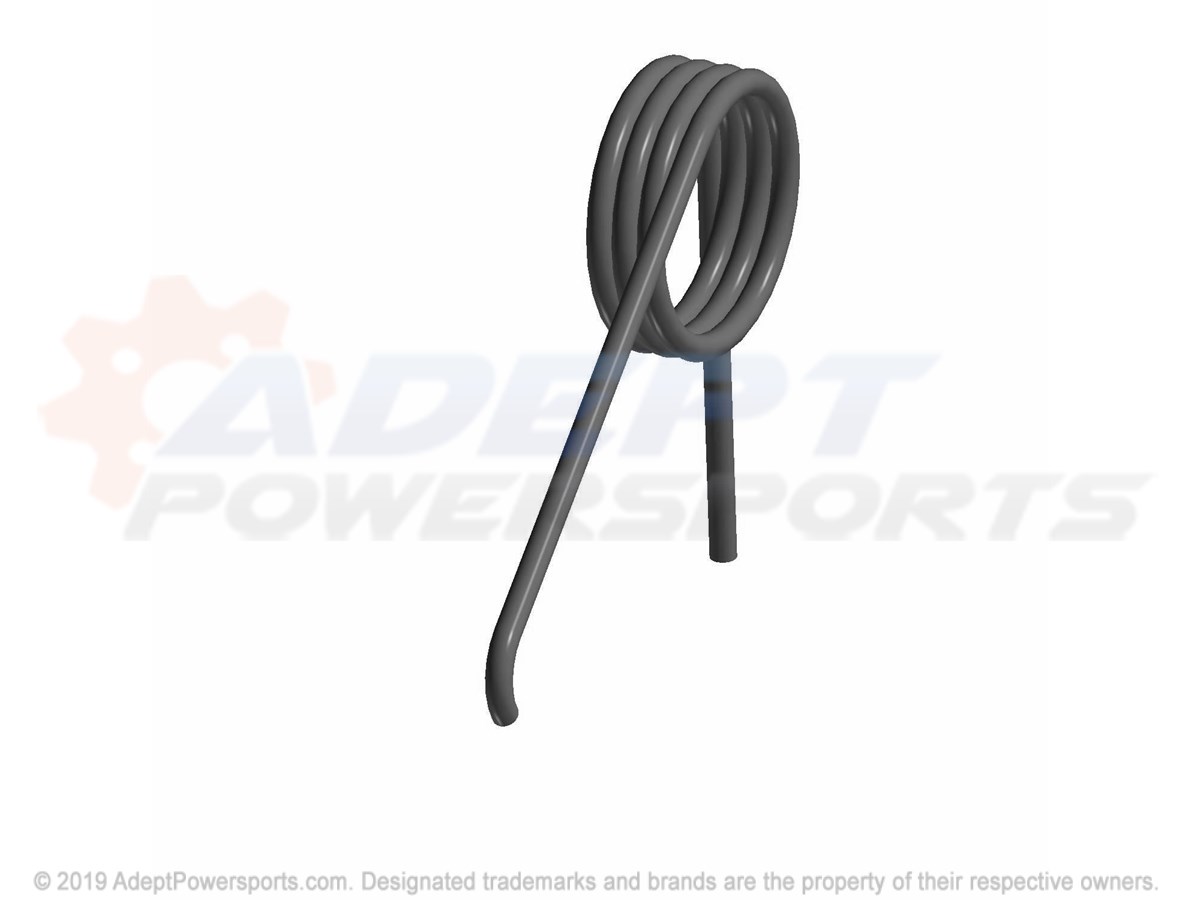

9
Polaris 7043472 Spring, Torsion, Seat, Latch

SPRING, TORSION, SEAT, LATCH

Part #: 7043472 Required per assembly: 1
Currently Not Available

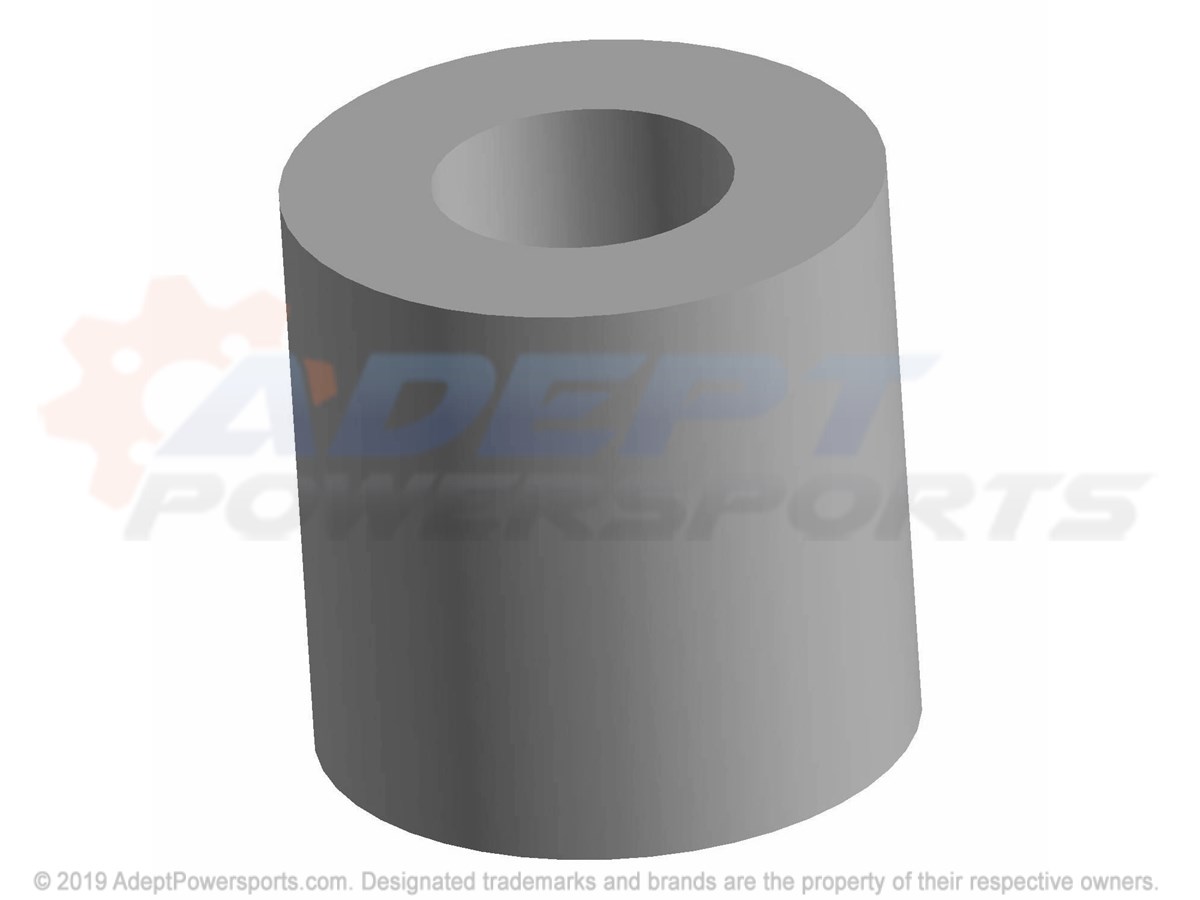

10
Polaris 5437825 Spacer, Seat, Latch

SPACER, SEAT, LATCH

Part #: 5437825 Required per assembly: 1
Currently Not Available
11
Polaris 5412507 Grommet

GROMMET

Part #: 5412507 Required per assembly: 2
Currently Not Available
12
Polaris 7542324 Nut

NUT

Part #: 7542324 Required per assembly: 1
Currently Not Available
