OEM Parts Polaris 2009 Polaris RANGER 4X4 500 EFI (R09HH50AG/AR) Suspension, Rear Stabilizer Bar - R09hh50ag/Ar

2009 Polaris RANGER 4X4 500 EFI (R09HH50AG/AR) - Suspension, Rear Stabilizer Bar - R09hh50ag/Ar

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

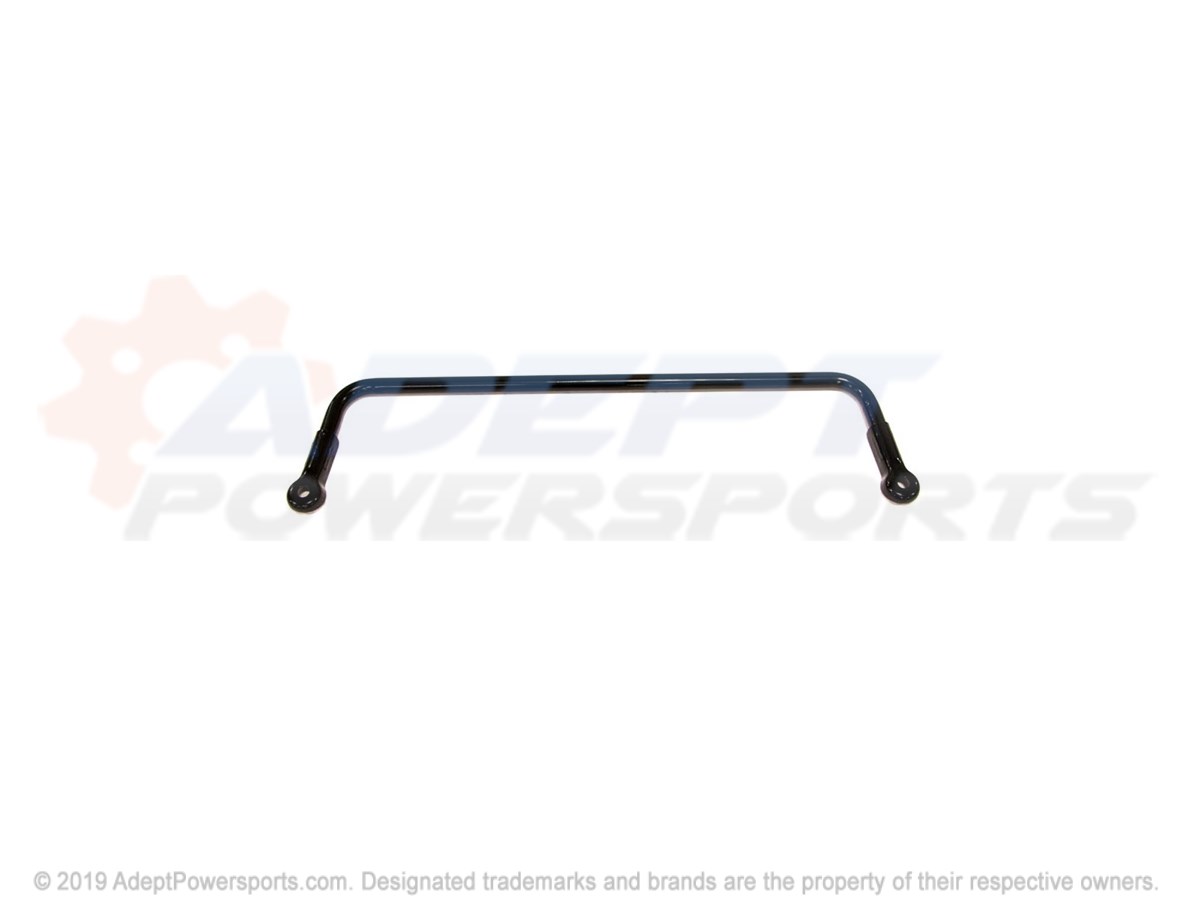

Polaris 1016353-067 Bar, Stabilizer, Black

BAR, STABILIZER, BLACK

Part #: 1016353-067 Required per assembly: 1
Currently Not Available
2
Polaris 5439731 Bushing, Steering, Upper

BUSHING, STEERING, UPPER

Part #: 5439731 Required per assembly: 4
Currently Not Available
3
Polaris 5257028 Bracket, Steering, Bushing, Upper

BRACKET, STEERING, BUSHING, UPPER

Part #: 5257028 Required per assembly: 2
Currently Not Available
4
Polaris 7518564 Bolt, Carriage

BOLT, CARRIAGE

Part #: 7518564 Required per assembly: 4
Currently Not Available
5

NUT, FLANGE

Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
6
Polaris 5416013 Bushing-Lnkg, Torbar, Duro80

BUSHING-LNKG, TORBAR, DURO80

Part #: 5416013 Required per assembly: 4
Currently Not Available
7

ASSEMBLY, LINKAGE, STABILIZER, BAR

Part #: 1542660 Required per assembly: 2
Currently Not Available
