OEM Parts Polaris 2009 Polaris RANGER 4X4 700 EFI CREW (R09WH68AC/AG/AH/AL/AR/AZ) Body, Storage Box - R09wh68ac/Ag/Ah/Al/Ar/Az

2009 Polaris RANGER 4X4 700 EFI CREW (R09WH68AC/AG/AH/AL/AR/AZ) - Body, Storage Box - R09wh68ac/Ag/Ah/Al/Ar/Az

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

N/A, USE, COMPONENTS

Part #: 9990000 Required per assembly: 1
Currently Not Available
1
Polaris 5435651-070 Box, Storage, Side, Black, (Aa)

BOX, STORAGE, SIDE, BLACK, (AA)

Part #: 5435651-070 Required per assembly: 1 Note: Box, Storage, Side, Black
Currently Not Available
2

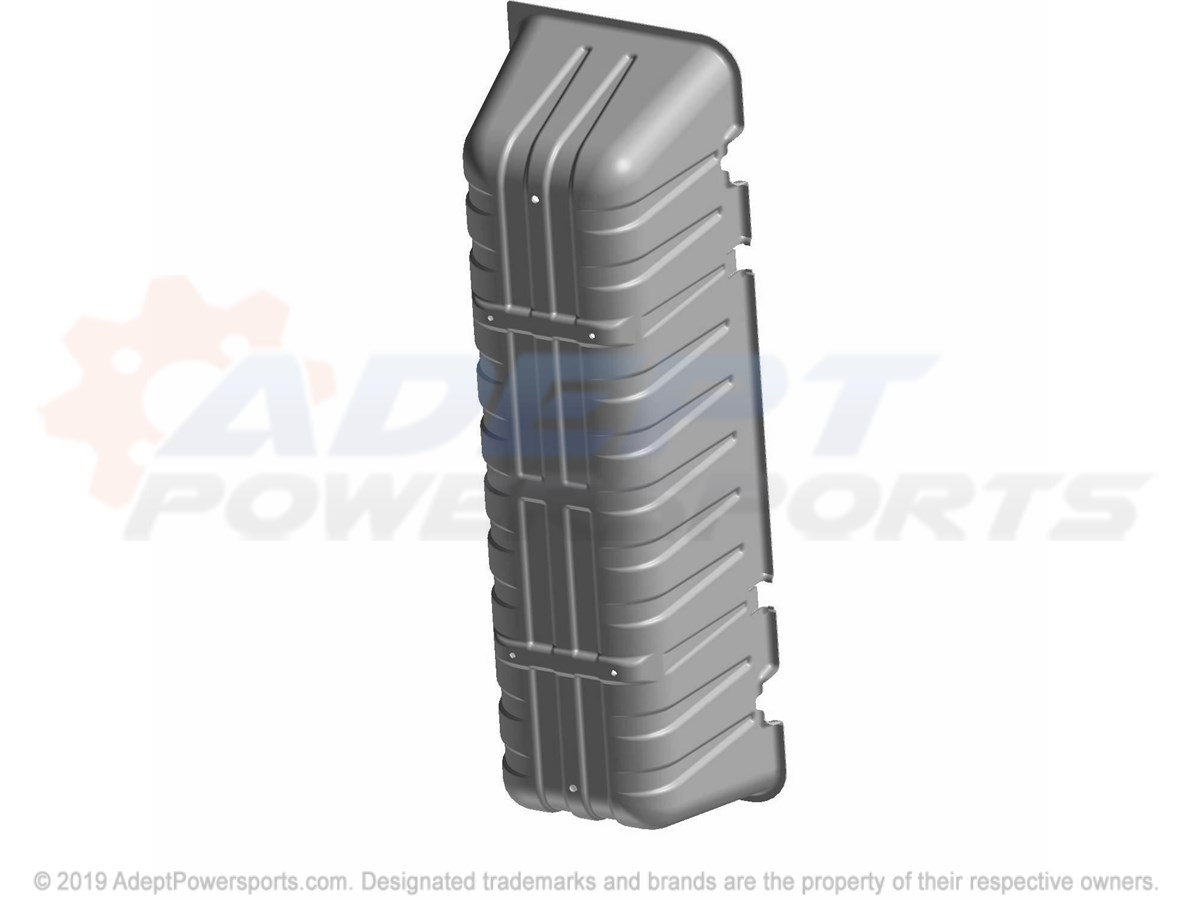

Polaris 5435843-070 Fender, Storage, Box, Black, (Aa)

FENDER, STORAGE, BOX, BLACK, (AA)

Part #: 5435843-070 Required per assembly: 1 Note: Fender, Storage Box, Black
Currently Not Available
3
Polaris 5248581 Bracket, Latch

BRACKET, LATCH

Part #: 5248581 Required per assembly: 1
Currently Not Available
4
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 17 Note: Screw
Currently Not Available
5

CABLE, LID, FRONT

Part #: 7081124 Required per assembly: 1
Currently Not Available
6
Polaris 5521701 Seal, Storage, Box

SEAL, STORAGE, BOX

Part #: 5521701 Required per assembly: 1
Currently Not Available
7
Polaris 5412981 Plug

PLUG

Part #: 5412981 Required per assembly: 3
Currently Not Available
8

WASHER-.906 X 1.38 X .060"

Part #: 7556120 Required per assembly: 1 Note: The next small shim is 7556454 WASHER-.906 X 1.38 X .030"
$2.99
$1.73
-
+
Add to cart
9
Polaris 5435650-070 Cover, Storage, Box, Black, (Aa)

COVER, STORAGE, BOX, BLACK, (AA)

Part #: 5435650-070 Required per assembly: 1 Note: Cover, Storage Box, Black
Currently Not Available
10
Polaris 5249363-067 Bracket, Spacer, Latch

BRACKET, SPACER, LATCH

Part #: 5249363-067 Required per assembly: 1 Note: Bracket, Spacer, Latch
Currently Not Available
11
Polaris 7081317 Latch, 1/4, Turn

LATCH, 1/4, TURN

Part #: 7081317 Required per assembly: 1 Note: Latch, 1/4 Turn
Currently Not Available
12

PLATE, SUPPORT, STORAGE, BOX, BLACK

Part #: 5248236-067 Required per assembly: 1
Currently Not Available
13
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 7
$3.79
$1.73
-
+
Add to cart
14
Polaris 5437154-070 Box, Storage, Black

BOX, STORAGE, BLACK

Part #: 5437154-070 Required per assembly: 1
Currently Not Available
15
Polaris 7518280 Screw

SCREW

Part #: 7518280 Required per assembly: 4
Currently Not Available
16
Polaris 5252189-067 Bracket, Seat, Support, Front, Black

BRACKET, SEAT, SUPPORT, FRONT, BLACK

Part #: 5252189-067 Required per assembly: 2
Currently Not Available
