Engine, Exhaust System, Dual - A09mn76ax/Az replacement parts for 2009 Polaris Sportsman 800 HO EFI (A09MN76AX/AZ)

OEM Parts Polaris 2009 Polaris Sportsman 800 HO EFI (A09MN76AX/AZ) Engine, Exhaust System, Dual - A09mn76ax/Az

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT Part #: 7542324 Required per assembly: 2 Currently Not Available
2	WASHER Part #: 7555716 Required per assembly: 2 Currently Not Available
3	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 2 Currently Not Available
4	WASHER, RUBBER Part #: 5410436 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart

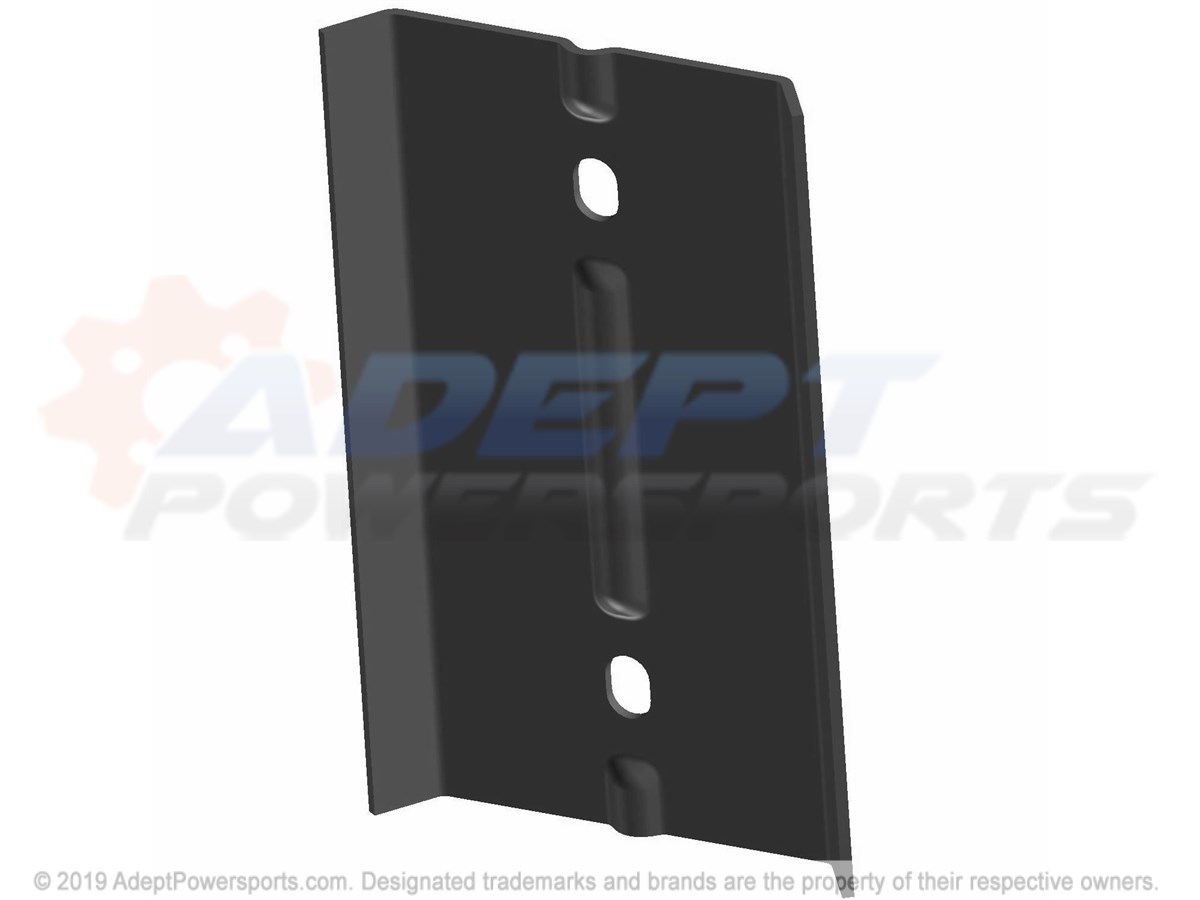

5	BRACKET, SILENCER, FRAME, (SEE, REAR, RACK, MOUNTING, PG., A6, REF., 4) Part #: 5241663 Required per assembly: 1 Note: Bracket, Silencer, Frame Currently Not Available
6	EXHAUST, DUAL, BLACK Part #: 1261797-489 Required per assembly: 2 Currently Not Available
7	DAMPENER, VIBRATION Part #: 5412508 Required per assembly: 2 Currently Not Available
8	BOLT Part #: 7515316 Required per assembly: 2 Currently Not Available
9	EXHAUST, SILENCER, RH, BLACK Part #: 1261799-489 Required per assembly: 1 Currently Not Available
10	WASHER, CLEAN, OUT Part #: 7556230 Required per assembly: 2 Note: Washer ~~$1.99~~ $1.15 - + Add to cart
11	BOLT Part #: 7512666 Required per assembly: 2 Currently Not Available
12	SEAL, EXHAUST Part #: 3610114 Required per assembly: 2 Currently Not Available

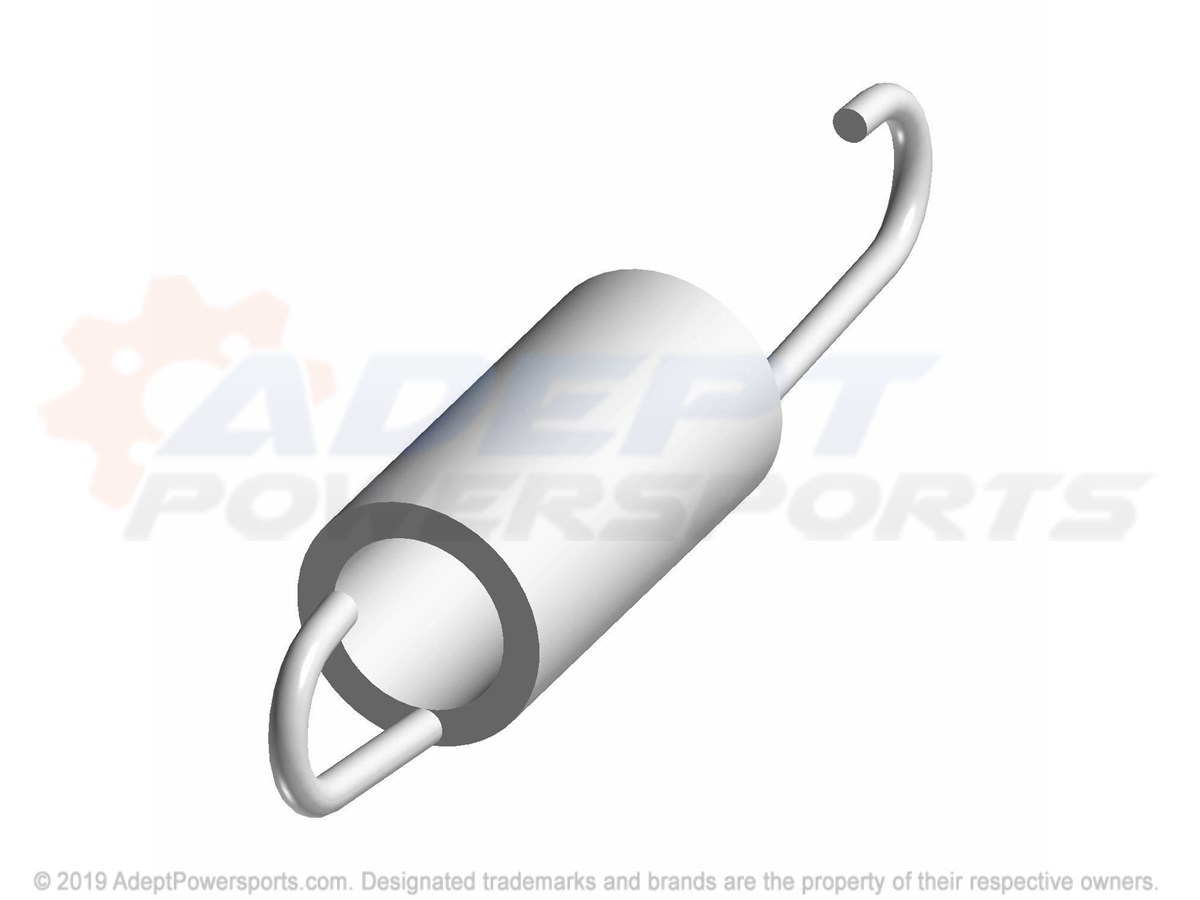

13	SPRING-EXHAUST Part #: 7041804 Required per assembly: 4 Note: Spring, Exhaust Currently Not Available
14	EXHAUST, SECONDARY, BLACK Part #: 1261798-489 Required per assembly: 1 Currently Not Available
15	BRACKET, SILENCER, MOUNT Part #: 5248723 Required per assembly: 1 Currently Not Available
16	SHIELD, EXHAUST, OUTER Part #: 5251237 Required per assembly: 1 Currently Not Available
17	SPRING, EXTENSION, BRAKE, SWITCH Part #: 7042266 Required per assembly: 1 Note: Spring Currently Not Available
18	WASHER Part #: 7555935 Required per assembly: 2 Note: Washer, Flat Currently Not Available
19	NUT Part #: 7547076 Required per assembly: 4 Currently Not Available
20	WASHER, LOCK Part #: 7556111 Required per assembly: 4 Currently Not Available
21	GASKET, EXHAUST Part #: 5811511 Required per assembly: 1 Note: Gasket Currently Not Available
22	SHIELD, HEAT Part #: 5248702 Required per assembly: 1 Currently Not Available
23	SCREW Part #: 7518490 Required per assembly: 2 Note: Screw, Flange Currently Not Available
24	SEAL, EXHAUST Part #: 5246375 Required per assembly: 1 Currently Not Available
25	CLAMP, EXHAUST Part #: 7081284 Required per assembly: 1 Currently Not Available
26	EXHAUST, SILENCER, LH, BLACK, [MH76AL][MN76AT] Part #: 1261735-489 Required per assembly: 1 Note: Exhaust, Silencer, LH, Black Currently Not Available
27	GROMMET, SILENCER, MOUNT Part #: 5412727 Required per assembly: 2 Note: Grommet Currently Not Available
28	SCREW Part #: 7517386 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
29	SPRING, EXHAUST Part #: 7043307 Required per assembly: 1 Currently Not Available
30	BUMPER-RUBBER Part #: 5412067 Required per assembly: 1 Note: Bumper, Rubber Currently Not Available
31	SHIELD, EXHAUST, INNER Part #: 5251532 Required per assembly: 1 Currently Not Available
32	RIVET, POP Part #: 7621330 Required per assembly: 4 Note: Sold in multiples of 50 only Currently Not Available
33	WASHER Part #: 7555727 Required per assembly: 4 Currently Not Available
