OEM Parts Polaris 2009 Polaris Sportsman TOURING 500 EFI QUAD (A09DN50EA) Steering, Controls And Throttle - A09dn50ea

2009 Polaris Sportsman TOURING 500 EFI QUAD (A09DN50EA) - Steering, Controls And Throttle - A09dn50ea

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2010334 Assembly, Throttle, Control, Adc

ASSEMBLY, THROTTLE, CONTROL, ADC

Part #: 2010334 Required per assembly: 1 Note: Asm., Throttle Control, ADC [Incl. 2][Built 4/07/08 and Before]
Currently Not Available
2
Polaris 2010191 Asm-Throttle Clamp

ASM-THROTTLE CLAMP

Part #: 2010191 Required per assembly: 1 Note: Asm., Throttle Clamp
Currently Not Available
3

O RING

Part #: 5410193 Required per assembly: 1 Note: O-Ring
Currently Not Available
4
Polaris 5434113 Cover-Throttle Control

COVER-THROTTLE CONTROL

Part #: 5434113 Required per assembly: 1 Note: Cover, Throttle Control
Currently Not Available
5

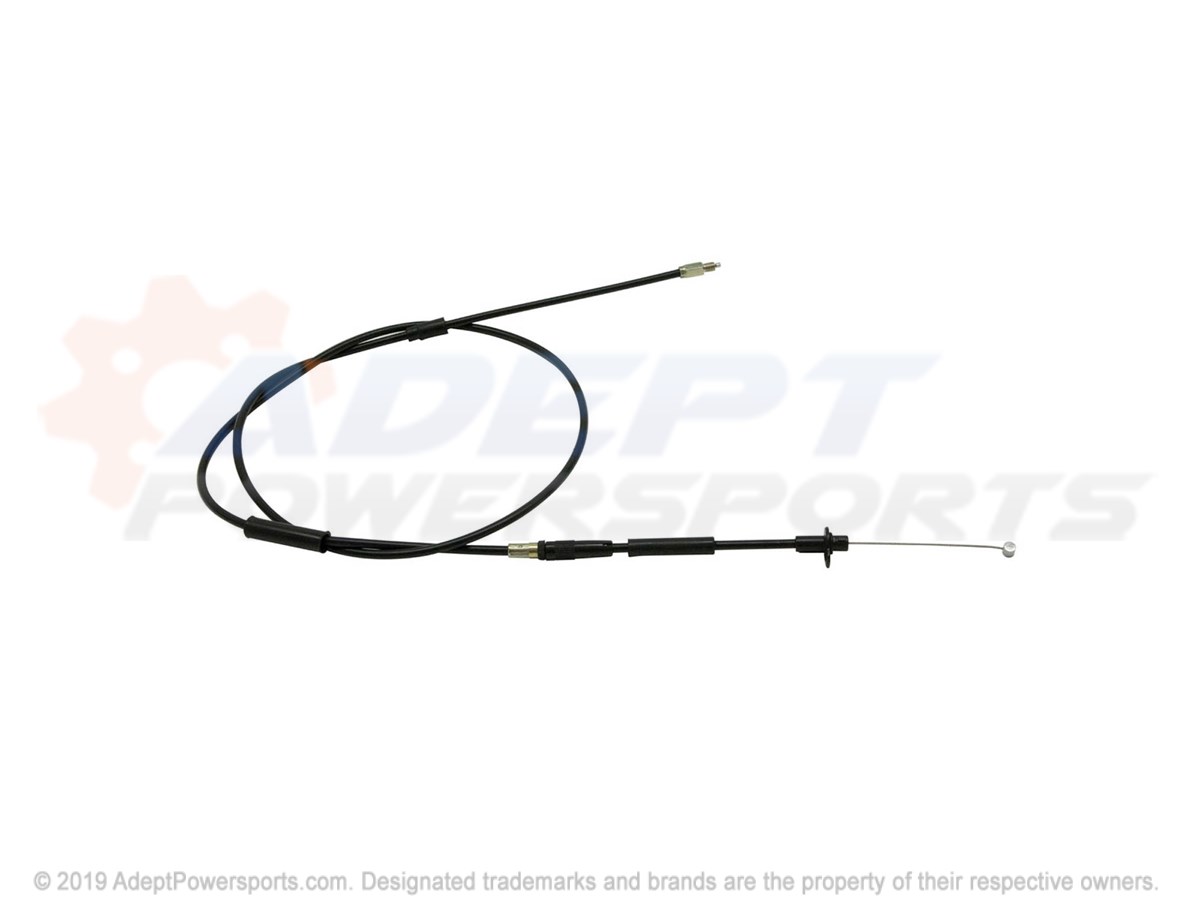

Polaris 7081551 Cable, Throttle

CABLE, THROTTLE

Part #: 7081551 Required per assembly: 1 Note: Cable, Throttle [Built 9/03/08 and After]
Currently Not Available
6

TUBING, CONVOLUTED

Part #: 8360056-25 Required per assembly: 1
Currently Not Available
7
Polaris 5411439 O-Ring

O-RING

Part #: 5411439 Required per assembly: 1 Note: O-Ring
$4.99
$2.92
-
+
Add to cart
