OEM Parts Polaris 2009 Polaris Sportsman XP EPS 850 (A09ZX85/8X ALL OPTIONS) Suspension, Shock, Front - A09zx85/8X All Options

2009 Polaris Sportsman XP EPS 850 (A09ZX85/8X ALL OPTIONS) - Suspension, Shock, Front - A09zx85/8X All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7043464 Shock, Front

SHOCK, FRONT

Part #: 7043464 Required per assembly: 2
Currently Not Available
2
Polaris 5630551 Cam, Adjust, Spring

CAM, ADJUST, SPRING

Part #: 5630551 Required per assembly: 2 Note: Cam, Adjust, Spring
Currently Not Available
3

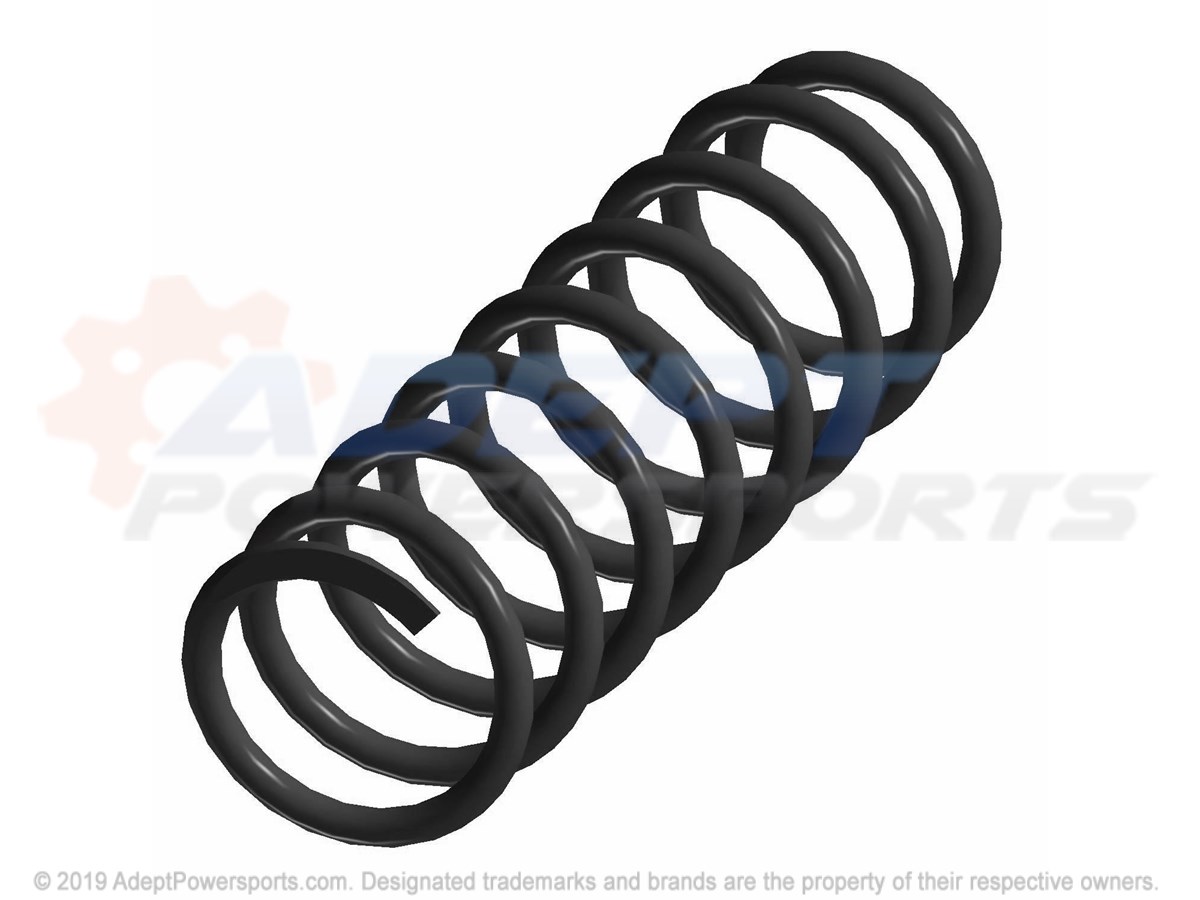

Polaris 7043379-067 Spring, Compression, Black, [Al][Aq][As][Ax]

SPRING, COMPRESSION, BLACK, [AL][AQ][AS][AX]

Part #: 7043379-067 Required per assembly: 2
Currently Not Available
3
Polaris 7043499-067 Spring, Compression, Black, [At]

SPRING, COMPRESSION, BLACK, [AT]

Part #: 7043499-067 Required per assembly: 2
Currently Not Available
3

SPRING, COMPRESSION, SILVER, [8XAG]

Part #: 7043499-385 Required per assembly: 2
Currently Not Available
4
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
5
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 4
$2.79
$1.73
-
+
Add to cart
6
Polaris 7518826 Bolt, Flange

BOLT, FLANGE

Part #: 7518826 Required per assembly: 4
Currently Not Available
