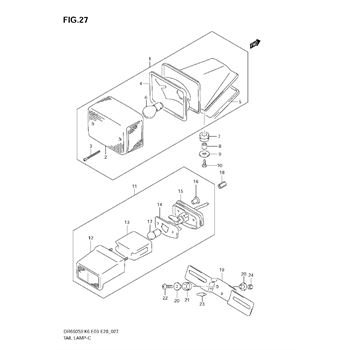

Tail Lamp replacement parts for 2009 Suzuki DR650SE

OEM Parts Suzuki 2009 Suzuki DR650SE Tail Lamp

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	LAMP, ASSEMBLY, TAIL Part #: 35710-32E30 Required per assembly: 1 $165.69 $149.12 - + Add to cart
2	LENS Part #: 35712-14D30 Required per assembly: 1 $67.32 $60.59 - + Add to cart
3	SCREW Part #: 09125-04501 Required per assembly: 2 Note: SCREW (4X45); $4.05 $3.65 - + Add to cart
4	GASKET Part #: 35713-14D30 Required per assembly: 1 Note: GASKET, LENS; $8.53 $7.68 - + Add to cart
5	GASKET Part #: 35717-32E30 Required per assembly: 1 Note: FOR BASE $6.20 $5.58 - + Add to cart
6	BULB, (12V, 21/8W) Part #: 09471-12128 Required per assembly: 1 Note: BULB (12V,21/5W); $8.20 $7.38 - + Add to cart
7	CUSHION Part #: 09320-09016 Required per assembly: 3 Note: CUSHION, SIDE COWL; $2.45 $2.21 - + Add to cart
8	SPACER (6.1X8X9.5) Part #: 09180-06248 Required per assembly: 3 $3.99 $3.59 - + Add to cart
9	WASHER (6.5X20X1.6) Part #: 09160-06088 Required per assembly: 3 Note: WASHER, BRACKET; $2.09 $1.88 - + Add to cart
10	SCREW Part #: 02142-0625B Required per assembly: 3 $2.22 $2.00 - + Add to cart
11	LAMP, ASSEMBLY, LICENSE Part #: 35910-32E30 Required per assembly: 1 $191.31 $163.56 - + Add to cart
12	COVER, LENS Part #: 35917-17C00 Required per assembly: 1 $83.71 $71.56 - + Add to cart
13	LENS Part #: 35912-38A30 Required per assembly: 1 $22.10 $19.89 - + Add to cart
14	GASKET Part #: 35913-38A30 Required per assembly: 1 $3.65 $3.29 - + Add to cart
15	CUSHION Part #: 35761-24B31 Required per assembly: 1 Not Available
16	SPACER Part #: 35766-24B30 Required per assembly: 2 $3.65 $3.29 - + Add to cart
17	BULB, (12V, 5W) Part #: 09471-12058 Required per assembly: 1 Note: BULB (12V5W,BF150-40160A); $2.55 $2.30 - + Add to cart
18	NUT, LICENSE, LAMP Part #: 09140-04006 Required per assembly: 2 $6.22 $5.60 - + Add to cart
19	BRACKET, LICENSE, PLATE Part #: 35927-26E30 Required per assembly: 1 $15.34 $13.81 - + Add to cart
20	WASHER Part #: 09169-06073 Required per assembly: 4 $4.29 $3.86 - + Add to cart
21	CUSHION Part #: 09320-09016 Required per assembly: 2 Note: CUSHION, SIDE COWL; $2.45 $2.21 - + Add to cart
22	SCREW Part #: 02142-0625B Required per assembly: 2 $2.22 $2.00 - + Add to cart
23	CUSHION Part #: 09321-06023 Required per assembly: 1 $2.64 $2.38 - + Add to cart
24	NUT Part #: 08310-0006B Required per assembly: 2 Note: NUT, HEADLAMP; $2.85 $2.57 - + Add to cart
