2009 Suzuki GSX-R1000 - Intake Pipe

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

PIPE, AIR, INTAKE, RH

Part #: 94420-47H00 Required per assembly: 1
$135.91
2

PIPE, AIR, INTAKE, LH

Part #: 94430-47H00 Required per assembly: 1
$138.10
3

MOLDING, RH

Part #: 94423-47H00 Required per assembly: 1
$20.03
4

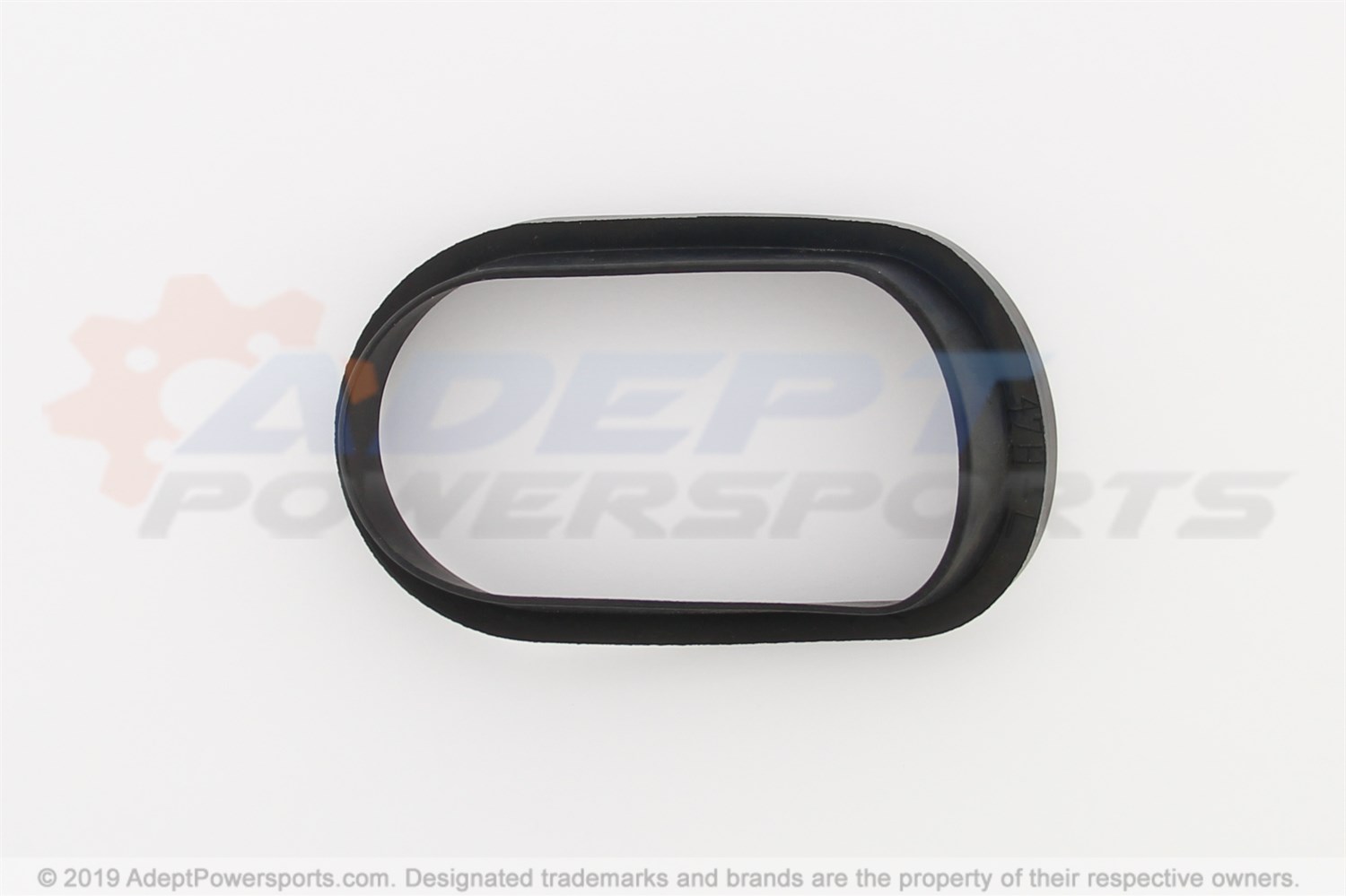

Suzuki 94433-47H00 Molding, Lh

MOLDING, LH

Part #: 94433-47H00 Required per assembly: 1
$19.77
5

CLIP, BODY, COVER, (BLACK)

Part #: 09409-06314-5PK Required per assembly: 4 Note: Sold Each (1)
$4.28
6

NUT

Part #: 09148-05052 Required per assembly: 4
$4.10
$3.69
7

CUSHION, FRONT

Part #: 09320-08028 Required per assembly: 2 Note: CUSHION;
$4.88
8

BOLT, SHIFT, LEVER

Part #: 01550-0620A Required per assembly: 1 Note: BOLT, INSPECTION CAP;
$3.18
9

BOLT

Part #: 01550-0616A Required per assembly: 1
$3.18
10

WASHER

Part #: 09169-06082 Required per assembly: 2
$5.97
11

COVER, INTAKE, FRONT, (SILVER)

Part #: 94671-47H10-YKV Required per assembly: 1
$242.78
$242.08
12-1

COVER, INTAKE, R

Part #: 94672-47H10-YKV Required per assembly: 1 Note: FOR KGL
$266.96
12-3

COVER, INTAKE, R

Part #: 94672-47H10-YBD Required per assembly: 1 Note: FOR GLR
$270.51
$236.31
12-4

COVER, INTAKE, RH, (RED)

Part #: 94672-47H10-YMK Required per assembly: 1
Not Available
13-1

COVER, INTAKE, L

Part #: 94682-47H10-YKV Required per assembly: 1 Note: FOR KGL
$262.66
13-3

COVER, INTAKE, L

Part #: 94682-47H10-YBD Required per assembly: 1 Note: FOR GLR
$270.51
$236.31
13-4

COVER, INTAKE, LH, (RED)

Part #: 94682-47H10-13L Required per assembly: 1
$164.57
$143.77
14

TAPE, HEADLAMP, LENS

Part #: 94443-06G00 Required per assembly: 4 Note: 6X25X0.13
$5.35
15

PROTECTOR (80X30X1.0)

Part #: 33652-29F00 Required per assembly: 2 Note: CUSHION (30X80X1);
$5.02
16

CLIP

Part #: 94479-35F00 Required per assembly: 2 Note: CLIP, LOWER;
$8.91
17

COWL, SIDE, UPPER, RH, (SILVER)

Part #: 94473-47H00-YUS Required per assembly: 1
$345.30
$301.64
18

COWL, SIDE, UPPER, LH, (SILVER)

Part #: 94483-47H00-YUS Required per assembly: 1
$345.30
$301.64
19

SCREW, REAR

Part #: 09139-05077 Required per assembly: 2
$5.26
20

SCREW, SPEEDOMETER

Part #: 03541-0516A Required per assembly: 4 Note: SCREW, INNER COVER;
$2.24
