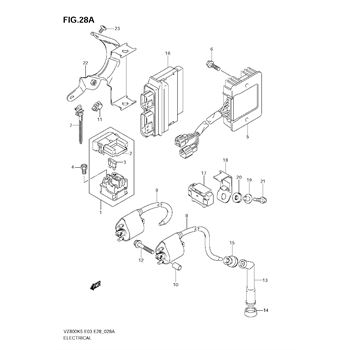

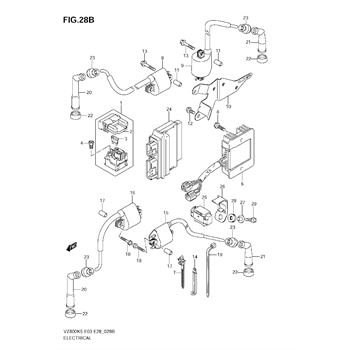

Electrical (Model K9 E33) replacement parts for 2009 Suzuki VZ800Z M50

OEM Parts Suzuki 2009 Suzuki VZ800Z M50 Electrical (Model K9 E33)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RELAY, STARTING, MOTOR Part #: 31800-21E30 Required per assembly: 1 Note: RELAY ASSY, STARTING MOTOR; $83.16 $71.09 - + Add to cart
2	COVER Part #: 31861-47E00 Required per assembly: 1 Note: COVER, RELAY ASSY; $17.46 $14.92 - + Add to cart
3	FUSE, 30A Part #: 09481-30101 Required per assembly: 2 $2.75 $2.48 - + Add to cart
4	SCREW Part #: 09128-06013 Required per assembly: 2 Note: BOLT, STG MOT TERM; $1.56 $1.40 - + Add to cart
5	RECTIFIER ASSEMBLY Part #: 32800-47H00 Required per assembly: 1 $338.10 $289.06 - + Add to cart
6	SCREW Part #: 02162-0620B Required per assembly: 2 Note: BOLT; $2.56 $2.30 - + Add to cart
7	CLAMP (L:90) Part #: 09407-11402 Required per assembly: 1 $2.20 $1.98 - + Add to cart
8	COIL, ASSEMBLY, IGNITION, REAR Part #: 33410-39G00 Required per assembly: 1 Note: FOR LH,FR $139.60 $119.34 - + Add to cart
9	COIL, ASSEMBLY, IGNITION, REAR Part #: 33410-39G10 Required per assembly: 1 Note: FOR LH,RR $134.23 $120.81 - + Add to cart
10	BRACKET, IGN, COIL, REAR Part #: 33414-39G00 Required per assembly: 1 Not Available
11	SPACER (6.4X10X18) Part #: 09180-06195 Required per assembly: 4 $4.70 $4.23 - + Add to cart
12	BOLT, IGN, COIL, BRAKET, RR Part #: 01547-0610A Required per assembly: 3 Note: BOLT, BRACKET REAR; $2.58 $2.32 - + Add to cart
13	BOLT Part #: 01547-0635A Required per assembly: 4 Note: BOLT, IGN COIL REAR; $2.88 $2.59 - + Add to cart
14	CLAMP(L:80) Part #: 09404-06036 Required per assembly: 1 $2.12 $1.91 - + Add to cart
15	COIL, ASSEMBLY, IGNITION, FRONT Part #: 33420-39G00 Required per assembly: 1 Note: FOR LH $134.23 $114.76 - + Add to cart
16	COIL, ASSEMBLY, IGNITION Part #: 33420-41F11 Required per assembly: 1 $93.36 $79.81 - + Add to cart
17	SPACER (6.4X10X18) Part #: 09180-06195 Required per assembly: 4 $4.70 $4.23 - + Add to cart
18	BOLT, IGNITION, COIL, (5X35) Part #: 09106-05033 Required per assembly: 4 Not Available
19	CLAMP (L:190) Part #: 09407-19401 Required per assembly: 2 $3.22 $2.90 - + Add to cart
20	CAP, SPARK, PLUG Part #: 33510-11410 Required per assembly: 4 $33.50 $28.63 - + Add to cart
21	CAP, SPARK, PLUG Part #: 33510-38B00 Required per assembly: 4 Note: CAP, SPARK PLUG (SIDE); $34.27 $30.84 - + Add to cart
22	SEAL, SPARK, PLUG Part #: 33541-47D00 Required per assembly: 4 $9.67 $8.70 - + Add to cart
23	SEAL, HIGHTENSION, CORD Part #: 33542-38B00 Required per assembly: 4 Note: SEAL, HIGH TENSION CORD; $30.87 $26.39 - + Add to cart
24	CONTROL, UNIT, FI Part #: 32920-39GC0 Required per assembly: 1 Not Available
25	SENSOR, ASSEMBLY, FUEL, CUT Part #: 33960-06G10 Required per assembly: 1 $116.08 $99.24 - + Add to cart
26	BRACKET, FUEL, CUT Part #: 33961-41F00 Required per assembly: 1 Not Available
27	SPACER, FUEL, CUT Part #: 09180-06325 Required per assembly: 1 $4.85 $4.37 - + Add to cart
28	CUSHION Part #: 09320-08516 Required per assembly: 1 Note: CUSHION, FUEL CUT; $2.58 $2.32 - + Add to cart
29	BOLT Part #: 01547-0616A Required per assembly: 1 $2.45 $2.21 - + Add to cart
