Cylinder Crankcase replacement parts for 2009 Yamaha 9.9MSH

OEM Parts Yamaha 2009 Yamaha 9.9MSH Cylinder Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANK CYLINDER ASSEMBLY Part #: 63V-W0090-04-1S Required per assembly: 1 $1,310.52 $1,214.38 - + Add to cart
2	CRANKCASE ASSEMBLY Part #: 63V-15100-03-00 Required per assembly: 1 $780.02 $718.11 - + Add to cart
3	PIPE, JOINT Part #: 624-14485-00-00 Required per assembly: 1 Note: ((150)) [PIPE,JOINT] $8.49 $8.30 - + Add to cart
4	PIPE, JOINT Part #: 650-14485-03-00 Required per assembly: 2 $7.99 $7.56 - + Add to cart
5	HOSE Part #: 90445-07M90-00 Required per assembly: 1 $7.99 $7.24 - + Add to cart
6	HOSE Part #: 90445-07M90-00 Required per assembly: 1 $7.99 $7.24 - + Add to cart
7	CLIP, SCISSOR Part #: 90467-06016-00 Required per assembly: 4 $3.29 $3.24 - + Add to cart
8	ANODE Part #: 682-11325-00-00 Required per assembly: 1 $5.95 $5.88 - + Add to cart
9	SCREW, FLAT, HEAD Part #: 98780-05016-00 Required per assembly: 1 $3.14 $2.78 - + Add to cart
10	PIN, DOWEL Part #: 93606-12019-00 Required per assembly: 2 Note: (USA) $4.24 $3.21 - + Add to cart
11	BOLT, WITH, WASHER Part #: 90119-08M07-00 Required per assembly: 6 $5.49 $4.22 - + Add to cart
12	INNER, COVER, EXHAU Part #: 63V-41111-00-1S Required per assembly: 1 $25.98 $24.92 - + Add to cart

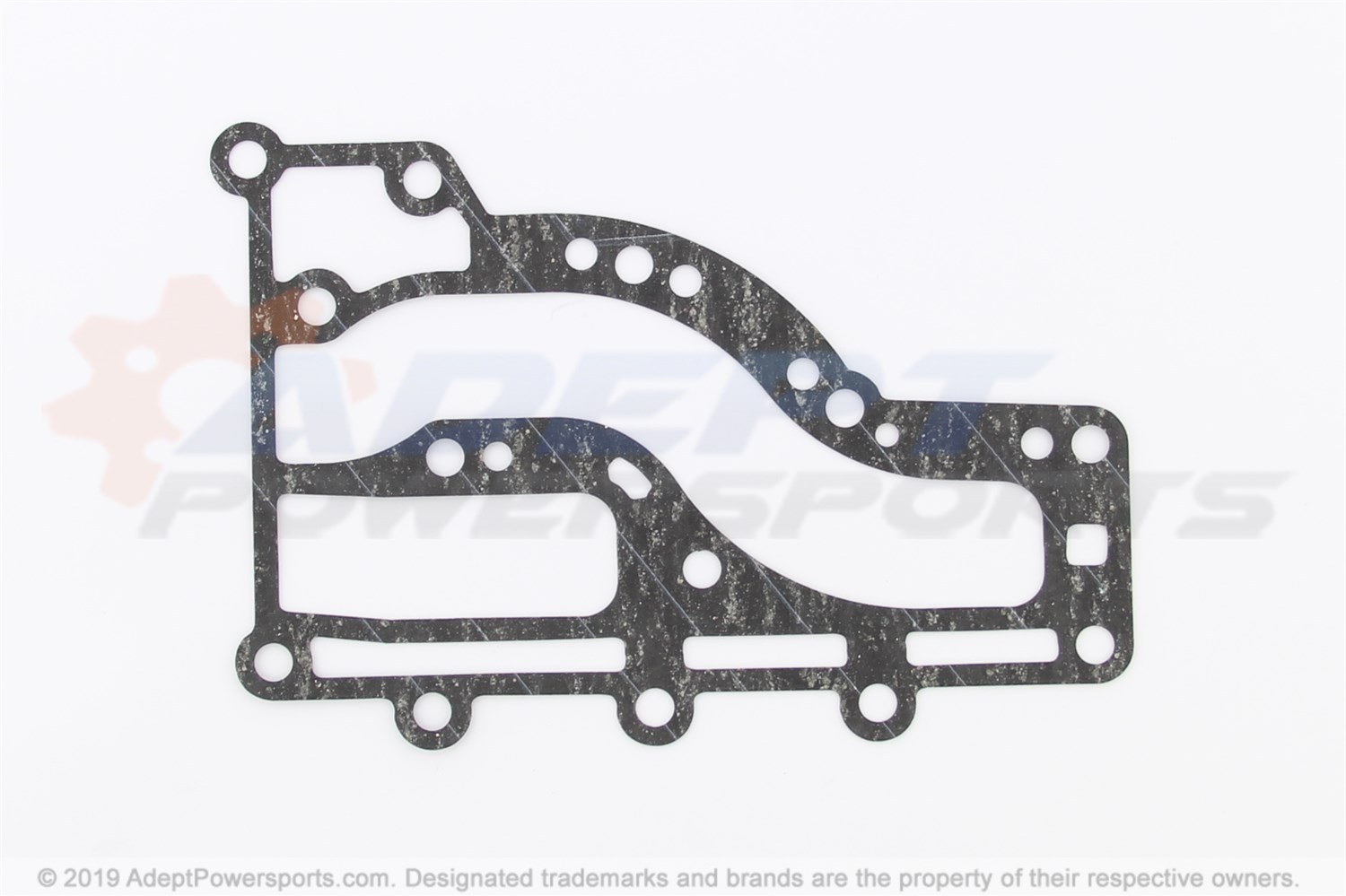

13	GASKET EXHAUST Part #: 63V-41112-A0-00 Required per assembly: 2 $6.99 $6.49 - + Add to cart
14	OUTER, COVER, EXHAU Part #: 63V-41113-00-1S Required per assembly: 1 $35.99 $34.75 - + Add to cart
15	NIPPLE, HOSE Part #: 676-11372-00-00 Required per assembly: 1 $15.99 $15.86 - + Add to cart
16	HOSE (L420) Part #: 90445-092K1-00 Required per assembly: 1 $12.49 $10.45 - + Add to cart
17	BOLT, WITH, WASHER Part #: 90119-06MA4-00 Required per assembly: 13 Note: ((150)) $4.50 $4.37 - + Add to cart
18	HEAD, CYLINDER, 1 Part #: 6E7-11111-01-1S Required per assembly: 1 $128.99 $123.95 - + Add to cart
19	GASKET, CYLINDER, HEAD, 1 Part #: 63V-11181-A2-00 Required per assembly: 1 $35.99 $34.75 - + Add to cart
20	BOLT, WASHER, BASED Part #: 90105-07M05-00 Required per assembly: 11 $2.64 $2.19 - + Add to cart
21	COVER, THERMOSTAT Part #: 682-12413-00-1S Required per assembly: 1 $13.99 $13.59 - + Add to cart
22	THERMOSTAT Part #: 6E5-12411-30-00 Required per assembly: 1 $39.95 $39.28 - + Add to cart
23	SEAL, THERMOSTAT Part #: 688-12412-00-00 Required per assembly: 1 $5.99 $5.59 - + Add to cart
24	WASHER, PLATE Part #: 90201-16M03-00 Required per assembly: 1 $5.49 $5.29 - + Add to cart
25	GASKET, COVER Part #: 682-12414-A1-00 Required per assembly: 1 $5.54 $4.86 - + Add to cart
26	BOLT, WITH, WASHER Part #: 90119-06MA2-00 Required per assembly: 4 $3.29 $3.24 - + Add to cart
27	BR7HS1 NGK SPLUG Part #: BR7-HS100-00-00 Required per assembly: 2 Note: (NGK BR7HS-10) Sold in multiples of 10 only $4.95 $4.91 - + Add to cart
