OEM Parts Bmw 2010-2012 Bmw G650GS 10+ (R131) Vario Case

2010-2012 Bmw G650GS 10+ (R131) 04/10-03/12 USA - Vario Case

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

VARIO CASE, LEFT

Part #: 77417723467 Required per assembly: 1
Currently Not Available
01

VARIO CASE, RIGHT

Part #: 77417723468 Required per assembly: 1
Currently Not Available
02

INTERIOR BAG F CASE

Part #: 71607687610 Required per assembly: 2 Note: LEFT
Currently Not Available
03

REFLECTOR, RED

Part #: 63141459995 Required per assembly: 1 Note: FOR VEHICLES WITH SWITZERLAND VERSION
Currently Not Available
04

LOCK CYLINDER

Part #: 51252313282 Required per assembly: 1 Note: FOR FILLER CAP
Currently Not Available
04

LOCK (WITH KEY CODE)

Part #: 51252313283 Required per assembly: 1 Note: FOR FILLER CAP
Not Available
04

SET OF SUITCASE LOCKS

Part #: 51257660860 Required per assembly: 1 Note: ONLY APPLIES TO SADDLE BAGS, LARGE
Currently Not Available
05

GENERAL KEY (BLANK) - RESERVE

Part #: 51252313298 Required per assembly: 1
Currently Not Available
05

GENERAL KEY (CODE)

Part #: 51259062811 Required per assembly: 1
Not Available
06

GENERAL KEY (BLANK) - BLACK

Part #: 51252313229 Required per assembly: 1
Currently Not Available
06

GENERAL KEY (CODE)

Part #: 51259062812 Required per assembly: 1
Not Available

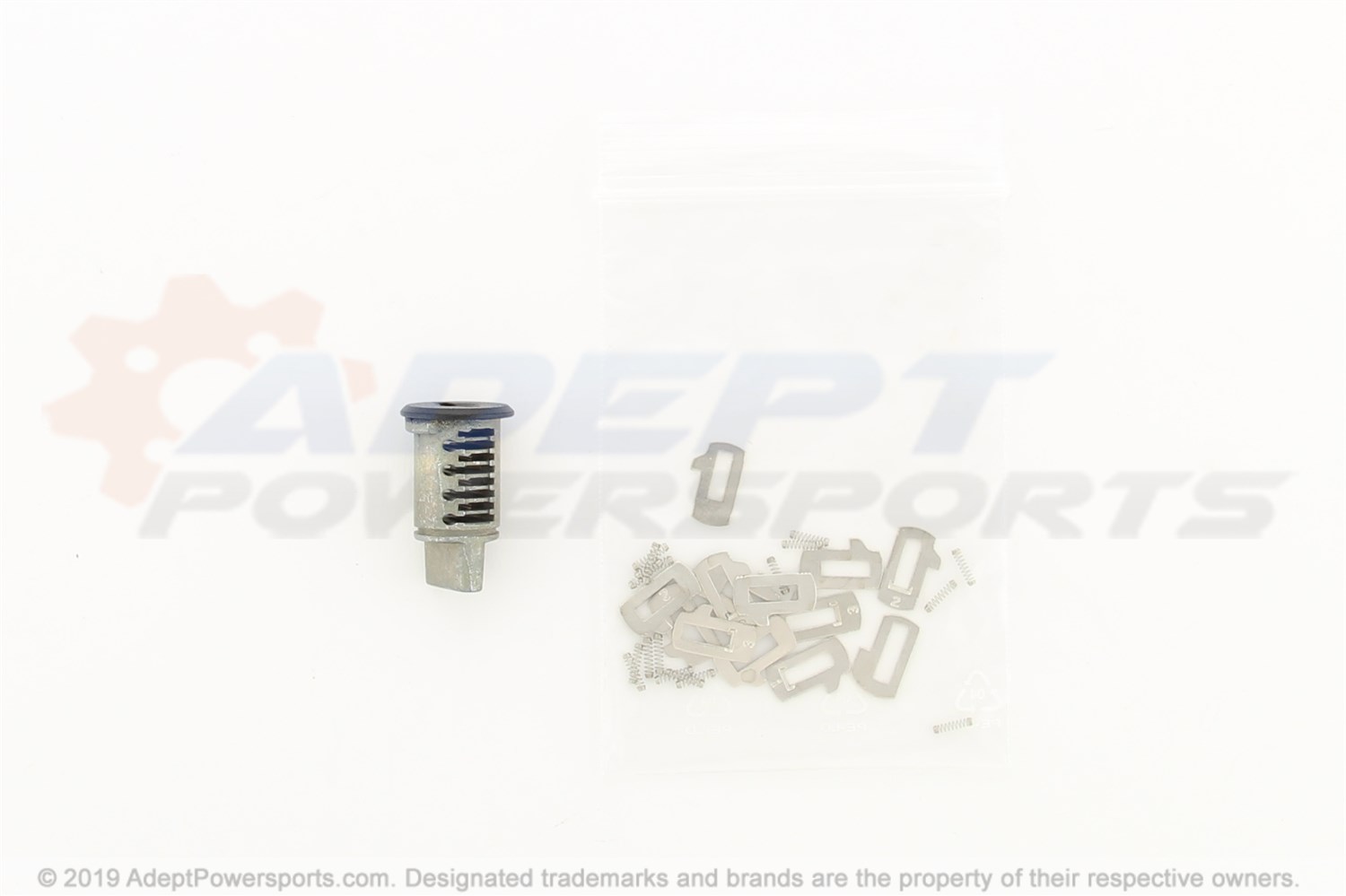

07

SET: REP.KIT F LOCK CYLINDER

Part #: 51252337269 Required per assembly: 2 Note: FOR FILLER CAP
Not Available
