Harnesses - M10wh76ag replacement parts for 2010 Polaris MILITARY RANGER CREW

OEM Parts Polaris 2010 Polaris MILITARY RANGER CREW M10WH76AG Harnesses - M10wh76ag

Harnesses - M10WH76AG Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT, HARNESS, TPS Part #: 2203801 Required per assembly: 1 Currently Not Available
1	KIT, HARNESS, ENGINE, TEMP Part #: 2875543 Required per assembly: 1 Currently Not Available

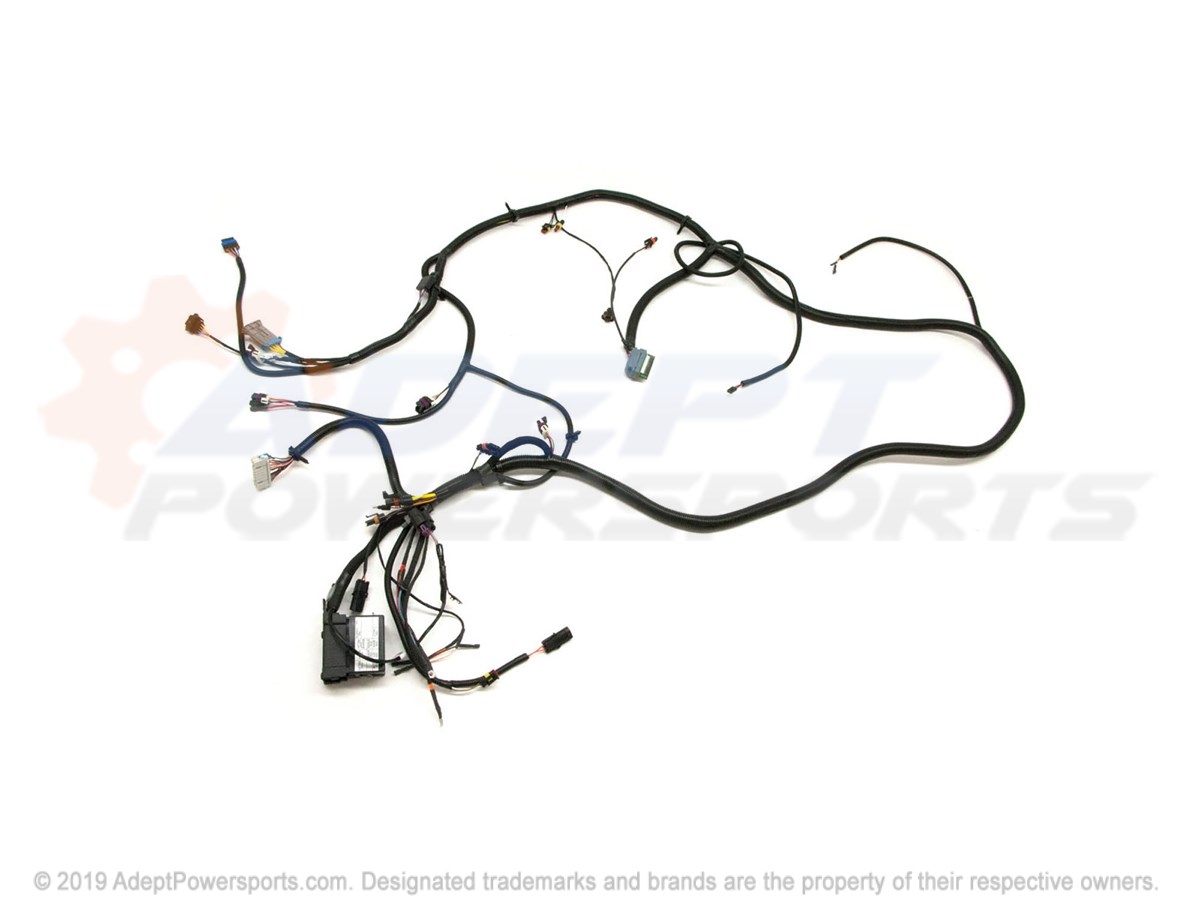

1	HARNESS, CHASSIS Part #: 2411245 Required per assembly: 1 Note: Incl. 2-6,9,10, All Kits Currently Not Available
1	KIT-HARNESS CPS Part #: 2878077 Required per assembly: 1 ~~$167.99~~ $118.10 - + Add to cart
1	KIT-HARNESS, T-BAP, T-MAP Part #: 2878494 Required per assembly: 1 Currently Not Available
2	KIT, HARNESS, RESISTOR, MODULE Part #: 2204890 Required per assembly: 1 Currently Not Available
5	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 3 Currently Not Available
6	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
7	PLATE, FUSE, MOUNT Part #: 5253675 Required per assembly: 1 Note: Plate, Fuse Mount Currently Not Available
8	SCREW Part #: 7512026 Required per assembly: 4 Note: Screw Currently Not Available
9	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 1 Currently Not Available
10	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
11	HARNESS, BOX Part #: 2412355 Required per assembly: 1 Currently Not Available
12	HARNESS, DASH Part #: 2411386 Required per assembly: 1 Currently Not Available
13	STRAP PANDUIT Part #: 7080138 Required per assembly: 5 ~~$1.99~~ $1.15 - + Add to cart
14	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
15	FOIL, HARNESS Part #: 5813570 Required per assembly: 1 Currently Not Available
16	HARNESS, JUMPER, HORN Part #: 2411566 Required per assembly: 1 Currently Not Available
17	HORN Part #: 4011579 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518196 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
