Rack Mounting, Front And Bumper Mounting - M10mh68ma/Mv replacement parts for 2010 Polaris MILITARY Sportsman 700

OEM Parts Polaris 2010 Polaris MILITARY Sportsman 700 M10MH68MA/MV Rack Mounting, Front And Bumper Mounting - M10mh68ma/Mv

Rack Mounting, Front and Bumper Mounting - M10MH68MA/MV Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PAD, REAR, SHAFT Part #: 5812047 Required per assembly: 7 Note: Sold in multiples of 10 only Currently Not Available
2	D-RING, RACK Part #: 7081512 Required per assembly: 5 Currently Not Available
2	PLATFORM, FRONT Part #: 1016456-463 Required per assembly: 1 Currently Not Available
3	WASHER, FLAT Part #: 7555960 Required per assembly: 8 Currently Not Available
4	SCREW Part #: 7518382 Required per assembly: 4 Currently Not Available
5	CABLE, PIN Part #: 7081163 Required per assembly: 2 Currently Not Available
6	BRACKET, SUPPORT, CORNER Part #: 5248445-418 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7518181 Required per assembly: 22 Currently Not Available
8	SUPPORT, BRUSH, GUARD, FRONT, LH, BLACK Part #: 1016159-329 Required per assembly: 1 Currently Not Available
8	SUPPORT, BRUSH, GUARD, FRONT, RH, BLACK Part #: 1016160-329 Required per assembly: 1 Currently Not Available
9	NUT, NYLOCK Part #: 7542343 Required per assembly: 12 Note: Nut, Flange Currently Not Available

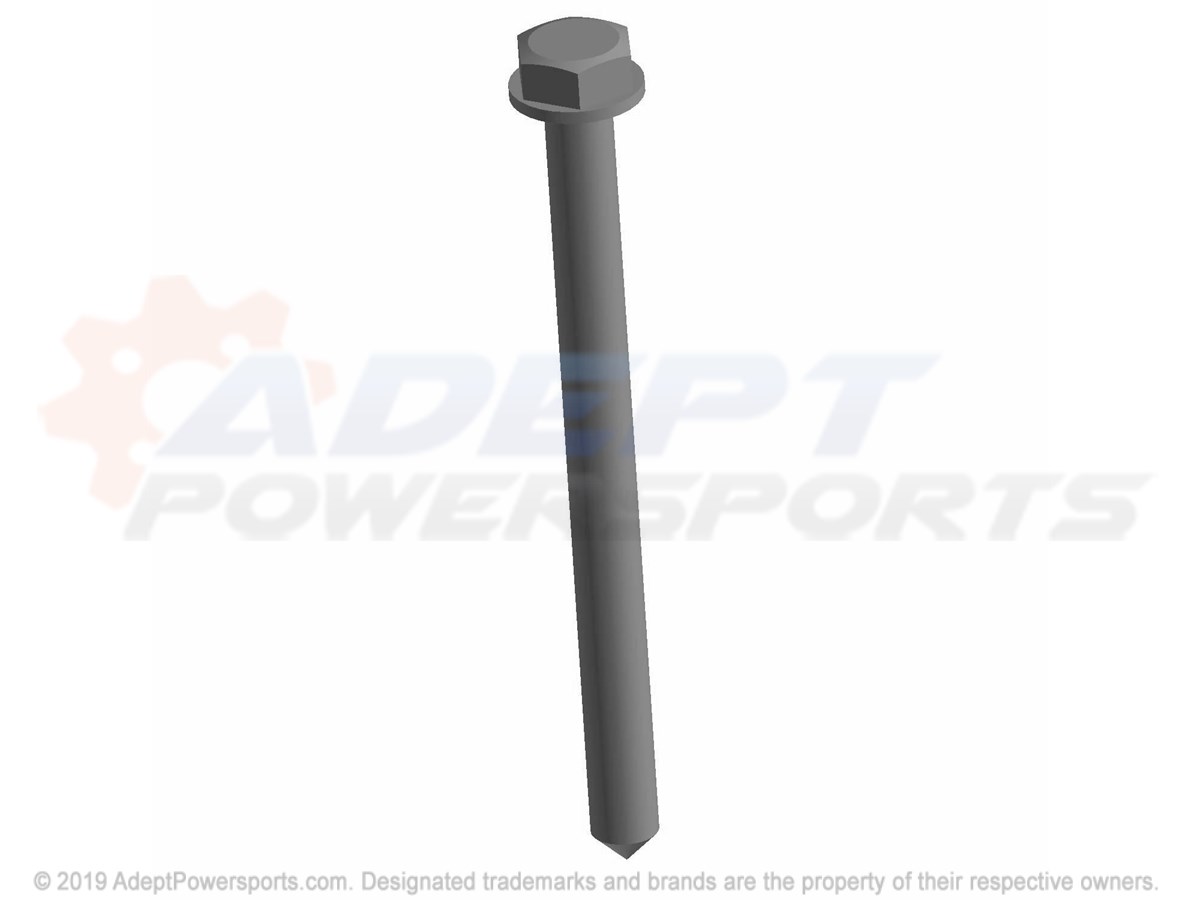

10	SCREW Part #: 7515399 Required per assembly: 16 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
11	SUPPORT, RACK, FRONT, RH Part #: 1014918-067 Required per assembly: 1 Currently Not Available
11	SUPPORT, RACK, FRONT, LH Part #: 1014917-067 Required per assembly: 1 Currently Not Available
12	BOLT, FLANGE Part #: 7518340 Required per assembly: 6 Note: Screw Currently Not Available
13	BOLT Part #: 7518883 Required per assembly: 2 Currently Not Available
14	MOUNT, FRONT, BRUSH, GUARD/LOWER, RADIATOR, BLACK Part #: 1016158-329 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7517208 Required per assembly: 8 Note: Sold in multiples of 10 only Currently Not Available
16	PLATE, VENT, MOUNT, RH Part #: 5248630-418 Required per assembly: 1 Currently Not Available
17	RING, TOW, BAR, BLACK Part #: 1014358-067 Required per assembly: 2 Currently Not Available
18	BOLT Part #: 7515485 Required per assembly: 2 Currently Not Available
19	NUT, NYLOC Part #: 7542451 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
20	RIVET, 3/16X.402 Part #: 7621432 Required per assembly: 17 Note: Sold in multiples of 50 only Currently Not Available
21	TUBE, TOW, BAR, MAIN, BLACK Part #: 1014360-067 Required per assembly: 1 Currently Not Available
22	HINGE, INSTRUMENT, PANEL Part #: 7020024-468 Required per assembly: 1 Currently Not Available
23	BUMPER, EXTRUDED Part #: 5412445 Required per assembly: 1 Currently Not Available
24	PIN, HITCH, COTTERLESS Part #: 7661177 Required per assembly: 2 Currently Not Available
25	TUBE, TOW, BAR, BLACK Part #: 1014359-067 Required per assembly: 1 Currently Not Available
26	BRUSHGUARD, FRONT Part #: 1014841-418 Required per assembly: 1 Currently Not Available
27	PLATE, VENT, DOOR Part #: 5251509-418 Required per assembly: 1 Currently Not Available
28	GROMMET Part #: 5412507 Required per assembly: 1 Currently Not Available
29	PIN, SEAT, LATCH Part #: 5910096 Required per assembly: 1 Currently Not Available
30	H/L, ASM, LH, 35W Part #: 2431014 Required per assembly: 1 Currently Not Available
30	H/L, ASM, RH, 35W Part #: 2431015 Required per assembly: 1 Currently Not Available
31	PLATE, VENT, MOUNT, LH Part #: 5251508-418 Required per assembly: 1 Currently Not Available
32	BUMPER, EXTRUDED, SHORT Part #: 5412446 Required per assembly: 2 Currently Not Available
33	WASHER Part #: 7555734 Required per assembly: 1 Note: Washer, Flat ~~$1.99~~ $1.15 - + Add to cart
