Front Caliper - M10yh68ma replacement parts for 2010 Polaris MVRS 700 4X4 - M10YH68MA

OEM Parts Polaris 2010 Polaris MVRS 700 4X4 M10YH68MA Front Caliper - M10yh68ma

Front Caliper - M10YH68MA Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

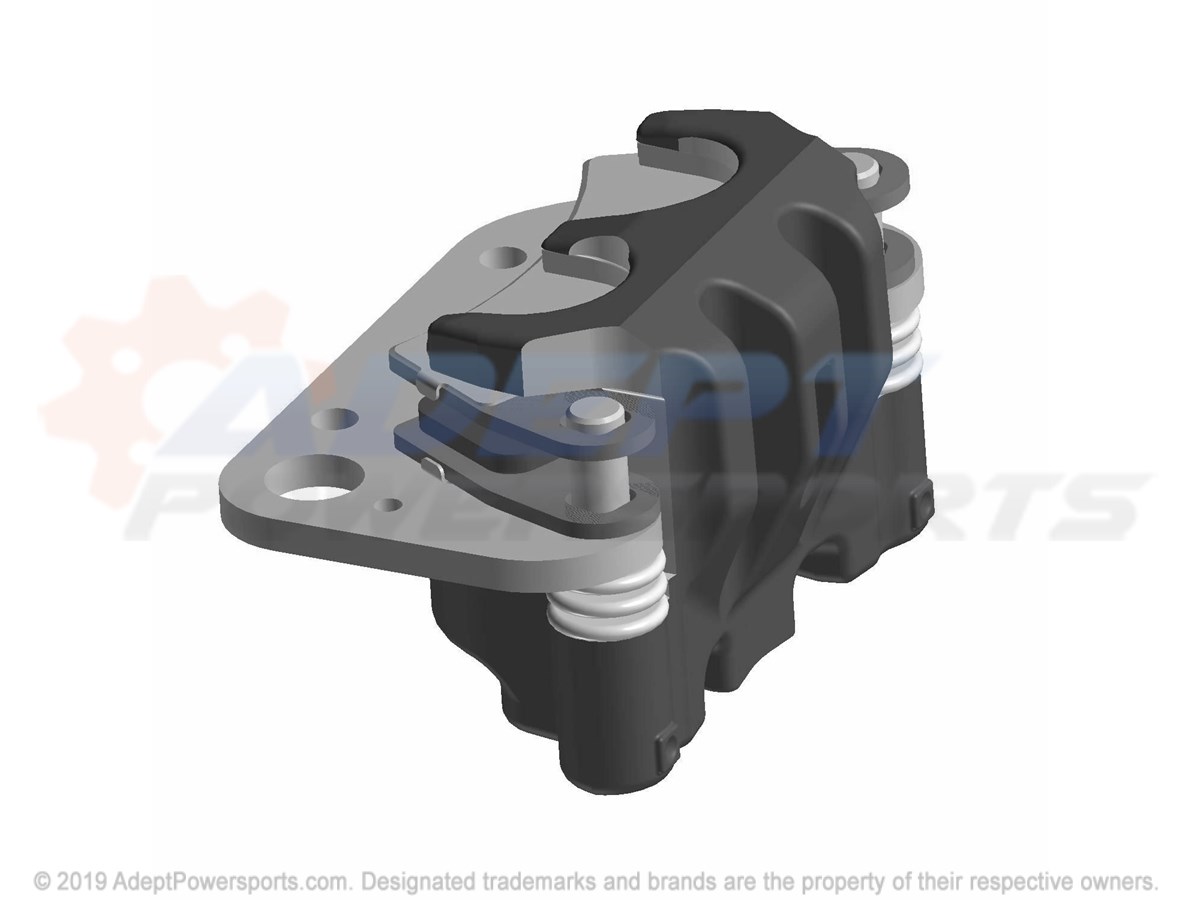

-	ASSEMBLY, CALIPER, BRAKE, DOUBLE, BORE, LH Part #: 1911349 Required per assembly: 1 Currently Not Available
-	ASSEMBLY, CALIPER, DOUBLE, BORE, BRAKE, RH Part #: 1911352 Required per assembly: 1 Currently Not Available
1	SCREW, BLEEDER Part #: 7081343 Required per assembly: 1 Currently Not Available
2	SETSCREW, SKT.HD. Part #: 7515489 Required per assembly: 1 Currently Not Available
3	K-ASM, PAD, BRAKE, DB, 1.375 Part #: 2205949 Required per assembly: 2 Note: Two pads Currently Not Available
4	KIT, BOOT, F.BRAKE Part #: 1930642 Required per assembly: 1 Note: Incl. 4,5 Currently Not Available
5	BOOT, BUSHING Part #: 5412505 Required per assembly: 1 Currently Not Available
6	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 1 Currently Not Available
7	SEAL, CALIPER, INNER Part #: 5412907 Required per assembly: 4 Currently Not Available
8	PISTON, CALIPER Part #: 5135134 Required per assembly: 2 Currently Not Available
9	ASSEMBLY, CALIPER, MOUNT, DB Part #: 1911348 Required per assembly: 1 Currently Not Available
