2010 Polaris RANGER EV-LSV - R10RC08LA/LG/LR - Battery - R10rc08la/Lg/Lr

Battery - R10RC08LA/LG/LR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2
Polaris 1017776-329 Tray, Battery, Black

TRAY, BATTERY, BLACK

Part #: 1017776-329 Required per assembly: 2
Currently Not Available
3
Polaris 5438353 Strap, Battery, Hold, Down, Long

STRAP, BATTERY, HOLD, DOWN, LONG

Part #: 5438353 Required per assembly: 2
Currently Not Available
4

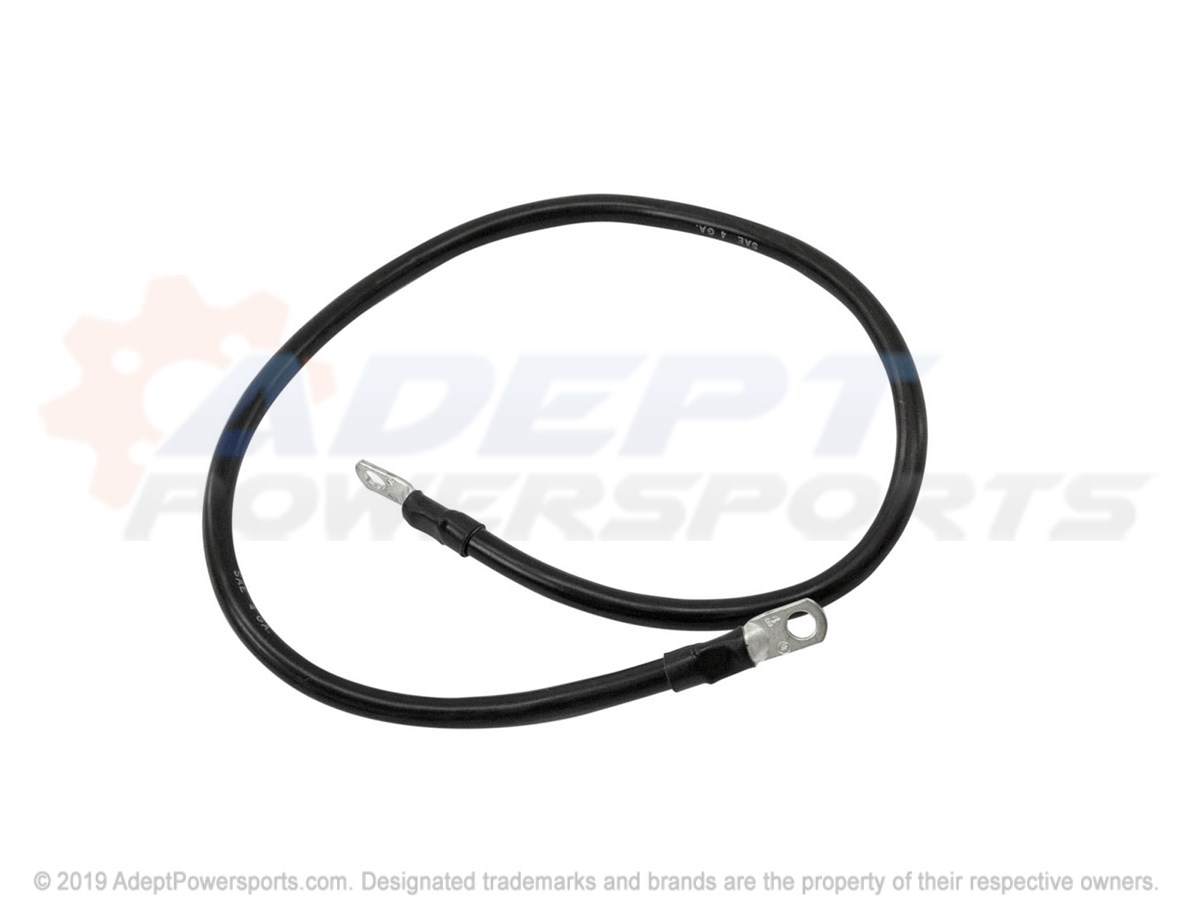

Polaris 4012762 Cable, Battery, Long

CABLE, BATTERY, LONG

Part #: 4012762 Required per assembly: 2 Note: 610 mm
Currently Not Available
5
Polaris 5438346 Strap, Battery, Hold, Down, Short

STRAP, BATTERY, HOLD, DOWN, SHORT

Part #: 5438346 Required per assembly: 2
Currently Not Available
6
Polaris 7519168 Bolt

BOLT

Part #: 7519168 Required per assembly: 12
Currently Not Available
7
Polaris 7542334 Nut, Hex

NUT, HEX

Part #: 7542334 Required per assembly: 16
$2.99
$1.73
-
+
Add to cart
8
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 29 Note: Bolt, Flange
Currently Not Available
9
Polaris 7080138 Strap Panduit

STRAP PANDUIT

Part #: 7080138 Required per assembly: 8
$1.99
$1.15
-
+
Add to cart
10

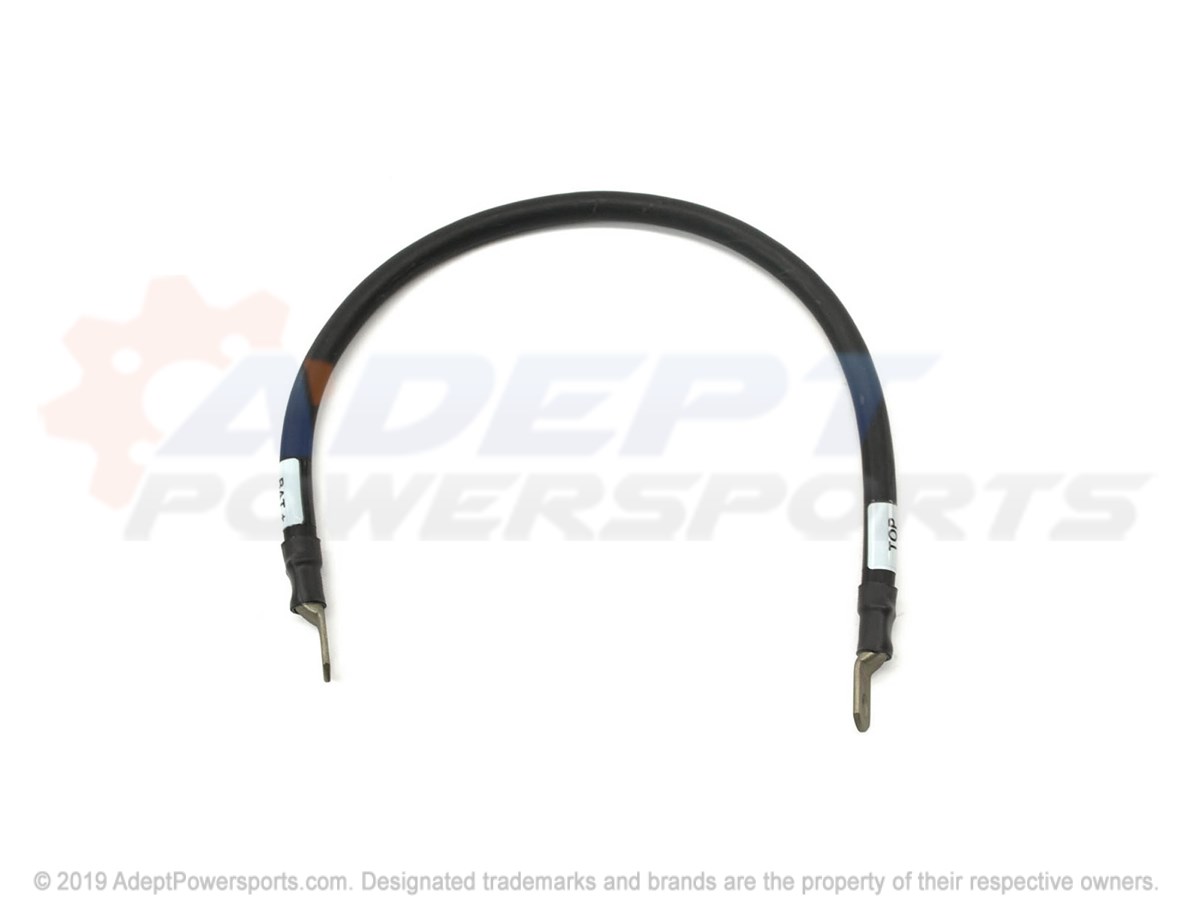

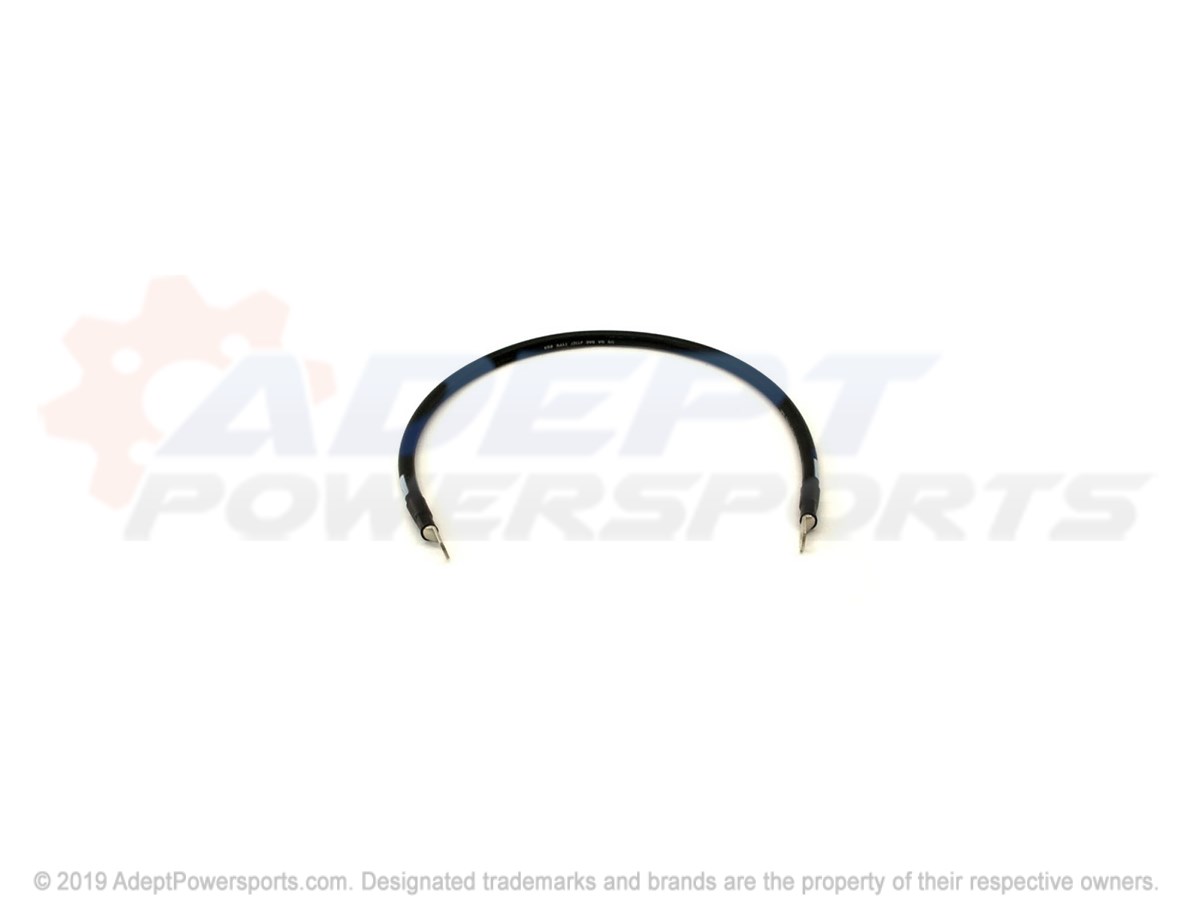

Polaris 4012763 Cable, Battery, Short

CABLE, BATTERY, SHORT

Part #: 4012763 Required per assembly: 6 Note: 150 mm
Currently Not Available
11
Polaris 4012764 Cable, Contactor, Battery

CABLE, CONTACTOR, BATTERY

Part #: 4012764 Required per assembly: 1 Note: 395 mm
Currently Not Available
12
Polaris 4012765 Cable, Controller, Contactor

CABLE, CONTROLLER, CONTACTOR

Part #: 4012765 Required per assembly: 1 Note: 380 mm
Currently Not Available
13
Polaris 4012874 Cable, Motor, U

CABLE, MOTOR, U

Part #: 4012874 Required per assembly: 1 Note: 1350 mm
Currently Not Available
14
Polaris 4012767 Cable, Controller, Battery

CABLE, CONTROLLER, BATTERY

Part #: 4012767 Required per assembly: 1 Note: 660 mm
Currently Not Available
15
Polaris 4012875 Cable, Motor, V

CABLE, MOTOR, V

Part #: 4012875 Required per assembly: 1 Note: 1350 mm
Currently Not Available
16
Polaris 4012876 Cable, Motor, W

CABLE, MOTOR, W

Part #: 4012876 Required per assembly: 1 Note: 1350 mm
Currently Not Available
17
Polaris 5438723 Tub, Battery

TUB, BATTERY

Part #: 5438723 Required per assembly: 2
Currently Not Available
18
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
19
Polaris 7081334 Strap, Tree, Mount, Cable, Tie

STRAP, TREE, MOUNT, CABLE, TIE

Part #: 7081334 Required per assembly: 4 Note: Strap, Tree Mount, Cable Tie
Currently Not Available
20
Polaris 7556528 Washer

WASHER

Part #: 7556528 Required per assembly: 16
Currently Not Available
