OEM Parts Polaris 2010 Polaris RANGER RZR 800 EFI (R10VH76AD/AG/AJ/AK/AT) Body, Hood And Front Body Work - R10vh76ad/Ag/Aj/Ak/At

2010 Polaris RANGER RZR 800 EFI (R10VH76AD/AG/AJ/AK/AT) - Body, Hood And Front Body Work - R10vh76ad/Ag/Aj/Ak/At

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

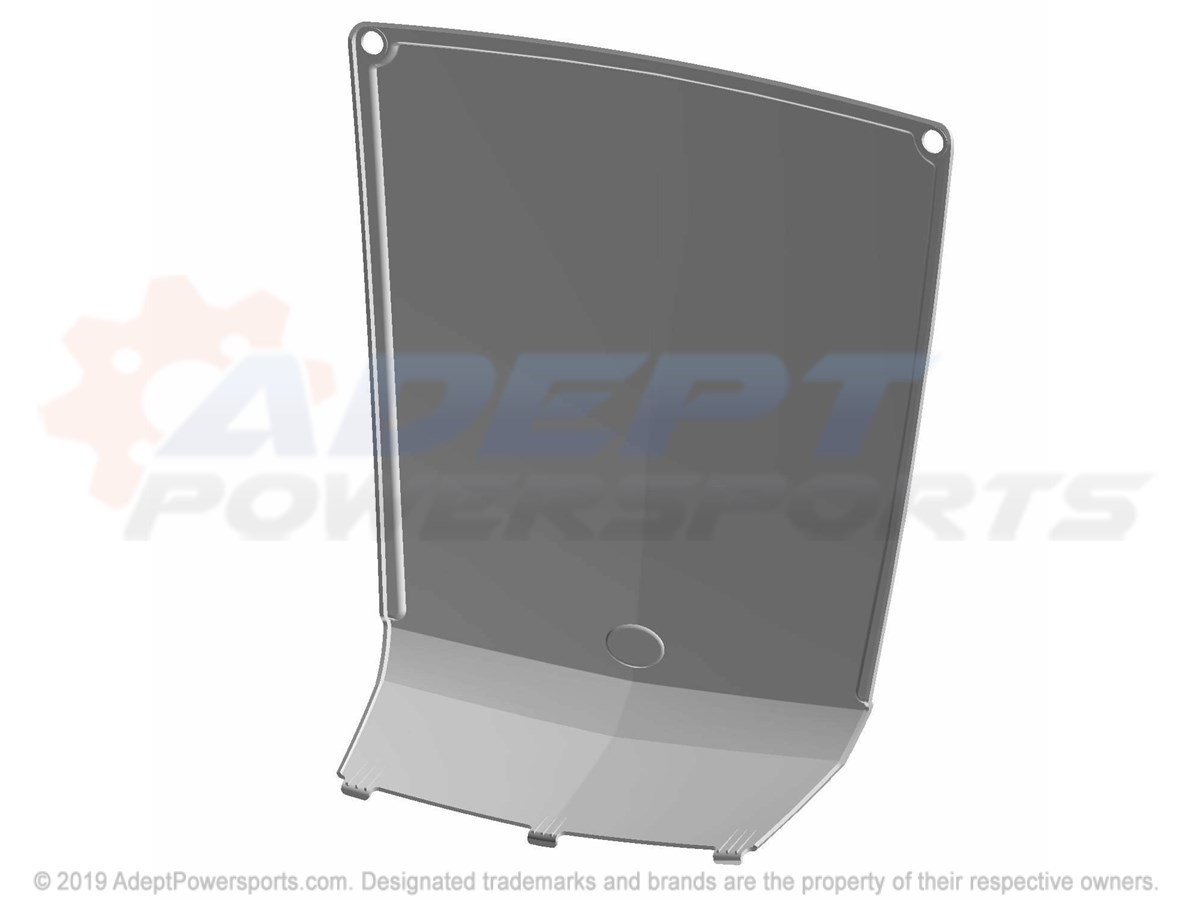

Polaris 5437390-498 Hood, Access, Center, Sagebrush, Green, Metallic, [Ag]

HOOD, ACCESS, CENTER, SAGEBRUSH, GREEN, METALLIC, [AG]

Part #: 5437390-498 Required per assembly: 1
Currently Not Available
1
Polaris 5437469-578 Hood, Access, Center, Tequila, Gold, [At]

HOOD, ACCESS, CENTER, TEQUILA, GOLD, [AT]

Part #: 5437469-578 Required per assembly: 1
Currently Not Available
1
Polaris 5437469-402 Hood, Access, Center, Turbo, Silver, [Aj]

HOOD, ACCESS, CENTER, TURBO, SILVER, [AJ]

Part #: 5437469-402 Required per assembly: 1
Currently Not Available
1
Polaris 5437390-293 Hood, Access, Center, Indy, Red, [Ad]

HOOD, ACCESS, CENTER, INDY, RED, [AD]

Part #: 5437390-293 Required per assembly: 1
Currently Not Available
2
Polaris 7081500 Latch, 1/4, Turn

LATCH, 1/4, TURN

Part #: 7081500 Required per assembly: 2
Currently Not Available
3
Polaris 7555919 Washer

WASHER

Part #: 7555919 Required per assembly: 2 Note: Washer
Currently Not Available
4
Polaris 5413428 Grommet, Latch

GROMMET, LATCH

Part #: 5413428 Required per assembly: 2
Currently Not Available
5
Polaris 5813300 Pad, Hood

PAD, HOOD

Part #: 5813300 Required per assembly: 1
Currently Not Available
6

ASSEMBLY, HOOD, SAGEBRUSH, GREEN, METALLIC

Part #: 2634018-498 Required per assembly: 1 Note: Asm., Hood, Sagebrush Green Metallic [Incl. Warning Decals][AG]
Currently Not Available
6

ASSEMBLY, HOOD, TURBO, SILVER

Part #: 2634019-402 Required per assembly: 1 Note: Asm., Hood, Turbo Silver [Incl. Warning Decals][AJ]
Currently Not Available
6

ASSEMBLY, HOOD, TEQUILA, GOLD

Part #: 2633834-578 Required per assembly: 1 Note: Asm., Hood, Tequila Gold [Incl. Warning Decals][AT]
Currently Not Available
6

ASSEMBLY, HOOD, INDY, RED

Part #: 2634019-293 Required per assembly: 1 Note: Asm., Hood, Indy Red [Incl. Warning Decals][AK]
Currently Not Available
6

ASSEMBLY, HOOD, INDY, RED

Part #: 2634018-293 Required per assembly: 1 Note: Asm., Hood, Indy Red [Incl. Warning Decals][AD]
Currently Not Available
7
Polaris 5437399-070 Bucket, Under, Hood, Storage, Black

BUCKET, UNDER, HOOD, STORAGE, BLACK

Part #: 5437399-070 Required per assembly: 1
Currently Not Available
8
Polaris 7512026 Screw

SCREW

Part #: 7512026 Required per assembly: 5 Note: Screw
Currently Not Available
9
Polaris 5438207-070 Flair, Fender, Front, Lh, Black

FLAIR, FENDER, FRONT, LH, BLACK

Part #: 5438207-070 Required per assembly: 1 Note: Flair, Fender, Front, LH, Black
$52.26
$41.39
-
+
Add to cart
10
Polaris 5438208-070 Flair, Fender, Front, Rh, Black

FLAIR, FENDER, FRONT, RH, BLACK

Part #: 5438208-070 Required per assembly: 1
$52.26
$41.39
-
+
Add to cart
11
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 18
$2.99
$1.73
-
+
Add to cart
12
Polaris 7518280 Screw

SCREW

Part #: 7518280 Required per assembly: 2
Currently Not Available
