07 - Steering replacement parts for 2011 Can Am Commander 800 EFI, 800R, STD & XT

OEM Parts Can Am 2011 Can Am Commander 800 EFI, 800R, STD & XT 07 - Steering

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	STEERING SHAFT Part #: 709401389 Required per assembly: 1 Currently Not Available
2	STEERING WHEEL. PACKAGE XCDPS Part #: 709400650 Required per assembly: 1 Currently Not Available
3	STEERING WHEEL KIT. PACKAGE XXC, XMR. Part #: 715001134 Required per assembly: 1 Note: Includes 3 to 5 Currently Not Available
4	HEX. FLANGED ELASTIC NUT M12 Part #: 233221414 Required per assembly: 1 Note: Sold in multiples of 5 only Currently Not Available
5	CAN-AM LOGO Part #: 704904274 Required per assembly: 1 Currently Not Available
6	STEERING SHAFT Part #: 709401167 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 293300144 Required per assembly: 2 Currently Not Available
8	SYNTHETIC GREASE, 400 G Part #: 293550010 Required per assembly: 1 Currently Not Available
9	BUSHING Part #: 709401733 Required per assembly: 2 Currently Not Available
10	PAINTED STEERING WHEEL SUPPORT Part #: 709401391 Required per assembly: 1 Currently Not Available
11	BUSHING Part #: 705600799 Required per assembly: 2 Currently Not Available
12	BUSHING Part #: 293900106 Required per assembly: 2 $3.99 $3.26 - + Add to cart
13	HEX. FLANGED SCREW M8 X 30 Part #: 207683044 Required per assembly: 2 $1.37 $1.11 - + Add to cart
14	HEX. FLANGED ELASTIC NUT M8. MODEL-XT Part #: 233281414 Required per assembly: 2 Currently Not Available
15	HEX. SCREW M10 X 35 Part #: 207103544 Required per assembly: 1 $1.25 $1.02 - + Add to cart
16	ELASTIC STOP NUT M10. PACKAGE XXC, XMR Part #: 232500416 Required per assembly: 1 Note: Sold in multiples of 4 only Currently Not Available
17	HEX. FLANGED SCREW M8 X 35, SCOTCH GRIP Part #: 207583586 Required per assembly: 1 $1.72 $1.40 - + Add to cart
18	HEX. ELASTIC FLANGED NUT M8 Part #: 233281416 Required per assembly: 1 $1.23 $1.00 - + Add to cart
19	HEX. FLANGED ELASTIC NUT M12 Part #: 233221414 Required per assembly: 1 Note: Sold in multiples of 5 only Currently Not Available
20	CYLINDER_ADJUSTMENT Part #: 709402506 Required per assembly: 1 Currently Not Available
21	SCREW-SOCKET SHOULDER ISO.7379 Part #: 250000649 Required per assembly: 2 Currently Not Available
22	ELASTIC STOP NUT M6. MODEL-XT Part #: 232561434 Required per assembly: 2 Currently Not Available
23	STEERING CENTER. PACKAGE XCDPS Part #: 709400780 Required per assembly: 1 Currently Not Available
24	PHIL-TRUSS PT BZN K40 X 16 Part #: 250000723 Required per assembly: 3 $0.80 $0.65 - + Add to cart
25	BALL JOINT RH Part #: 709402302 Required per assembly: 2 Currently Not Available
26	FLAT WASHER. MODEL-XT Part #: 250200086 Required per assembly: 4 $4.58 $3.71 - + Add to cart
27	NUT M12 Part #: 250100099 Required per assembly: 2 $1.72 $1.40 - + Add to cart
28	COTTER PIN Part #: 211400013 Required per assembly: 2 $0.79 $0.68 - + Add to cart
29	STEERING ASSEMBLY Part #: 709401185 Required per assembly: 1 Note: Includes 29 to 31 Currently Not Available

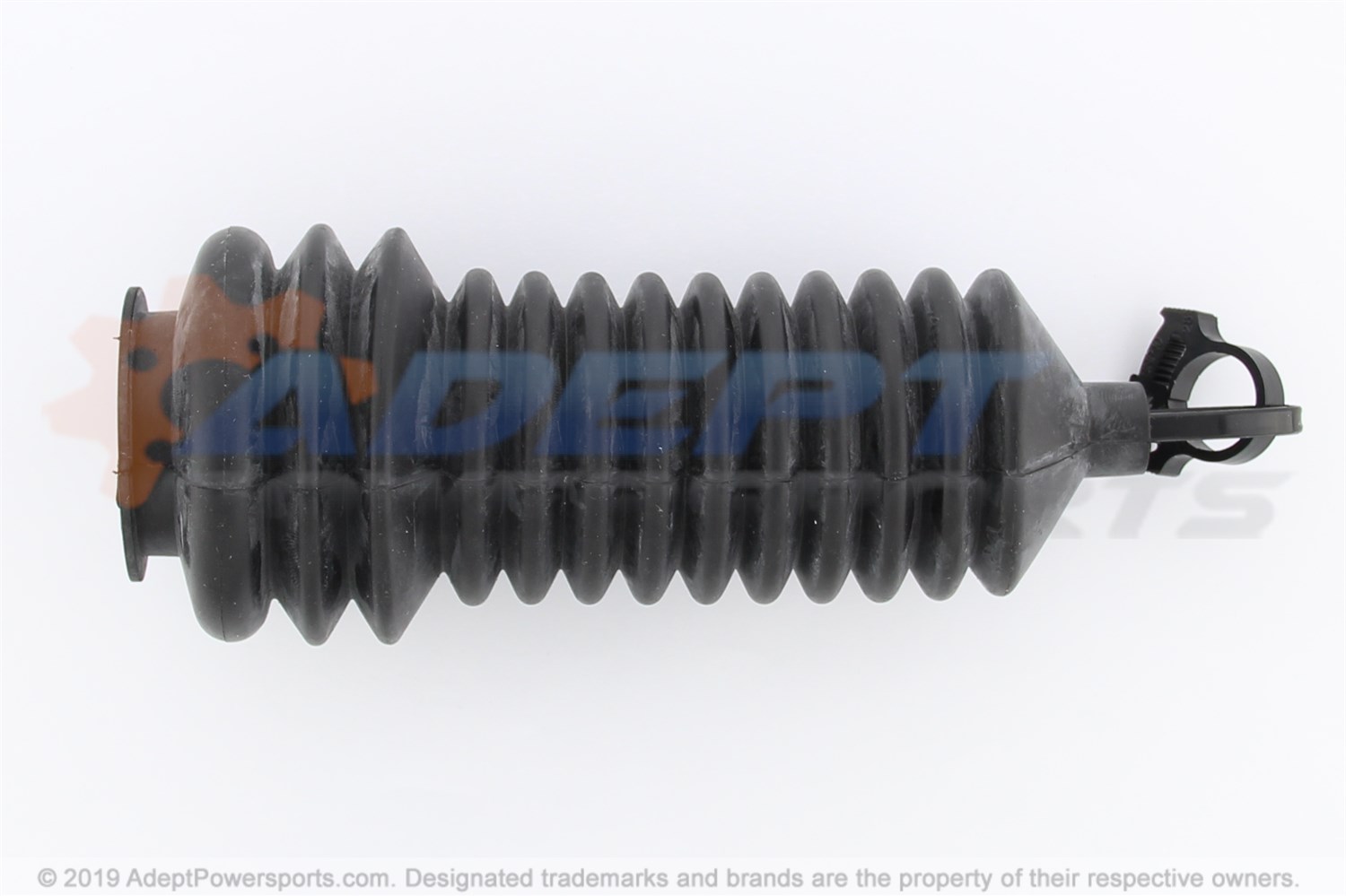

30	LH BOOT KIT Part #: 715900077 Required per assembly: 1 Currently Not Available
31	RH BOOT KIT Part #: 715900078 Required per assembly: 1 Currently Not Available
32	HEX. FLANGED SCEW M8 X 95 Part #: 207689534 Required per assembly: 3 Currently Not Available
33	HEX. FLANGED ELASTIC NUT M8. MODEL-XT Part #: 233281414 Required per assembly: 5 Currently Not Available
34	HEX. FLANGED SCREW M8 X 20 Part #: 207682044 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
35	CLUSTER SUPPORT. PACKAGE DPS Part #: 709400760 Required per assembly: 1 Currently Not Available
36	SPEEDOMETER COVER Part #: 709400514 Required per assembly: 1 Currently Not Available
37	LATCH INDICATOR COVER Part #: 709400573 Required per assembly: 1 Currently Not Available
38	TORX SCREW TRUSS HEAD PT.K50 X 20 Part #: 250000760 Required per assembly: 2 Currently Not Available
39	TORX TRUSS SCREW M6 X 20 Part #: 250000350 Required per assembly: 2 Note: Sold in multiples of 5 only Currently Not Available
40	HEX. FLANGED ELASTIC NUT M6 Part #: 233261414 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
41	CLUSTER COVER. X, XT Part #: 707900012 Required per assembly: 1 Currently Not Available
42	CLUSTER SUPPORT. PACKAGE XXC, XMR Part #: 707900013 Required per assembly: 1 Currently Not Available
43	PANEL NUT, M6 X 1.0 Part #: 250000957 Required per assembly: 2 $39.91 $36.15 - + Add to cart
44	TORX SCREW Part #: 250000721 Required per assembly: 2 Currently Not Available
