Cylinder Head replacement parts for 2011 Honda PCX125

OEM Parts Honda 2011 Honda PCX125 Cylinder Head

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CYLINDER HEAD ASSEMBLY Part #: 12010-KWN-900 Required per assembly: 1 $139.06 $130.94 - + Add to cart
002	GUIDE, VALVE, (OVER, SIZE) Part #: 12204-KWN-P00 Required per assembly: 2 $10.87 $9.72 - + Add to cart
003	GASKET, CYLINDER, HEAD Part #: 12251-KWN-901 Required per assembly: 1 $4.54 - + Add to cart
003	GASKET, CYLINDER, HEAD, (OVER, SIZE) Part #: 12252-KWN-900 $100.21 $81.93 - + Add to cart
004	NUT, SQUARE, (5MM) Part #: 16222-MV4-300 Required per assembly: 2 $3.11 $2.90 - + Add to cart
005	PIPE, INLET Part #: 17110-KWN-670 Required per assembly: 1 $93.78 $74.79 - + Add to cart
006	INSULATOR, THROTTLE, BODY Part #: 17112-KWN-900 Required per assembly: 1 $73.89 $58.93 - + Add to cart
007	INSULATOR, IN., PIPE Part #: 17119-KWN-900 Required per assembly: 1 $4.16 - + Add to cart
008	BAND, INSULATOR Part #: 17255-KWN-900 Required per assembly: 1 $2.81 $2.61 - + Add to cart
009	SPARK PLUG (CPR7EA-9) (NGK) Part #: 31917-KPH-901 Required per assembly: 1 $5.28 $5.10 - + Add to cart
010	STAY, ENGINE, HARNESS Part #: 32962-KWN-900 Required per assembly: 1 $1.94 $1.78 - + Add to cart
011	SENSOR, OXYGEN Part #: 36532-KWN-901 Required per assembly: 1 $87.40 $69.70 - + Add to cart
012	WIRE, OXYGEN, SENSOR Part #: 36533-KWN-901 Required per assembly: 1 $31.86 $28.46 - + Add to cart

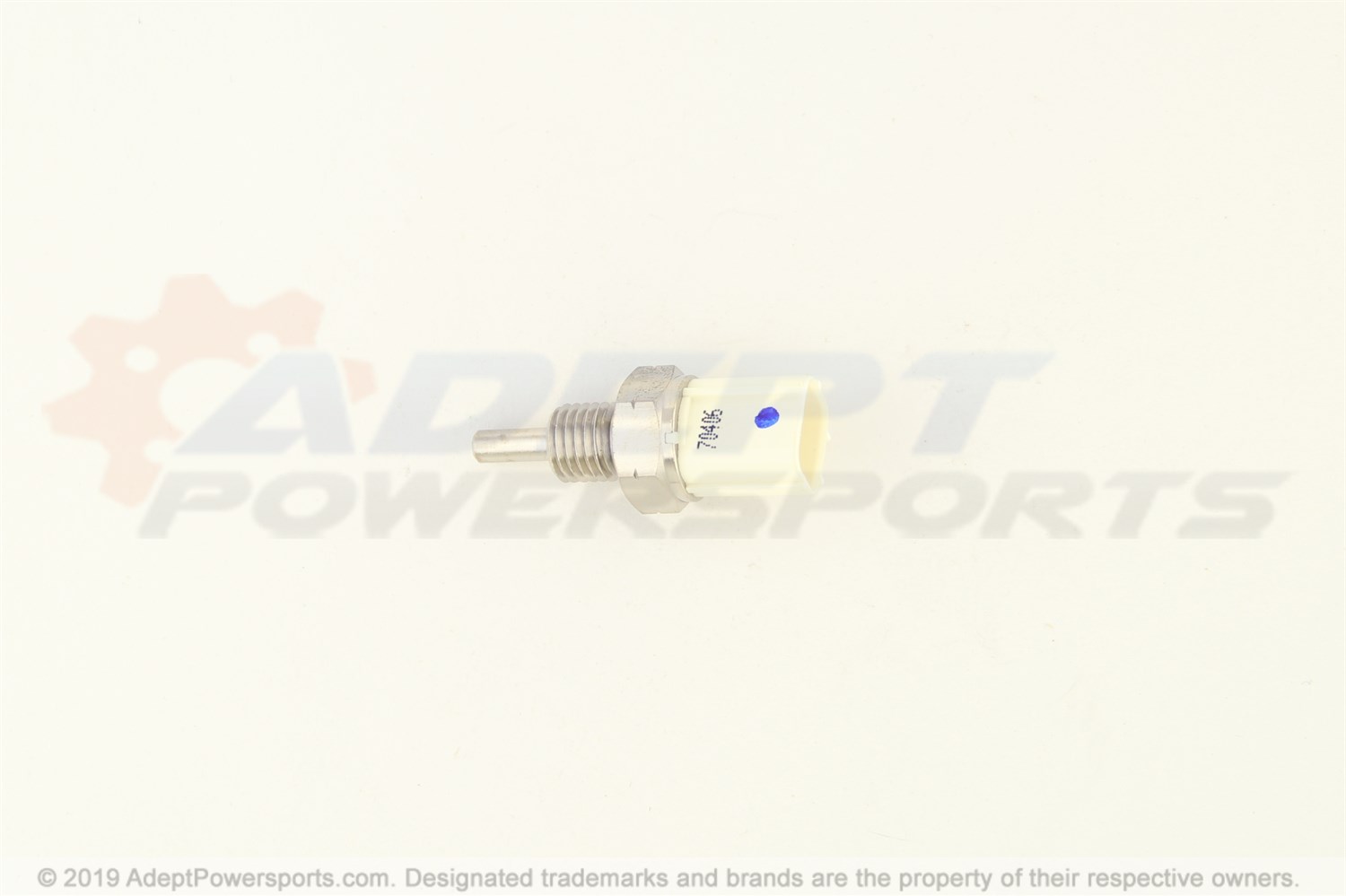

013	SENSOR, ASSEMBLY, WATER, TEMPERATURE Part #: 37870-HW1-671 Required per assembly: 1 $27.05 $22.55 - + Add to cart
014	BOLT, RECESSED, (5X22) Part #: 90005-MEJ-000 Required per assembly: 2 $1.88 $1.74 - + Add to cart
015	WASHER (8MM) Part #: 90483-KWN-900 Required per assembly: 4 $1.50 $1.38 - + Add to cart
016	O-RING (29X2) Part #: 91301-KRJ-901 Required per assembly: 2 $3.51 - + Add to cart
017	O-RING (9.5X1.5) (HONDA KIKAKI) Part #: 91307-PK2-005 Required per assembly: 1 $3.59 $3.26 - + Add to cart
018	BOLT, STUD, (8X20) Part #: 90035-KWN-900 Required per assembly: 2 $1.61 $1.48 - + Add to cart
019	BOLT-WASHER (6X12) Part #: 93404-06012-00 Required per assembly: 1 $2.63 $2.44 - + Add to cart
020	NUT, HEX., (8MM) Part #: 94030-08280 Required per assembly: 4 $1.91 $1.77 - + Add to cart
021	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 2 $3.50 $3.18 - + Add to cart
022	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 1 $2.63 $2.44 - + Add to cart
023	BOLT, FLANGE, (6X35) Part #: 95701-06035-00 Required per assembly: 2 $2.87 $2.67 - + Add to cart
024	BOLT, FLANGE, (6X95) Part #: 95701-06095-00 Required per assembly: 2 $2.99 $2.78 - + Add to cart
