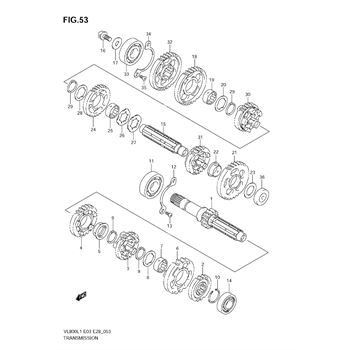

2011 Suzuki VL800 C50 - Transmission

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SHAFT, COUNTER

Part #: 24120-41F00 Required per assembly: 1
Not Available
3

GEAR, 3RD, DRIVE, (NT:22)

Part #: 24231-41F00 Required per assembly: 1
Not Available
4

GEAR, 4TH, DRIVE, (NT:25)

Part #: 24241-41F00 Required per assembly: 1
Not Available
5

BUSH, 4TH

Part #: 24322-19F00 Required per assembly: 1 Note: BUSH;
$25.70
$23.13
-
+
Add to cart
6

GEAR, 5TH, DRIVE, (NT:27)

Part #: 24251-41F00 Required per assembly: 1
Not Available
7

BUSH, 5TH, DRIVE

Part #: 24252-38A10 Required per assembly: 1 Note: BUSH, 5TH;
Not Available
8

LOCK WASHER

Part #: 09167-25016 Required per assembly: 1
$3.91
$3.52
-
+
Add to cart
9

CIRCLIP

Part #: 09380-25003 Required per assembly: 2
$3.89
$3.50
-
+
Add to cart
10

CIRCLIP

Part #: 09380-25014 Required per assembly: 1
Not Available
11

BEARING, RH

Part #: 09262-25080 Required per assembly: 1 Note: BEARING, RH (25x62x17);
$40.72
$36.65
-
+
Add to cart
12

RETAINER

Part #: 24741-38A00 Required per assembly: 1
Not Available
13

SCREW (6X12)

Part #: 09125-06110 Required per assembly: 2
$3.38
$3.04
-
+
Add to cart
14

BEARING, CENTER, SHAFT, LH

Part #: 09262-20139 Required per assembly: 1 Note: BEARING, DRIVE SHAFT, LH; 20X47X14.0
$47.22
$40.37
-
+
Add to cart
15

DRIVESHAFT

Part #: 24131-38A03 Required per assembly: 1 Note: DRIVE SHAFT;
Not Available
16

NOZZLE

Part #: 24135-38A02 Required per assembly: 1
$9.91
$8.92
-
+
Add to cart
17

WASHER

Part #: 08211-10305 Required per assembly: 1 Note: WASHER, OIL PUMP DRIVE GEAR;
$4.47
$4.02
-
+
Add to cart
18

GEAR, 1ST, DRIVEN, (NT:32)

Part #: 24311-41F00 Required per assembly: 1
Not Available
19

BUSH

Part #: 24332-07A00 Required per assembly: 1
Not Available
20

WASHER

Part #: 09167-28001 Required per assembly: 1 Note: WASHER (28.1x38x1.0);
$4.83
$4.35
-
+
Add to cart
21

GEAR, 2ND, DRIVEN, (NT:31)

Part #: 24321-41F00 Required per assembly: 1
Not Available
22

BUSH

Part #: 09301-22002 Required per assembly: 1
Not Available
23

WASHER, 1ST, RH, (20X34X1.0)

Part #: 09181-20251 Required per assembly: 1 Note: WASHER, SUB T/M SHIFT; 20X34X1.0
$3.36
$3.02
-
+
Add to cart
24

GEAR, 3RD, DRIVEN, (NT:27)

Part #: 24331-41F00 Required per assembly: 1
Not Available
25

BUSH

Part #: 24332-07A00 Required per assembly: 1
Not Available
26

LOCK, WASHER, RH

Part #: 09169-28001 Required per assembly: 1
$4.04
$3.64
-
+
Add to cart
27

LOCK, WASHER, RH

Part #: 09167-28002 Required per assembly: 1 Note: LOCK WASHER, LH;
$5.01
$4.51
-
+
Add to cart
28

WASHER

Part #: 09167-28001 Required per assembly: 1 Note: WASHER (28.1x38x1.0);
$4.83
$4.35
-
+
Add to cart
29

CIRCLIP

Part #: 08331-31289 Required per assembly: 2
$2.58
$2.32
-
+
Add to cart
30

GEAR, 4TH, DRIVEN, (NT:25)

Part #: 24341-41F00 Required per assembly: 1
Not Available
33

BEARING

Part #: 09262-20073 Required per assembly: 1 Note: BEARING, SUB T/M, LH; 20X52X15.0
$28.35
$24.24
-
+
Add to cart
35

SCREW (6X12)

Part #: 09126-06011 Required per assembly: 2 Note: SCREW, RETAINER LH;
$2.45
$2.21
-
+
Add to cart
36

BEARING, LH

Part #: 09262-20080 Required per assembly: 1 Note: BEARING, LH (20x52x15);
$40.72
$34.80
-
+
Add to cart
