Crankshaft Piston replacement parts for 2011 Yamaha Grizzly 350 IRS 4WD (YFM35FGIAL)

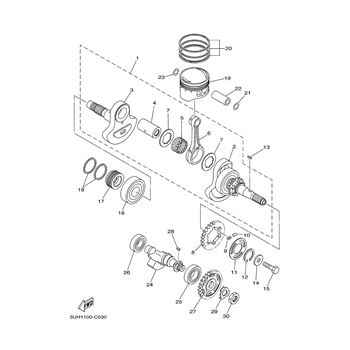

OEM Parts Yamaha 2011 Yamaha Grizzly 350 IRS 4WD (YFM35FGIAL) Crankshaft Piston

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKSHAFT ASSEMBLY Part #: 5UH-11400-00-00 Required per assembly: 1 ~~$651.99~~ $596.08 - + Add to cart
2	CRANK SUB ASSEMBLY 1 Part #: 5UH-11401-09-00 Required per assembly: 1 $273.39 - + Add to cart
3	CRANK SUB ASSEMBLY 2 Part #: 5UH-W1142-00-00 Required per assembly: 1 ~~$230.99~~ $228.16 - + Add to cart
4	PIN, CRANK, 1 Part #: 30X-11681-00-00 Required per assembly: 1 ~~$69.98~~ $55.29 - + Add to cart
5	BEARING Part #: 93310-633P5-00 Required per assembly: 1 ~~$65.98~~ $53.56 - + Add to cart
6	ROD, CONNECTING Part #: 5UH-11651-00-00 Required per assembly: 1 ~~$89.98~~ $75.07 - + Add to cart
7	WASHER, SPEC'L, SHAPE Part #: 90209-33253-00 Required per assembly: 2 ~~$18.48~~ $13.35 - + Add to cart
8	GEAR, DRIVE Part #: 5UH-11536-00-00 Required per assembly: 1 ~~$97.98~~ $84.35 - + Add to cart
9	SPRING, COMPRESSION Part #: 90501-22721-00 Required per assembly: 6 ~~$10.49~~ $7.88 - + Add to cart
10	PIN, DOWEL Part #: 93605-10090-00 Required per assembly: 3 ~~$8.49~~ $5.46 - + Add to cart
11	WASHER, BEARING, COVER Part #: 5UH-11565-00-00 Required per assembly: 1 ~~$6.49~~ $5.13 - + Add to cart
12	CIRCLIP, S-TYPE Part #: 93410-32075-00 Required per assembly: 1 Note: Sold in multiples of 10 only ~~$10.49~~ $6.85 - + Add to cart
13	KEY, WOODRUFF Part #: 90280-05001-00 Required per assembly: 1 ~~$13.49~~ $11.58 - + Add to cart
14	WASHER, PLATE Part #: 90201-10038-00 Required per assembly: 1 ~~$6.49~~ $5.03 - + Add to cart
15	BOLT Part #: 90101-10017-00 Required per assembly: 1 ~~$5.49~~ $3.34 - + Add to cart
16	BRG, R-B, 6306, 72MM, 351G, KY Part #: 93306-30615-00 Required per assembly: 1 ~~$90.98~~ $74.74 - + Add to cart
17	SPACER 1 Part #: 5UH-16181-00-00 Required per assembly: 1 ~~$47.99~~ $41.93 - + Add to cart
18	SEAL, CRANK Part #: 5KM-11447-00-00 Required per assembly: 2 Note: (USA) ~~$42.99~~ $34.16 - + Add to cart
19	PISTON (100MM O/S) Part #: 5UH-11638-00-00 Required per assembly: 1 Note: AP ~~$118.98~~ $99.67 - + Add to cart
19	PISTON (STD) Part #: 5UH-11631-00-C0 Required per assembly: 1 ~~$106.98~~ $92.99 - + Add to cart
19	PISTON (050MM O/S) Part #: 5UH-11636-00-00 Required per assembly: 1 Note: AP ~~$106.98~~ $92.99 - + Add to cart
20	PISTON RING SET (STD) Part #: 4GB-11610-00-00 Required per assembly: 1 ~~$73.98~~ $58.14 - + Add to cart
20	PISTON RING SET (050MM O/S) Part #: 4GB-11610-20-00 Required per assembly: 1 Note: AP ~~$66.98~~ $55.61 - + Add to cart
20	PISTON RING SET (100MM O/S) Part #: 4GB-11610-40-00 Required per assembly: 1 Note: AP ~~$61.99~~ $42.94 - + Add to cart
21	CIRCLIP, INNER Part #: 93450-19095-00 Required per assembly: 1 ~~$2.66~~ $2.06 - + Add to cart
22	PIN, PISTON Part #: 55V-11633-00-00 Required per assembly: 1 ~~$43.99~~ $33.07 - + Add to cart
23	CIRCLIP, INNER Part #: 93450-19095-00 Required per assembly: 1 ~~$2.66~~ $2.06 - + Add to cart
24	WEIGHT 1 Part #: 5UH-11454-01-00 Required per assembly: 1 ~~$74.98~~ $62.51 - + Add to cart
25	BEARING (2HR) Part #: 93306-00612-00 Required per assembly: 1 ~~$51.99~~ $42.99 - + Add to cart
26	BEARING Part #: 93306-20458-00 Required per assembly: 1 ~~$47.99~~ $36.56 - + Add to cart
27	GEAR, BALANCE, WEIGHT Part #: 5UH-11531-00-00 Required per assembly: 1 ~~$93.98~~ $85.16 - + Add to cart
28	KEY, STRAIGHT, (34K) Part #: 90282-05065-00 Required per assembly: 1 ~~$9.49~~ $7.35 - + Add to cart
29	WASHER, LOCK Part #: 90215-16258-00 Required per assembly: 1 ~~$11.49~~ $7.80 - + Add to cart
30	NUT, HEXAGON, (30X) Part #: 90170-16326-00 Required per assembly: 1 ~~$14.49~~ $10.81 - + Add to cart
