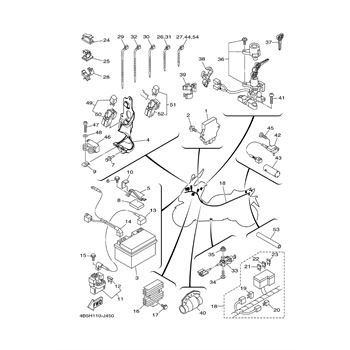

Electrical 1 replacement parts for 2011 Yamaha XP500AB

OEM Parts Yamaha 2011 Yamaha XP500AB Electrical 1

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ENGINE CONTROL UNIT ASSEMBLY Part #: 4B5-8591A-30-00 Required per assembly: 1 Not Available
2	BOLT, FLANGE Part #: 95817-06020-00 Required per assembly: 2 $3.50 $2.65 - + Add to cart
3	YTZ10S YUASA BATTER (YUASA YTZ10S) Part #: YTZ-10S00-00-00 Required per assembly: 1 $242.92 - + Add to cart
4	BRACKET, RELAY, 1 Part #: 4B5-2143E-00-00 Required per assembly: 1 $24.98 $20.70 - + Add to cart
5	BRACKET, BATTERY Part #: 4B5-2199G-00-00 Required per assembly: 1 $13.49 $11.19 - + Add to cart
6	BOLT, FLANGE Part #: 95817-06010-00 Required per assembly: 1 $5.49 $3.84 - + Add to cart
7	RIVET Part #: 90269-06081-00 Required per assembly: 3 $8.49 $5.59 - + Add to cart
8	MOLD, FOOTREST Part #: 5SJ-27482-00-00 Required per assembly: 1 $2.00 $1.68 - + Add to cart
9	NUT, SPRING Part #: 90183-04039-00 Required per assembly: 2 $8.49 $5.79 - + Add to cart
10	DAMPER Part #: 5H0-8235Y-M0-00 Required per assembly: 1 Note: Sold in multiples of 5 only $7.49 $6.35 - + Add to cart
11	STARTER RELAY ASSEMBLY Part #: 4B5-81940-00-00 Required per assembly: 1 $125.98 $105.93 - + Add to cart
12	FUSE (30A-BL) Part #: 1AE-82151-00-00 Required per assembly: 2 $8.49 $6.11 - + Add to cart
13	WIRE, PLUS, LEAD Part #: 4B5-82115-00-00 Required per assembly: 1 $37.99 $32.66 - + Add to cart
14	WIRE, MINUS, LEAD Part #: 4B5-82116-00-00 Required per assembly: 1 $42.99 $37.18 - + Add to cart
15	BOLT, FLANGE Part #: 95022-06008-00 Required per assembly: 2 $9.49 $6.15 - + Add to cart
16	RECTIFIER & REGULATOR ASSEMBLY Part #: 4XY-81960-00-00 Required per assembly: 1 $194.99 $166.89 - + Add to cart
17	BOLT, FLANGE Part #: 95817-06020-00 Required per assembly: 2 $3.50 $2.65 - + Add to cart
18	WIRE HARNESS ASSEMBLY Part #: 4B5-82590-31-00 Required per assembly: 1 $650.89 $597.72 - + Add to cart
19	DIODE ASSEMBLY Part #: 4WA-81980-00-00 Required per assembly: 1 $32.99 $25.51 - + Add to cart
20	DIODE ASSEMBLY Part #: 3WP-81980-00-00 Required per assembly: 1 $24.98 $18.52 - + Add to cart
21	FUSE (15A) Part #: 67F-82151-50-00 Required per assembly: 3 Note: (15A) (15A) $4.04 $3.78 - + Add to cart
22	FUSE (20A-BL) Part #: 5JJ-82151-20-00 Required per assembly: 2 $8.49 $6.29 - + Add to cart
23	FUSE (10A) Part #: 67F-82151-40-00 Required per assembly: 5 Note: (10A) $7.09 $6.65 - + Add to cart
24	CLAMP Part #: 90464-13011-00 Required per assembly: 4 $4.09 $3.40 - + Add to cart
25	CLAMP Part #: 90464-13185-00 Required per assembly: 2 $6.49 $3.64 - + Add to cart
26	CLAMP (4FM) Part #: 90464-15195-00 Required per assembly: 1 $4.41 $2.72 - + Add to cart
27	CLAMP Part #: 90464-13077-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
28	CLAMP Part #: 90464-15192-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
29	CLAMP, HOSE Part #: 90460-15126-00 Required per assembly: 1 Note: (USA) $8.49 $5.53 - + Add to cart
30	CLAMP (4FM) Part #: 90464-15195-00 Required per assembly: 2 $4.41 $2.72 - + Add to cart
31	CLAMP (4FM) Part #: 90464-15195-00 Required per assembly: 1 $4.41 $2.72 - + Add to cart
32	BAND, SWITCH, CORD Part #: 25G-83936-01-00 Required per assembly: 1 $5.49 $4.05 - + Add to cart
33	SWITCH, SIDE, STAND Part #: 4B5-82566-00-00 Required per assembly: 1 $60.99 $52.65 - + Add to cart
34	BOLT, BUTTON, HEAD Part #: 92012-05020-00 Required per assembly: 2 $1.39 $1.15 - + Add to cart
35	NUT, S/L, FLANGE Part #: 95607-05200-00 Required per assembly: 2 $10.49 $6.73 - + Add to cart
36	MAIN SWITCH STEERING LOCK Part #: 4B5-82501-31-00 Required per assembly: 1 $227.99 $213.43 - + Add to cart
37	BLANK KEY Part #: 4BH-82511-09-00 Required per assembly: 1 Note: AP $33.99 $24.01 - + Add to cart
38	CLAMP Part #: 90464-18246-00 Required per assembly: 1 $2.43 $1.62 - + Add to cart
39	CLAMP Part #: 90464-16006-00 Required per assembly: 1 $10.49 $8.24 - + Add to cart
40	COVER Part #: 5RU-8252U-00-00 Required per assembly: 1 $13.49 $11.36 - + Add to cart
41	SCREW Part #: 90149-08036-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
42	SWITCH ASSEMBLY Part #: 4B5-81860-00-00 Required per assembly: 1 $36.99 $31.56 - + Add to cart
43	COVER, CONNECTER Part #: 4B5-82599-00-00 Required per assembly: 1 $6.49 $5.53 - + Add to cart
44	CLAMP Part #: 90464-13077-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
46	SENSOR, LEAN, ANGLE Part #: 5VU-82576-02-00 Required per assembly: 1 $121.98 $110.06 - + Add to cart
47	BOLT, HEXAGON, SOCKET, HEAD Part #: 91312-04025-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
48	WASHER, PLATE Part #: 90201-04027-00 Required per assembly: 2 $2.45 $1.84 - + Add to cart
49	RELAY ASSEMBLY Part #: 5EA-81950-20-00 Required per assembly: 3 $62.99 $49.96 - + Add to cart
50	HOLDER, RELAY Part #: 5EA-81952-00-00 Required per assembly: 1 $8.49 $6.67 - + Add to cart
51	RELAY ASSEMBLY Part #: 5JJ-81950-20-00 Required per assembly: 1 $63.99 $48.49 - + Add to cart
52	HOLDER, RELAY Part #: 5JJ-81952-00-00 Required per assembly: 1 $10.99 $7.80 - + Add to cart
53	HOSE (4CS) Part #: 90446-15381-00 Required per assembly: 1 $2.25 $1.87 - + Add to cart
54	CLAMP Part #: 90464-13077-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
