Transaxle & Brake replacement parts for 2011 Yamaha YTF1X JW63

OEM Parts Yamaha 2011 Yamaha YTF1X JW63 Transaxle & Brake

TRANSAXLE & BRAKE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TRANSAXLE ASSEMBLY Part #: JW1-G6300-02-00 Required per assembly: 1 Not Available
2	PLUG, DRAIN, 1 Part #: JW1-G6168-00-00 Required per assembly: 2 Not Available
3	BALL Part #: JW1-F4684-00-00 Required per assembly: 6 $3.99 $3.27 - + Add to cart
4	BUSHING Part #: JW1-G4132-00-00 Required per assembly: 1 Not Available
5	BOLT, 2 Part #: JW1-G4582-00-00 Required per assembly: 15 Not Available
6	SCREW Part #: JW1-G4189-00-00 Required per assembly: 3 Not Available
7	BOLT 2 Part #: JW1-G6158-00-00 Required per assembly: 4 Not Available
8	WASHER Part #: JW1-G4188-00-00 Required per assembly: 2 Not Available
9	WASHER Part #: JW1-G5677-00-00 Required per assembly: 1 Not Available
10	WASHER, 1 Part #: JW1-G5618-00-00 Required per assembly: 1 Not Available
11	RING, HOLDOUT Part #: JW1-G6443-00-00 Required per assembly: 1 Not Available
12	SHIM, RING, GEAR Part #: JW1-G6117-00-00 Required per assembly: 1 Note: UN Not Available
13	BEARING 1 Part #: JW1-G6164-00-00 Required per assembly: 2 Not Available
14	BEARING 2 Part #: JW1-G6165-00-00 Required per assembly: 2 Not Available
15	SPRING Part #: JW1-G4135-00-00 Required per assembly: 3 Not Available
16	REAR AXLE HOUSING Part #: JW1-G6540-02-00 Required per assembly: 1 Not Available
17	REAR AXLE HOUSING Part #: JW1-G6540-02-00 Required per assembly: 1 Not Available
18	RING GEAR ASSEMBLY Part #: JW1-G6110-00-00 Required per assembly: 1 Not Available
19	BALL, SEAT Part #: JW1-F384K-00-00 Required per assembly: 1 Not Available
20	HDL.GEAR SHFT ASSEMBLY Part #: JW1-G4120-00-00 Required per assembly: 1 Not Available
21	INPUT SHAFT ASSEMBLY Part #: JW1-G6320-00-00 Required per assembly: 1 Not Available
22	SHAFT 2 Part #: JW1-G6348-00-00 Required per assembly: 1 Not Available
23	GEAR, IDLER Part #: JW1-G6356-00-00 Required per assembly: 1 Not Available
24	GEAR, WHEEL, 3 Part #: JW1-G6328-00-00 Required per assembly: 1 Not Available
25	GEAR, RING, 2 Part #: JW1-G6131-00-00 Required per assembly: 1 Not Available
26	GEAR, COUNTER, 1 Part #: JW1-G6361-00-00 Required per assembly: 1 Not Available
27	GEAR, COUNTER, 2 Part #: JW1-G6362-00-00 Required per assembly: 1 Not Available
28	REAR AXLE SHAFT 1 ( RH ) Part #: JW1-G6510-01-00 Required per assembly: 1 Not Available
29	REAR AXLE SHAFT 2 ( LH ) Part #: JW1-G6520-01-00 Required per assembly: 1 Not Available
30	PLATE 1 Part #: JW1-G6336-00-00 Required per assembly: 5 Not Available
31	PLATE, COVER Part #: JW1-G6114-00-00 Required per assembly: 1 Not Available
32	PLATE Part #: JW1-G4526-00-00 Required per assembly: 1 Not Available
33	BRACKET 1 Part #: JW1-G6554-00-00 Required per assembly: 1 Not Available
34	DISC, FRICTION Part #: JW1-G6345-00-00 Required per assembly: 1 Not Available
35	PLATE 2 Part #: JW1-G633H-00-00 Required per assembly: 5 Not Available
36	SHIM Part #: JW1-G6344-00-00 Required per assembly: 1 Note: UN Not Available
37	RING Part #: JW1-G6854-00-00 Required per assembly: 1 Not Available
38	HOSE Part #: JW1-G6894-00-00 Required per assembly: 1 Not Available
39	DIFFERENTIAL ASSEMBLY Part #: JW1-G6410-20-00 Required per assembly: 1 Not Available
40	SCREW, DETENT Part #: JW1-G4165-00-00 Required per assembly: 2 Not Available
41	BRACKET 1 Part #: JW1-G1661-00-00 Required per assembly: 1 Not Available
42	HUB KIT Part #: JW1-F53T0-09-00 Required per assembly: 2 Not Available
43	SPACER, BEARING Part #: JW1-G6128-01-00 Required per assembly: 2 Not Available
44	NUT Part #: JW1-G4583-10-00 Required per assembly: 2 $6.99 $4.87 - + Add to cart
45	WASHER Part #: JW1-G2376-00-00 Required per assembly: 2 Not Available
46	PIN, COTTER Part #: JW1-G633J-00-00 Required per assembly: 2 Not Available
47	RING, SNAP Part #: JW1-G4156-00-00 Required per assembly: 2 Not Available

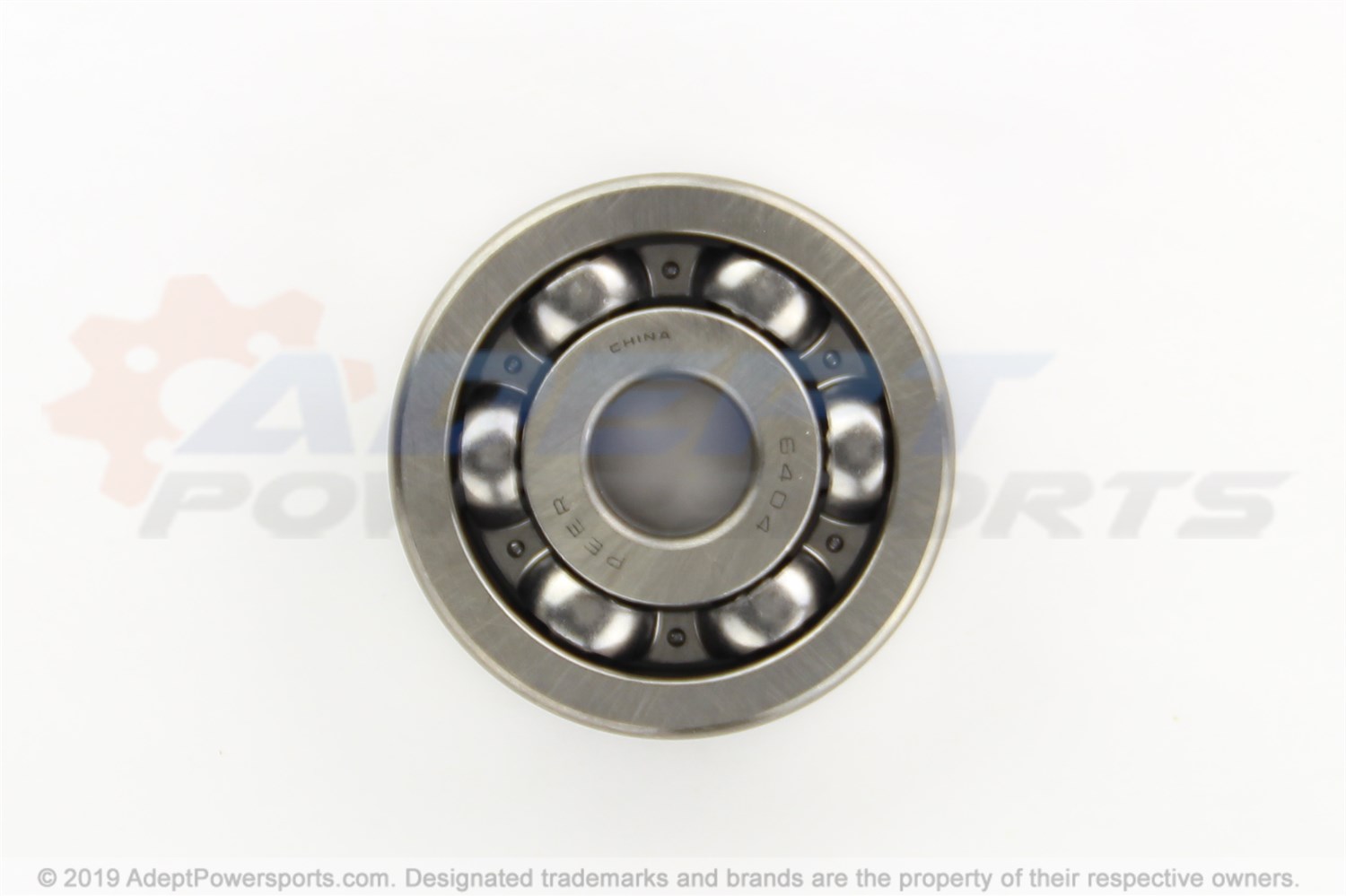

48	BEARING Part #: JW1-F2176-00-00 Required per assembly: 2 $29.98 $24.18 - + Add to cart
49	RING, SEAL Part #: JW1-G5874-00-00 Required per assembly: 2 Not Available
50	COVER, HUB, DUST Part #: JN6-F5118-01-00 Required per assembly: 2 $4.29 $3.78 - + Add to cart
