Cylinder Head And Valve replacement parts for 2012 Can Am DS250

OEM Parts Can Am 2012 Can Am DS250 Cylinder Head And Valve

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CYLINDER HEAD ASSEMBLY Part #: S12200RB1000 Required per assembly: 1 Currently Not Available
2	VALVE STEM SEAL CAP Part #: S12209H6B900M2 Required per assembly: 4 Currently Not Available
3	CAM SHAFT Part #: S14100RB1000 Required per assembly: 1 Currently Not Available
5	INTAKE VALVE ROCKER ARM ASSEMBLY. INTERNATIONAL Part #: S1443ARFA000 Required per assembly: 1 Currently Not Available
5	INTAKE VALVE ROCKER ARM Part #: S14431RB1000 Required per assembly: 1 Currently Not Available
7	EXHAUST VALVE ROCKER ARM ASSEMBLY. INTERNATIONAL Part #: S1444ARFA000 Required per assembly: 1 Currently Not Available
7	EXHAUST VALVE ROCKER ARM ASSEMBLY Part #: S1444ARB1000 Required per assembly: 1 Currently Not Available
8	ROCKER ARM SHAFT Part #: S14451HMA000 Required per assembly: 2 Currently Not Available
9	CAM SHAFT SETTING PLATE Part #: S14457HMA000 Required per assembly: 1 Currently Not Available
10	INTAKE VALVE Part #: S14711HMA000 Required per assembly: 2 Currently Not Available
11	EXHAUST VALVE Part #: S14721RFS000 Required per assembly: 2 Currently Not Available
12	VALVE OUTER SPRING Part #: S14751HMA000 Required per assembly: 4 Currently Not Available
13	VALVE INNER SPRING Part #: S14761HMA000 Required per assembly: 4 Currently Not Available
14	VALVE SPRING RETAINER Part #: S14771M8Q000 Required per assembly: 4 Currently Not Available
15	VALVE SPRING SEAT Part #: S14777KN7670 Required per assembly: 4 Currently Not Available
16	VALVE COTTER Part #: S14781M9Q000 Required per assembly: 8 Currently Not Available
17	TEMPERATURE SENSOR Part #: S37750PC1004 Required per assembly: 1 Currently Not Available
18	AIR PIPE ASSEMBLY Part #: S18647RB1000 Required per assembly: 1 Currently Not Available

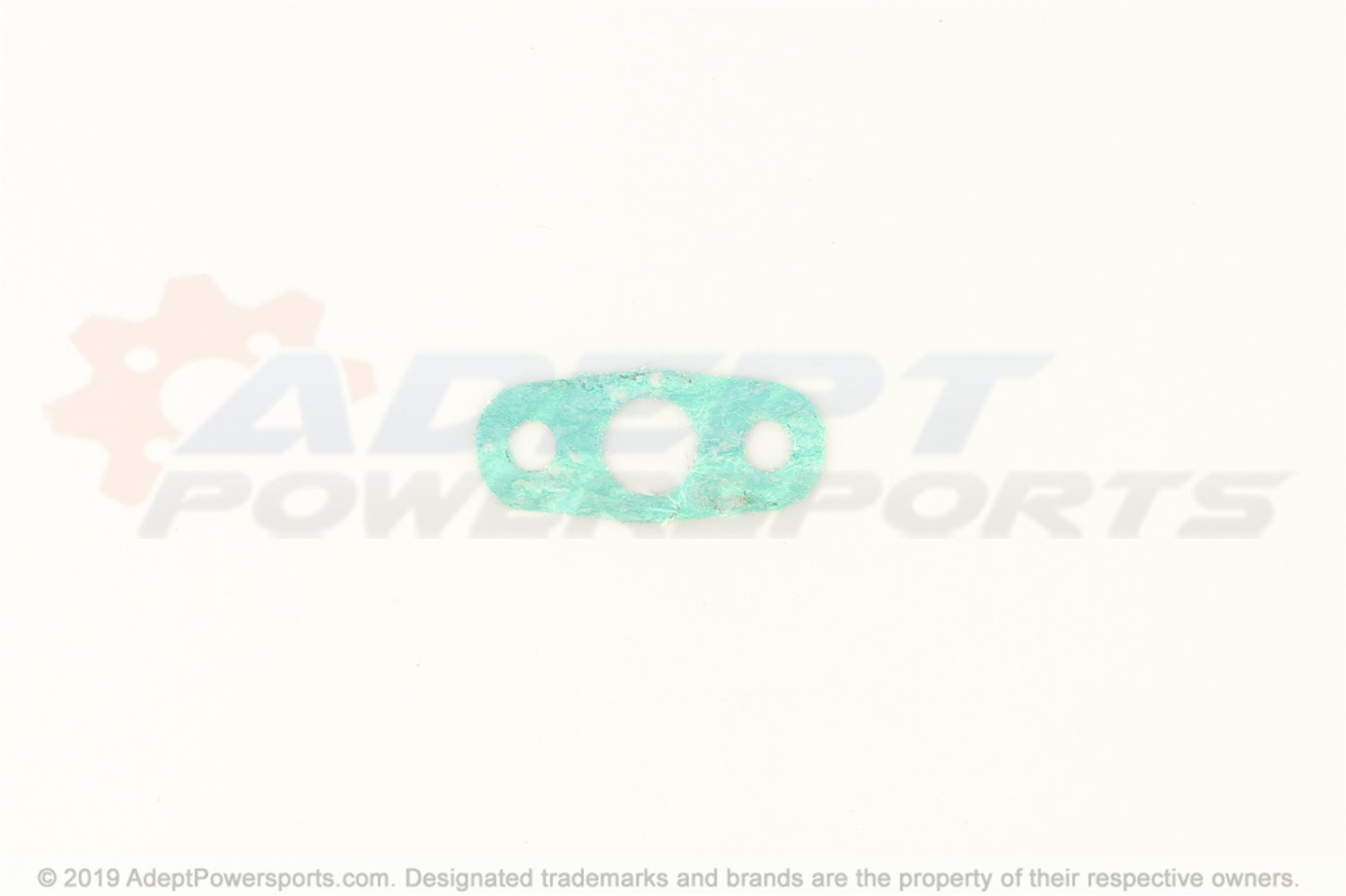

19	AIR PIPE GASKET Part #: S18654N14000 Required per assembly: 2 Currently Not Available
20	THERMOSTAT Part #: S19300HMA000 Required per assembly: 1 Currently Not Available
21	THERMOSTAT COVER Part #: S19315KJ9000 Required per assembly: 1 Currently Not Available
24	SEALING WASHER 10.5 MM Part #: S90442HMA000 Required per assembly: 4 Currently Not Available
25	FLANGED NUT 10 MM Part #: S9405010080 Required per assembly: 4 Currently Not Available
26	FLANGED BOLT M6 X 14 Part #: S960010601408 Required per assembly: 1 Currently Not Available
27	FLANGED BOLT M6 X 16 Part #: S960010601600 Required per assembly: 6 Currently Not Available
28	FLANGED BOLT M6 X 90 Part #: S960010609000 Required per assembly: 2 Currently Not Available
29	SPARK PLUG - NGK CR8E Part #: 219703176 Required per assembly: 1 Note: Sold in multiples of 4 only Currently Not Available
30	INNER PIPE Part #: S1711ARCA000 Required per assembly: 1 Currently Not Available
31	O-RING Part #: S91308HMA000 Required per assembly: 1 Currently Not Available
32	FLANGED BOLT M6 X 22 Part #: S960010602500 Required per assembly: 2 Currently Not Available
