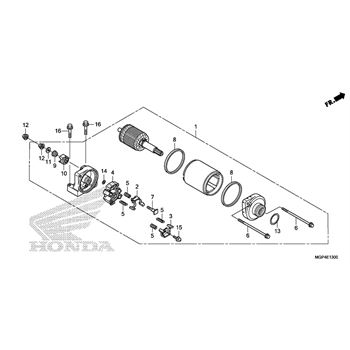

Starter Motor replacement parts for 2012 Honda CBR1000RR

OEM Parts Honda 2012 Honda CBR1000RR Starter Motor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	STARTER MOTOR ASSEMBLY Part #: 31200-MFL-003 Required per assembly: 1 $484.39 $403.90 - + Add to cart
02	BRUSH, SET, A, CARBON Part #: 31201-MEW-921 Required per assembly: 1 $9.34 $8.07 - + Add to cart
03	BRUSH, SET, B, CARBON Part #: 31202-MEW-921 Required per assembly: 1 $15.17 $12.64 - + Add to cart
04	HOLDER, BRUSH Part #: 31203-MEW-921 Required per assembly: 1 $9.01 $7.78 - + Add to cart
05	SPRING, CARBON, BRUSH Part #: 31204-MEW-921 Required per assembly: 4 $15.08 $12.19 - + Add to cart
06	BOLT, SETTING Part #: 31205-MFJ-D01 Required per assembly: 2 $4.26 - + Add to cart
07	BOLT, TERMINAL Part #: 31206-MEW-921 Required per assembly: 1 $3.60 - + Add to cart
08	RING Part #: 31207-HP5-601 Required per assembly: 2 $3.11 $2.90 - + Add to cart
09	INSULATOR Part #: 31208-MEW-921 Required per assembly: 1 $8.36 $7.27 - + Add to cart
10	STOPPER, TERMINAL Part #: 31209-MEW-921 Required per assembly: 1 $12.42 $10.05 - + Add to cart
11	WASHER Part #: 31210-MEW-921 Required per assembly: 1 $2.81 $2.61 - + Add to cart
12	NUT-WASHER (6MM) Part #: 90071-MB0-000 Required per assembly: 2 $3.04 $2.83 - + Add to cart
13	O-RING (24.4X3.1) Part #: 91312-MG7-003 Required per assembly: 1 $7.61 $6.11 - + Add to cart
14	O-RING Part #: 91320-MB0-000 Required per assembly: 1 $3.47 $3.15 - + Add to cart
15	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 1 $2.18 $2.02 - + Add to cart
16	BOLT, FLANGE, (6X28) Part #: 95801-06028-00 Required per assembly: 2 $2.81 $2.61 - + Add to cart
