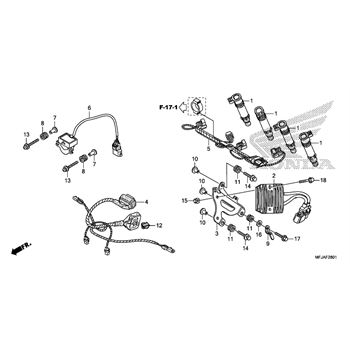

Sub Harness replacement parts for 2012 Honda CBR600RA

OEM Parts Honda 2012 Honda CBR600RA Sub Harness

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	COIL, CAP, &, IGNITION Part #: 30700-MEE-641 Required per assembly: 4 ~~$81.55~~ $65.00 - + Add to cart
02	RECTIFIER, REGULATE Part #: 31600-MFJ-D01 Required per assembly: 1 ~~$457.91~~ $369.48 - + Add to cart
03	STAY Part #: 31605-MFJ-D00 Required per assembly: 1 $13.48 - + Add to cart
04	SUB-HARNESS, FR. Part #: 32102-MFJ-A50 Required per assembly: 1 ~~$85.00~~ $68.77 - + Add to cart
05	SUB-WIRE HARNESS Part #: 32103-MFJ-D00 Required per assembly: 1 ~~$84.54~~ $70.45 - + Add to cart
06	SENSOR, BANK, ANGLE Part #: 35161-MFJ-D02 Required per assembly: 1 ~~$124.38~~ $103.67 - + Add to cart
07	COLLAR Part #: 35162-MFA-D01 Required per assembly: 2 $6.04 - + Add to cart
08	GROMMET Part #: 35163-MN5-003 Required per assembly: 2 $4.65 - + Add to cart
09	CLIP (2X50) Part #: 90105-727-000 Required per assembly: 1 $4.16 - + Add to cart
10	COLLAR, RR., FENDER Part #: 90502-GG2-000 Required per assembly: 3 $7.99 - + Add to cart
11	RUBBER, CONTROL, BOX Part #: 90852-898-000 Required per assembly: 3 $5.38 - + Add to cart
12	CLIP, CONNECTOR Part #: 91533-S04-003 Required per assembly: 1 $5.22 - + Add to cart
13	BOLT-WASHER (4X25) Part #: 93401-04025-08 Required per assembly: 2 ~~$1.73~~ $0.93 - + Add to cart
14	BOLT-WASHER (6X25) Part #: 93404-06025-00 Required per assembly: 2 ~~$2.13~~ $1.52 - + Add to cart
15	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 ~~$1.73~~ $0.91 - + Add to cart
16	WASHER, PLAIN, (6MM) Part #: 94103-06700 Required per assembly: 1 ~~$1.78~~ $1.00 - + Add to cart
17	BOLT, FLANGE, (6X25) Part #: 95701-06025-00 Required per assembly: 1 ~~$2.79~~ $2.67 - + Add to cart
18	BOLT, FLANGE, (6X28) Part #: 96001-06028-00 Required per assembly: 2 $4.03 - + Add to cart
