Rear Brake Panel replacement parts for 2012 Honda RANCHER (TRX420FPM)

OEM Parts Honda 2012 Honda RANCHER (TRX420FPM) Rear Brake Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SHOE, SET, BRAKE Part #: 06430-HN0-A20 Required per assembly: 1 $53.08 $52.32 - + Add to cart
001	SHOE, SET, BRAKE Part #: 06430-HN0-A30 Required per assembly: 1 $67.36 $56.17 - + Add to cart
002	RUB, OVER, HEAD, COVER Part #: 12342-MEG-300 Required per assembly: 2 $2.38 $2.20 - + Add to cart
003	COVER, ASSEMBLY, DRUM Part #: 40520-HP5-600 Required per assembly: 1 $33.91 $27.04 - + Add to cart
004	RING, DAMPER Part #: 42624-HN5-M00 Required per assembly: 1 $3.70 - + Add to cart
005	PANEL, SET, RR., BRAKE Part #: 43010-HP5-600 Required per assembly: 1 $136.67 $109.00 - + Add to cart
006	WASHER, ANCHOR, PIN Part #: 43102-319-000 Required per assembly: 1 $7.46 $6.53 - + Add to cart
007	DUST, SEAL, BRAKE, CAM Part #: 43134-300-000 Required per assembly: 1 $3.17 $2.94 - + Add to cart
008	CAM, RR., BRAKE Part #: 43141-HN5-670 Required per assembly: 1 $39.55 $32.97 - + Add to cart
009	INDICATOR, BRAKE Part #: 43145-HN5-M00 Required per assembly: 1 $2.01 $1.86 - + Add to cart
010	ARM, RR., BRAKE Part #: 43410-HP5-600 Required per assembly: 1 $14.15 $11.28 - + Add to cart
011	SPRING, RR. Part #: 43415-HM7-000 Required per assembly: 1 $8.64 $7.49 - + Add to cart
012	GUARD, BRAKE, PANEL Part #: 43430-HP5-600 Required per assembly: 1 $28.31 - + Add to cart
013	NUT, BRAKE, ADJUSTING Part #: 43459-HM5-A10 Required per assembly: 2 $10.27 $9.68 - + Add to cart
014	DRUM, RR., BRAKE Part #: 43620-HP5-600 Required per assembly: 1 $114.47 $91.29 - + Add to cart
015	SPRING, FR. Part #: 45133-329-000 Required per assembly: 2 $3.91 $3.55 - + Add to cart
016	BOLT, SEALING, (8MM) Part #: 90109-371-000 Required per assembly: 1 $3.73 $3.39 - + Add to cart
017	BOLT, FLANGE, (8X14) Part #: 95701-08014-08 Required per assembly: 2 $2.79 $2.60 - + Add to cart
018	BOLT, STUD, (10X25) Part #: 90151-HA7-670 Required per assembly: 4 $7.47 $6.55 - + Add to cart
019	NUT (10MM) Part #: 90305-HC0-770 Required per assembly: 4 $4.30 $3.91 - + Add to cart
020	GASKET (8MM) Part #: 90471-580-000 Required per assembly: 1 $3.96 - + Add to cart
021	DUST SEAL (17X23X3) Part #: 91206-968-003 Required per assembly: 1 $5.06 $4.60 - + Add to cart

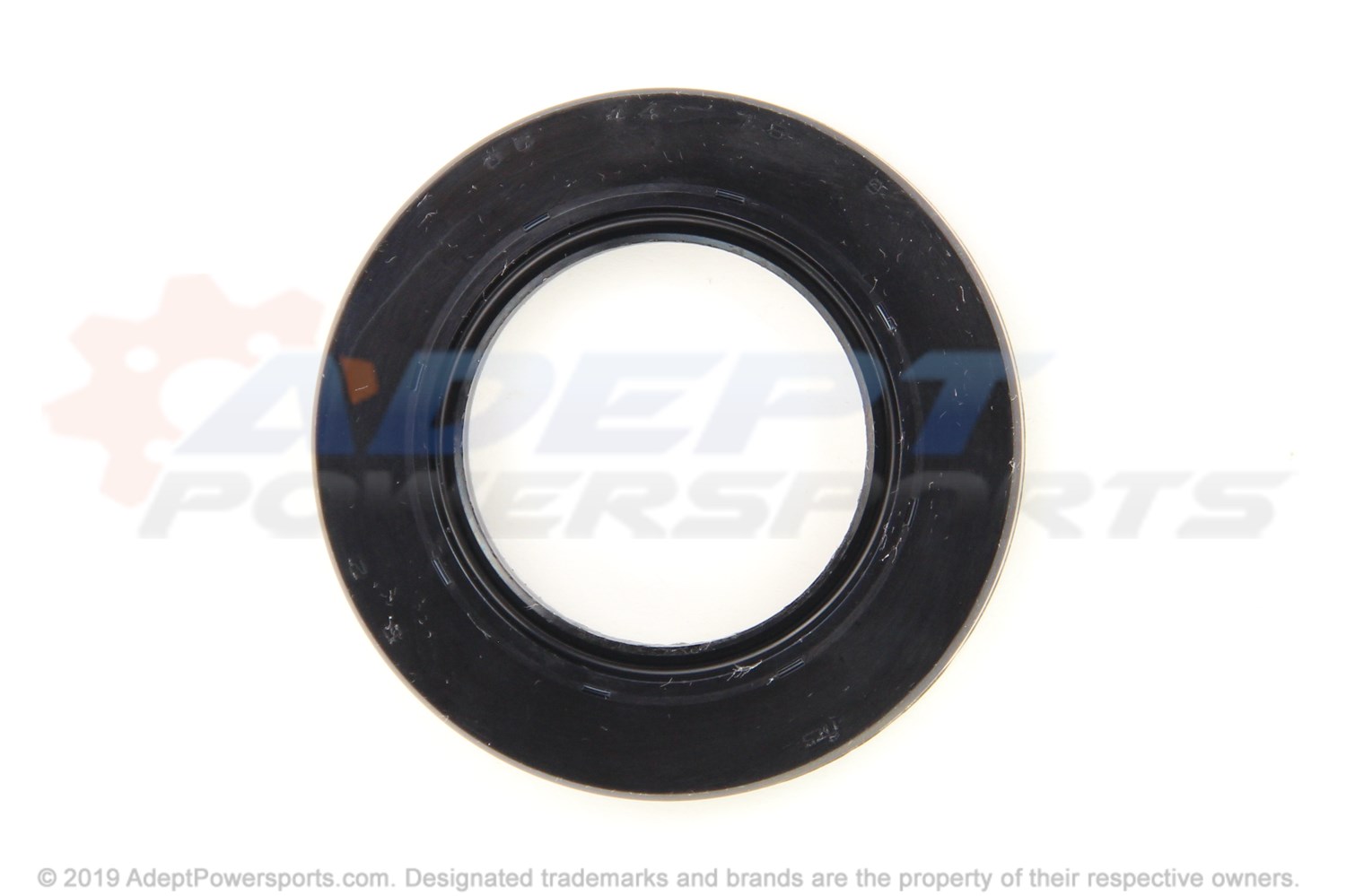

022	DUST SEAL (45X76X19) Part #: 91253-HC4-003 Required per assembly: 1 $18.38 $15.33 - + Add to cart
023	DUST SEAL (44X75X9) Part #: 91256-HP5-601 Required per assembly: 1 $20.67 $17.24 - + Add to cart
024	O-RING (75X3.2) Part #: 91320-HM7-702 Required per assembly: 1 $3.98 $3.62 - + Add to cart
025	RING, SEAL Part #: 91351-HB3-004 Required per assembly: 1 $5.15 $4.68 - + Add to cart
026	O-RING (181X3.1) Part #: 91355-HC4-003 Required per assembly: 1 $18.53 $15.44 - + Add to cart
027	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 1 Note: Sold in multiples of 5 only $2.01 $1.96 - + Add to cart
028	PIN, SPLIT, (2.5X30) Part #: 94201-25300 Required per assembly: 2 $2.07 $1.91 - + Add to cart
029	CIRCLIP (75MM) Part #: 94520-75000 Required per assembly: 1 $5.60 $5.44 - + Add to cart
030	CLIP, TUBE, (C6.5) Part #: 95002-35000 Required per assembly: 1 $1.80 $1.67 - + Add to cart
031	BULK HOSE (3.5X1000) Part #: 95005-35001-30M Required per assembly: 1 $12.69 $11.54 - + Add to cart
032	SPRING, A, BRAKE, ROD Part #: 95014-73100 Required per assembly: 2 $2.32 $2.15 - + Add to cart
033	JOINT, B, BRAKE, ARM Part #: 95015-32001 Required per assembly: 2 $1.98 $1.83 - + Add to cart
034	BOLT, FLANGE, (8X45) Part #: 95701-08045-00 Required per assembly: 1 $2.48 $2.29 - + Add to cart
035	BOLT, FLANGE, (6X16) Part #: 96001-06016-00 Required per assembly: 6 $2.09 $1.93 - + Add to cart

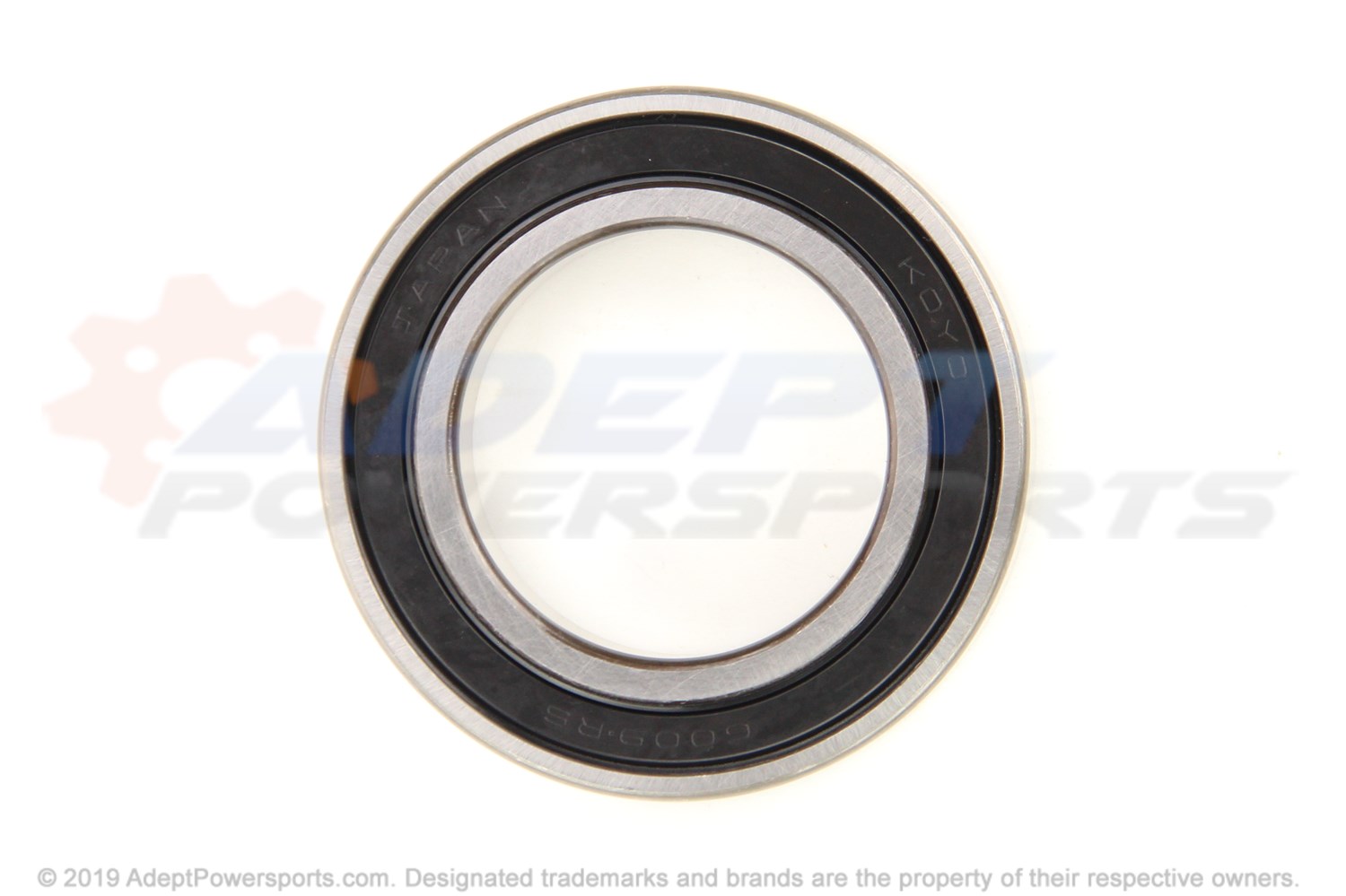

036	BEARING (6990UU) Part #: 96150-60090-10 Required per assembly: 1 $67.78 $56.51 - + Add to cart
